Dayton Audio RS52AN-8

€72.82 *

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • da-rs52an-8
The Dayton Reference Series dome midrange delivers excellent off-axis response and midrange... more
Product information "Dayton Audio RS52AN-8"

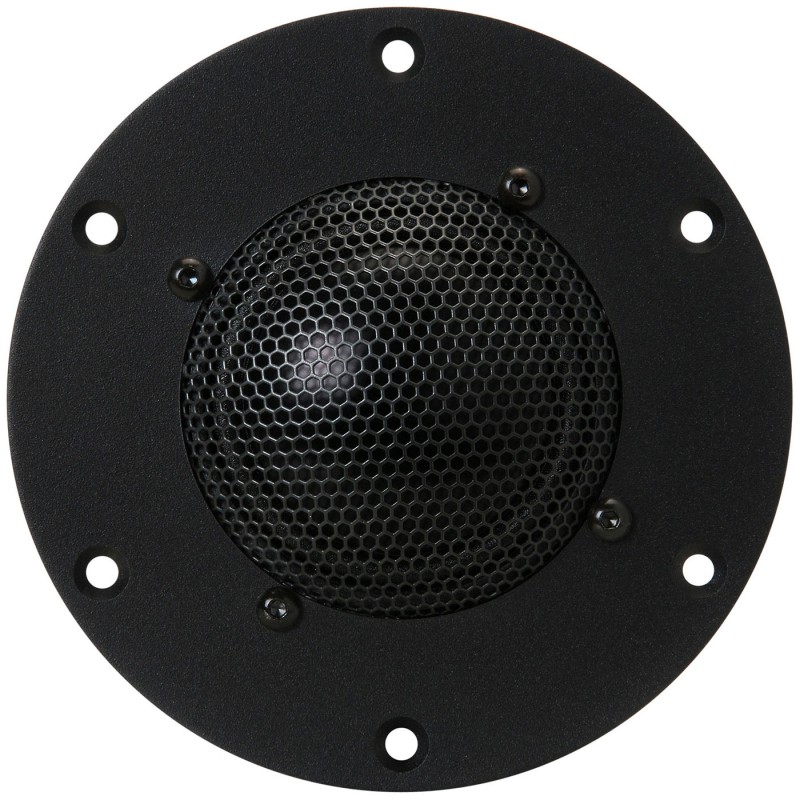

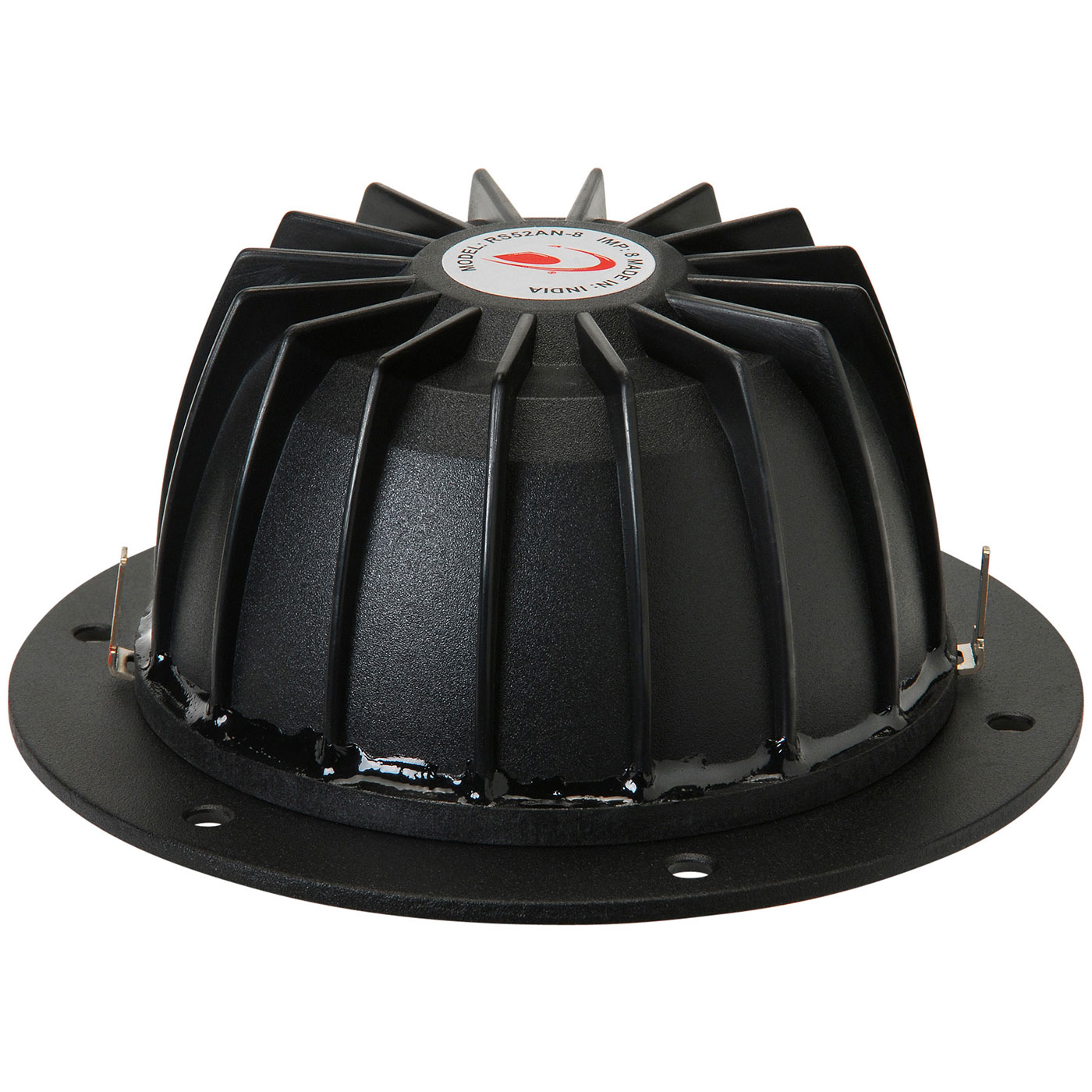

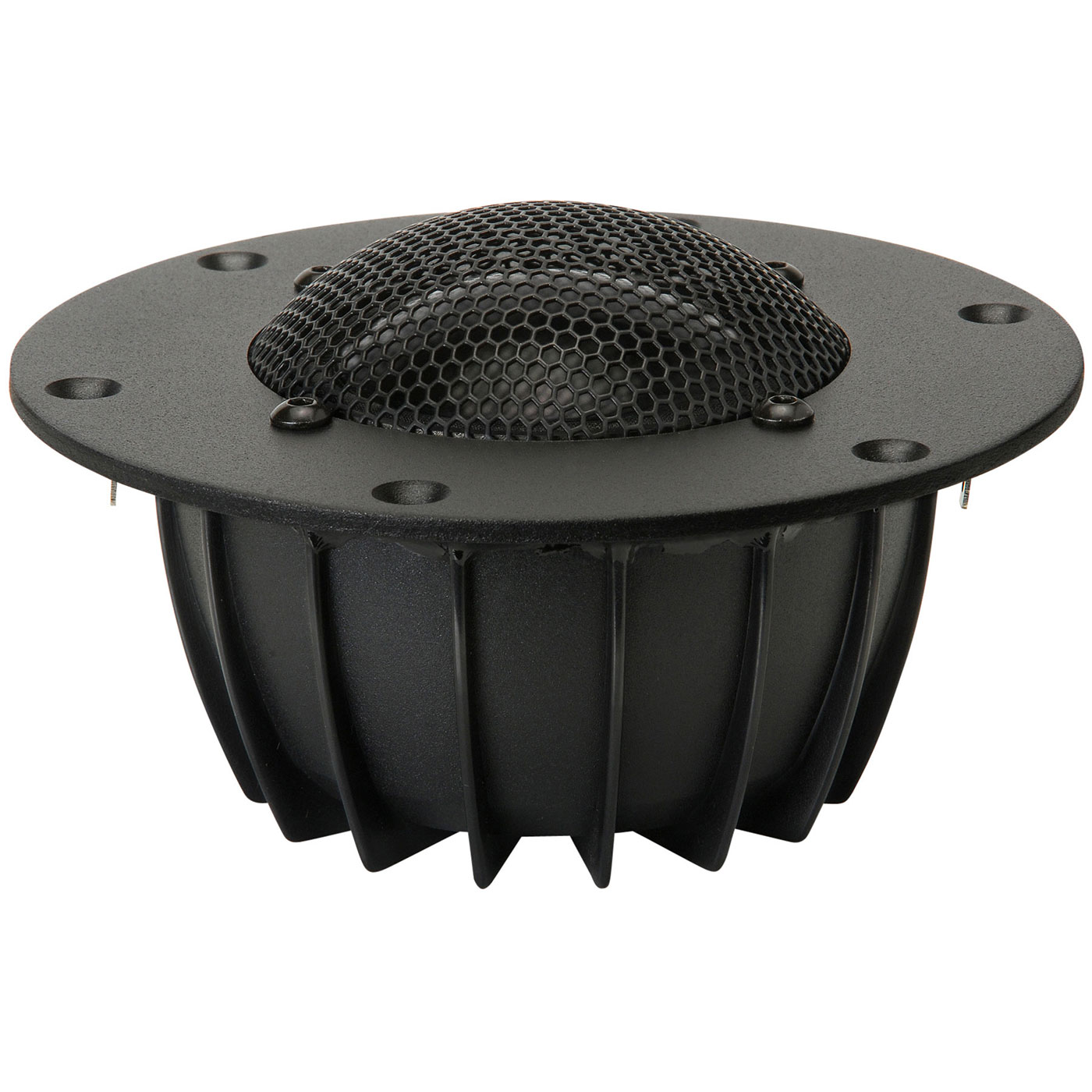

The Dayton Reference Series dome midrange delivers excellent off-axis response and midrange performance. Its black anodized 2" diaphragm is extremely linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical two-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance driver.



Product Highlights

• Large damped rear chamber for low resonance point
• 2" Aluminum diaphragm for good clarity and dispersion
• Neodymium magnet minimizes stray magnetic field
• Copper clad motor reduces distortion for transparent sound



Specifications

  • power handling (continuous/programme) = 60 W

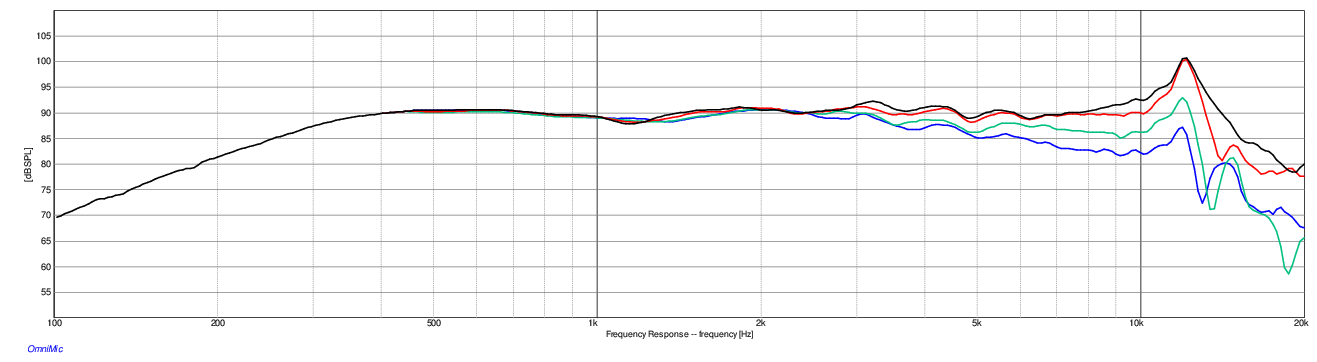

  • frequency range = 500-14000 Hz
  • resonance frequency fs = 341 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,4 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 26,4 cm2
  • total Q factor Qts = 0,86 (Qms=3,16, Qes=1,18)
  • voice coil diameter = 52 mm
  • mounting diameter d = 100,0 mm
  • overall diameter d = 130,0 mm
  • mounting depth (not countersunk) t = 54,0 mm
