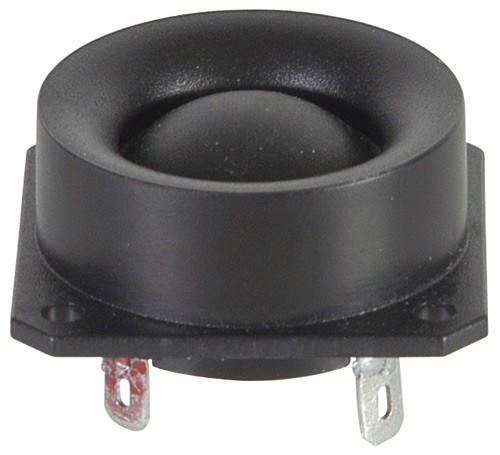

Dayton Audio ND20FB-4

€14.84 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • da-275-035
This versatile tweeter is a huge step above the average "budget" tweeter. It has the... more
Product information "Dayton Audio ND20FB-4"
This versatile tweeter is a huge step above the average "budget" tweeter. It has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Or, use it in an A-pillar in your car as a great inexpensive component tweeter. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!



Product Highlights

• Compact neodymium motors have low stray field
• Ferrofluid enhances power handling and helps damp resonance
• Rear-mount design minimizes housing size
• Center-to-center spacing as low as 1-1/2"
• Great top-end air and sparkle



Specifications

  • power handling (continuous/programme) = 30 W

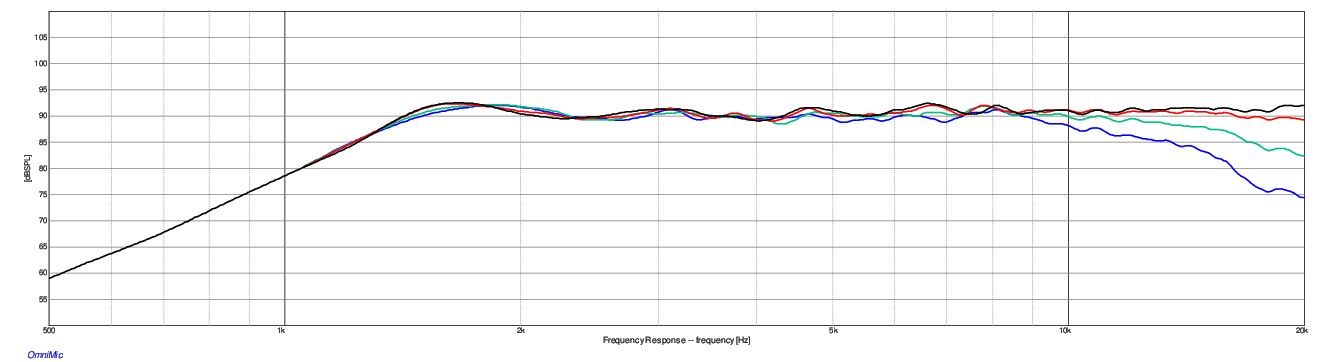

  • frequency range = 3500-25000 Hz
  • resonance frequency fs = 1700 Hz

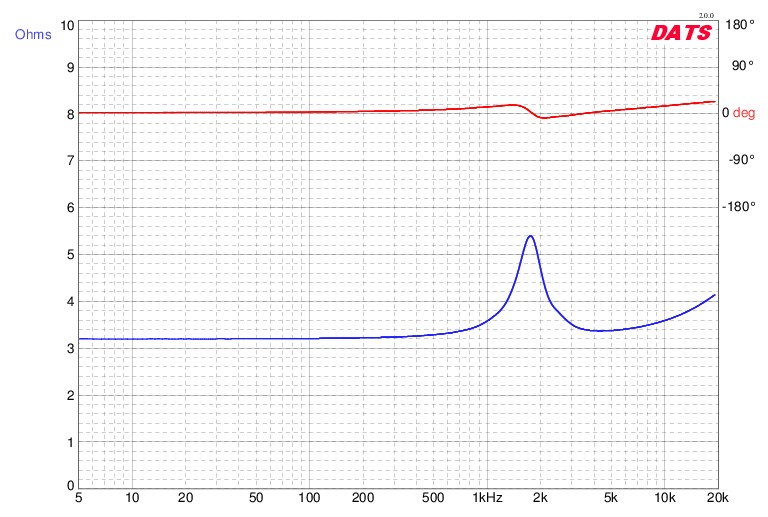

  • impedance R = 4 Ohm
  • sound pressure level SPL = 93,0 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,22 mH
  • voice coil diameter = 19 mm
