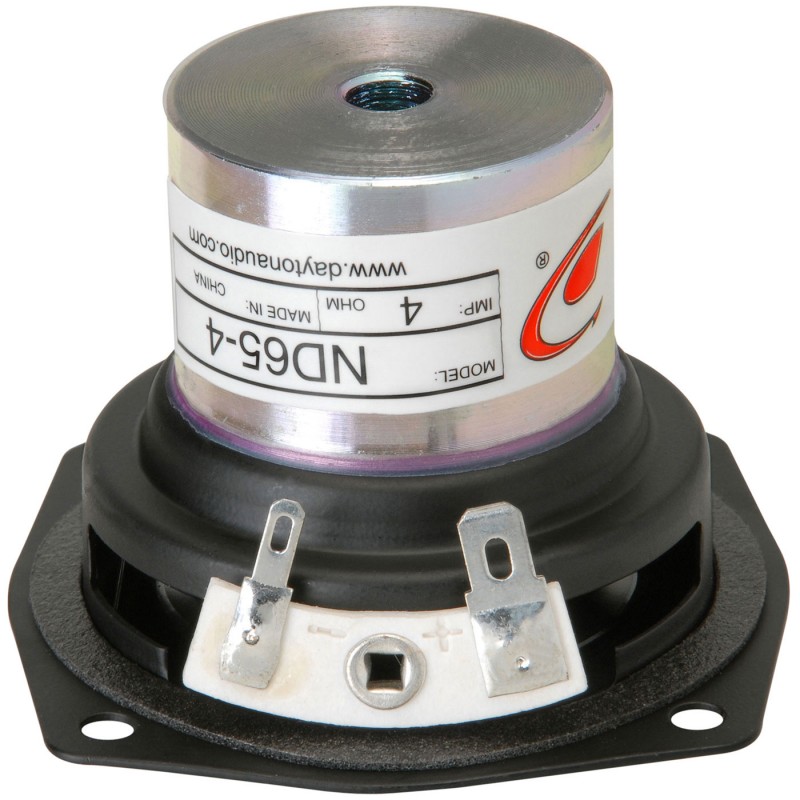

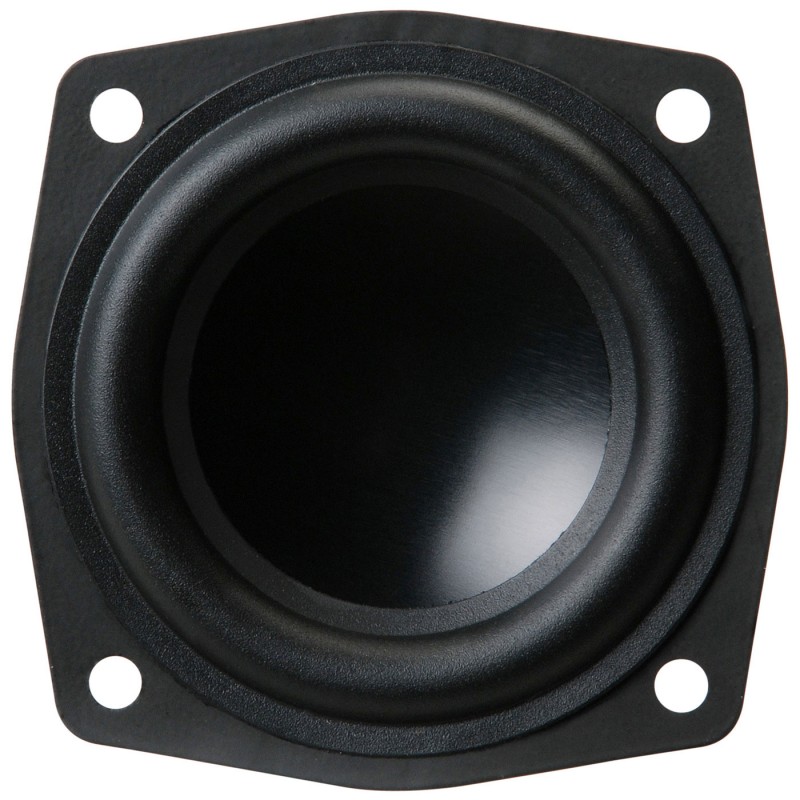

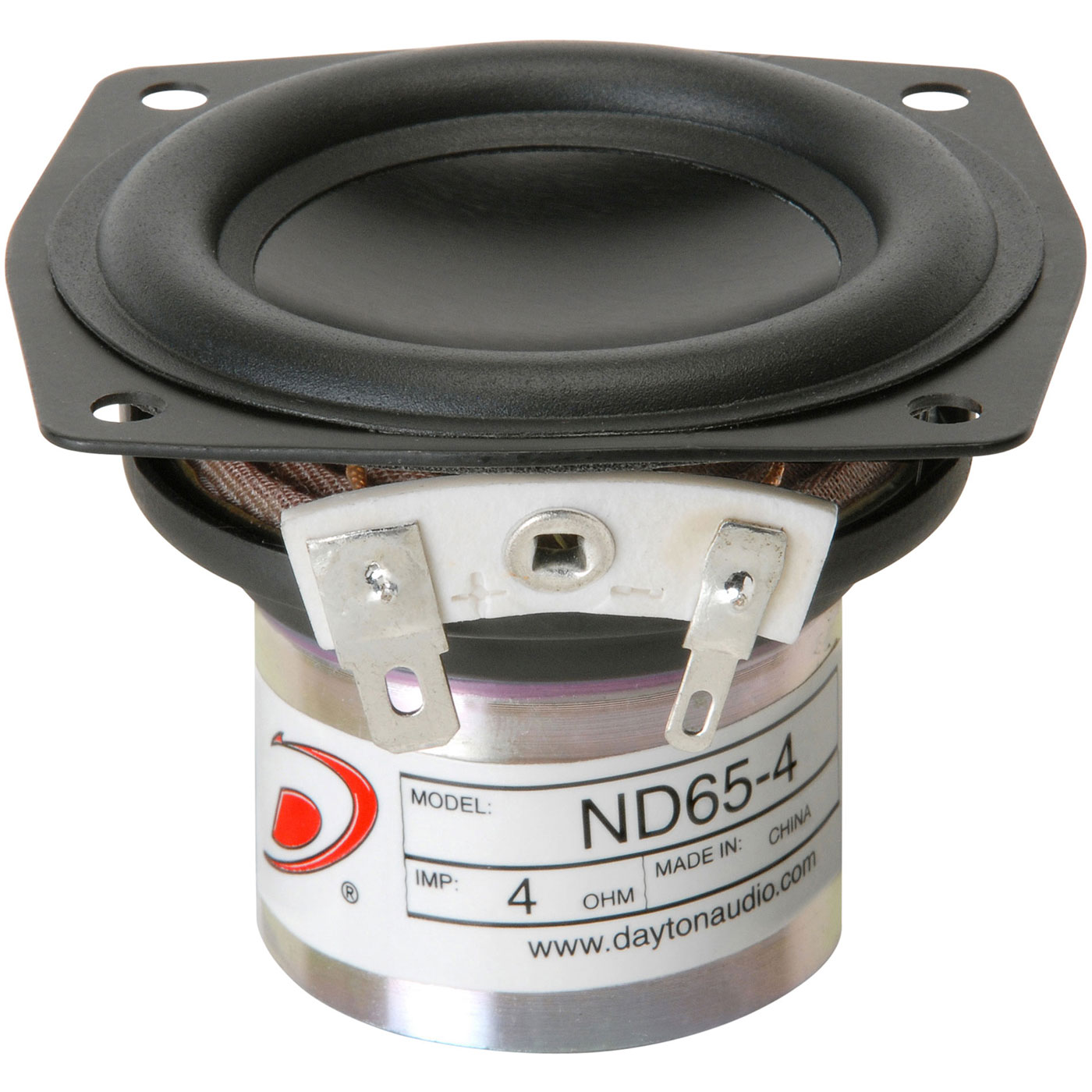

Dayton Audio ND65-4

€28.75 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • da-290-204
Dayton Audio's compact ND65-4 aluminum cone driver demonstrates the latest advances in... more
Product information "Dayton Audio ND65-4"
Dayton Audio's compact ND65-4 aluminum cone driver demonstrates the latest advances in high-excursion design processes.
An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.


Product Highlights

• Rubber-edged aluminum alloy cone
• Large excursion capability
• Self-shielded Neo-Balanced motor structure
• 4-layer underhung voice coil with polyimide former
• High power handling



ND65-4 Specifications

Impedance 4 ohms

Re 3.5 ohms

Le 0.44 mH @1 kHz

Fs 89.5 Hz

Qms 5.56

Qes 0.68

Qts 0.61

Mms 2.5g

Cms 1.26 mm/N

Sd 15.6 cm²

Vd 5.4 cm³

BL 2.68 Tm

Vas 0.53 liters

Xmax 3.5 mm

VC Diameter 19 mm

SPL 83 dB @ 2.83V/1m

RMS Power Handling 15 watts

Usable Frequency Range (Hz) 85 - 20,000 Hz
