Fountek NeoCD3.5H

Fountek
Preview: Fountek NeoCD3.5H Preview: Fountek NeoCD3.5H front Preview: Fountek NeoCD3.5H back Preview: Fountek NeoCD3.5H charts Preview: Fountek NeoCD3.5H dimensions

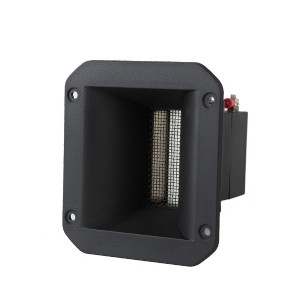

Fountek NeoCD3.5H

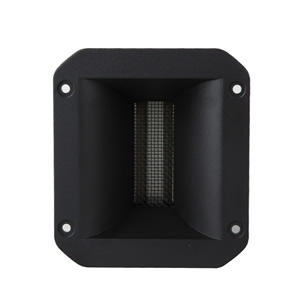

Fountek NeoCD3.5H front

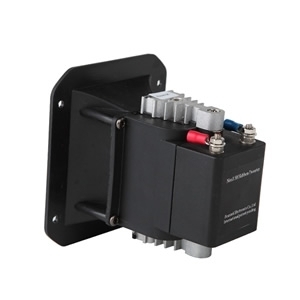

Fountek NeoCD3.5H back

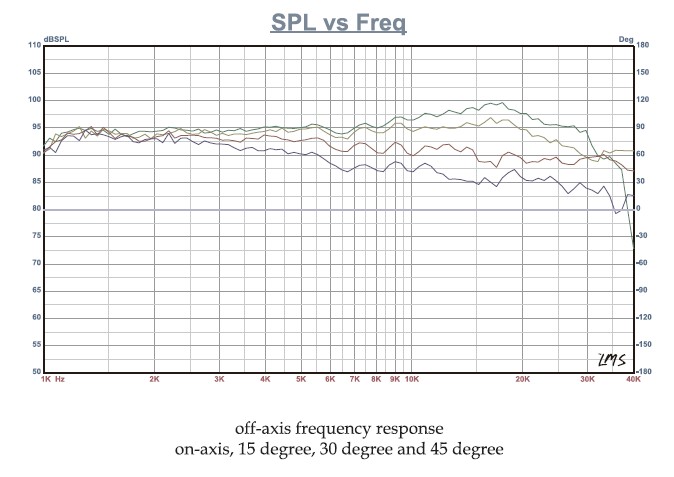

Fountek NeoCD3.5H charts

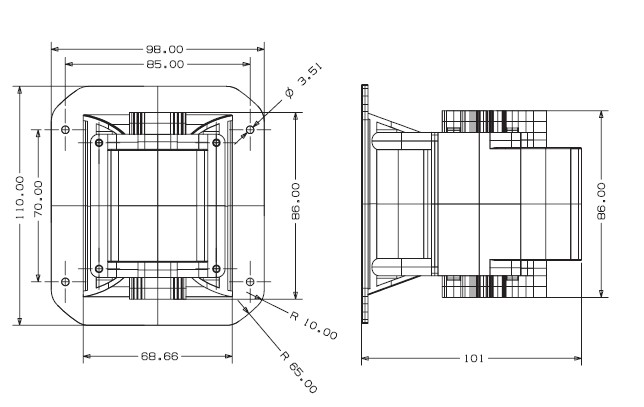

Fountek NeoCD3.5H dimensions

€123.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 1420056
Description Evaluations 0
Description
strong Neodymium magnet ... more
Close menu
Product information "Fountek NeoCD3.5H"
  • strong Neodymium magnet
  • 3 inch enforced sandwich diaphragm
  • build-in impedance convertor
  • low distortion, very fast transition



Specifications

  • power handling (continuous/programme) = 12/25 W
  • frequency range = 2000-40000 Hz
  • impedance R = 7 Ohm
  • sound pressure level SPL = 95.5 dB (2,83V; 1m)
  • DC resistance Re = 0,02 Ohm
  • effective piston radiating area Sd = 5.40 cm2
  • effective mechanical mass incl. air load mms = 0,10 g
  • mounting depth (not countersunk) t = 98 mm
  • mass m = 0,41 kg
