SB Acoustics SB19ST-C000-4

SB Acoustics
Preview: SB Acoustics SB19ST-C000-4 Preview: SB Acoustics SB19ST-C000-4 graphs Preview: SB Acoustics SB19ST-C000-4 parameter Preview: SB Acoustics SB19ST-C000-4 dimensions

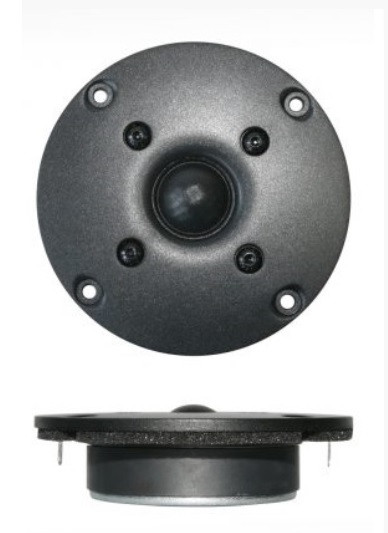

SB Acoustics SB19ST-C000-4

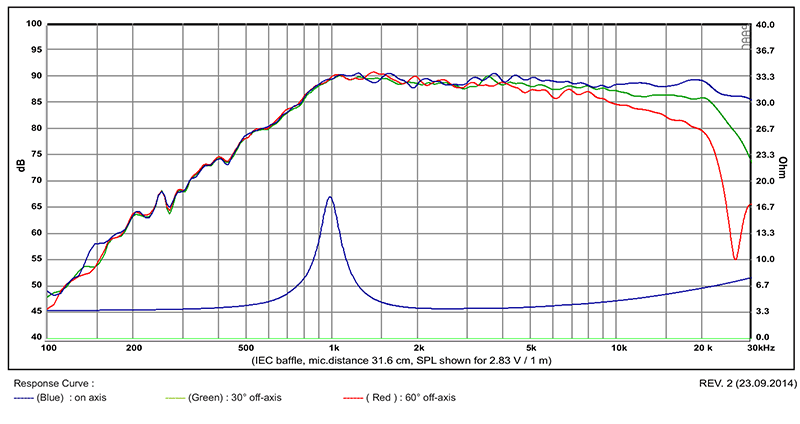

SB Acoustics SB19ST-C000-4 graphs

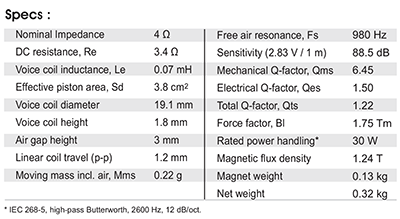

SB Acoustics SB19ST-C000-4 parameter

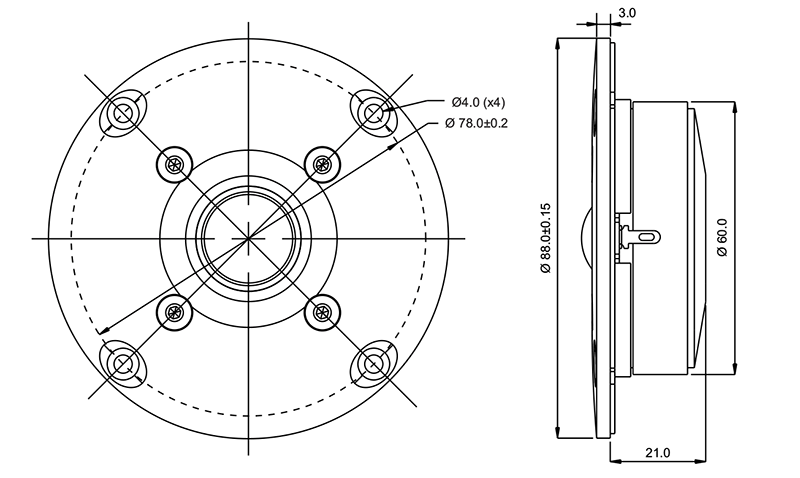

SB Acoustics SB19ST-C000-4 dimensions

€24.75 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • Order number: 1382351
Description Evaluations 0
Description
SB Acoustics SB19ST-C000-4 0.75" Tweeter Optimized damping in pole cavity to eliminate... more
Close menu
Product information "SB Acoustics SB19ST-C000-4"

SB Acoustics SB19ST-C000-4 0.75" Tweeter

  • Optimized damping in pole cavity to eliminate internal reflection
  • Fine weave soft fabric dome for smooth frequency response
  • Saturation controlled motor system for reduced distortion
  • CCAW voice coil for low moving mass
  • Long life silver lead wires



Specifications

  • power handling (continuous/programme) = 30 W
  • frequency range = 1000-40000 Hz
  • resonance frequency fs = 980 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88.5 dB (2,83V; 1m)
  • DC resistance Re = 3.4 Ohm
  • force factor BL = 1.75 N/A
  • voice coil inductance L = 0.07 mH
  • effective piston radiating area Sd = 3.8 cm2
  • effective mechanical mass incl. air load mms = 0,22 g
  • total Q factor Qts = 1.22 (Qms=6.45, Qes=1.50)
  • voice coil diameter = 19.1 mm
  • mounting diameter d = 60 mm
  • overall diameter d = 88 mm
  • mounting depth (not countersunk) t = 21 mm
