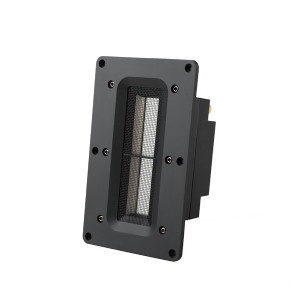

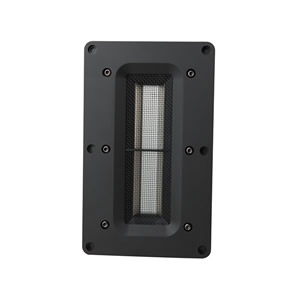

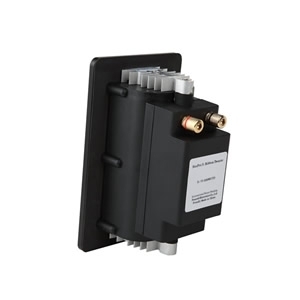

Fountek NeoPro5i

€308.57 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1420058
strong Neodymium magnet ... more
Product information "Fountek NeoPro5i"
  • strong Neodymium magnet
  • 5 inch enforced sandwich diaphragm
  • high power, high sensitivity
  • build-in impedance convertor
  • low distortion, very fast transition



Specifications

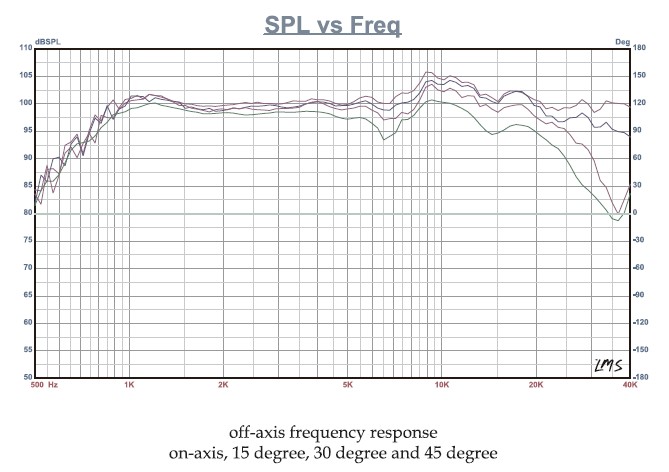

  • frequency range = 650-40000 Hz
  • resonance frequency fs = 200 Hz
  • impedance R = 7 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,15 Ohm
  • effective piston radiating area Sd = 21,75 cm2
  • effective mechanical mass incl. air load mms = 0,088 g

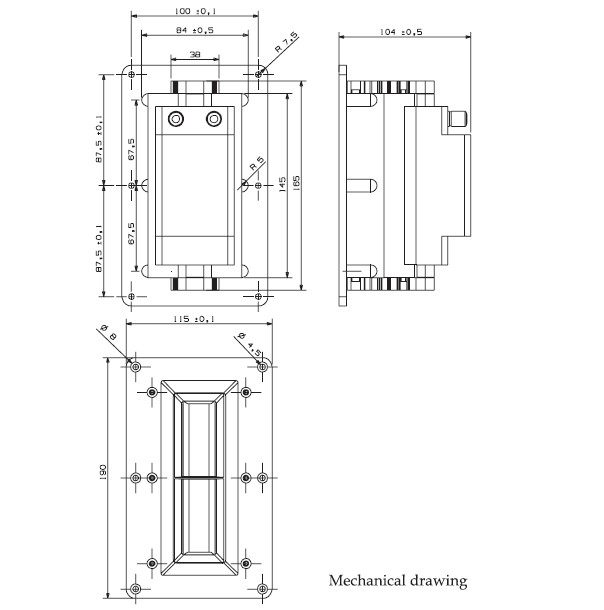

  • overall diameter d = 190 x 115 mm
  • mounting depth (not countersunk) t = 99 mm
