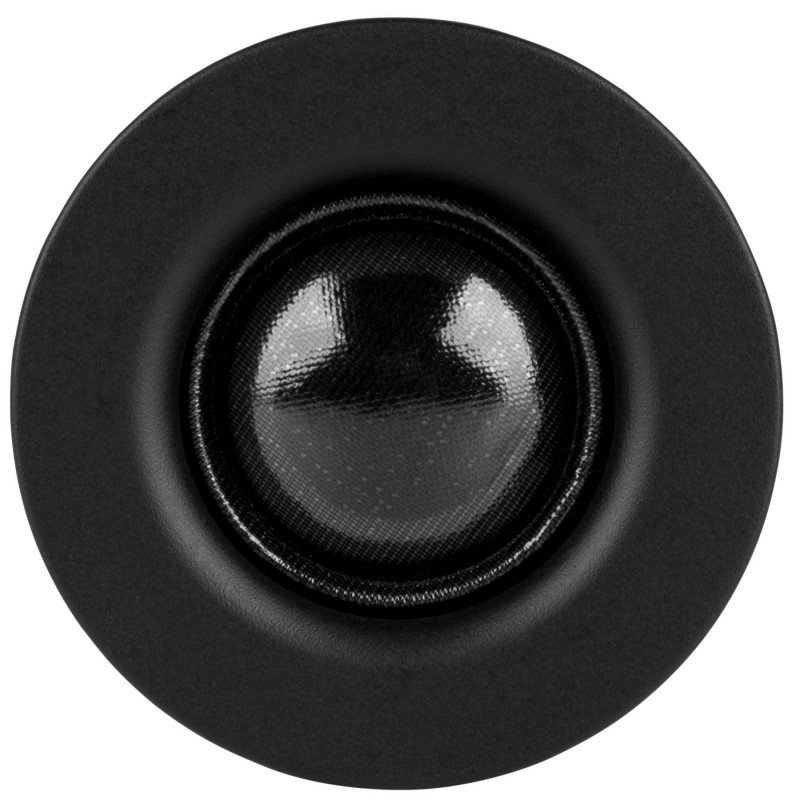

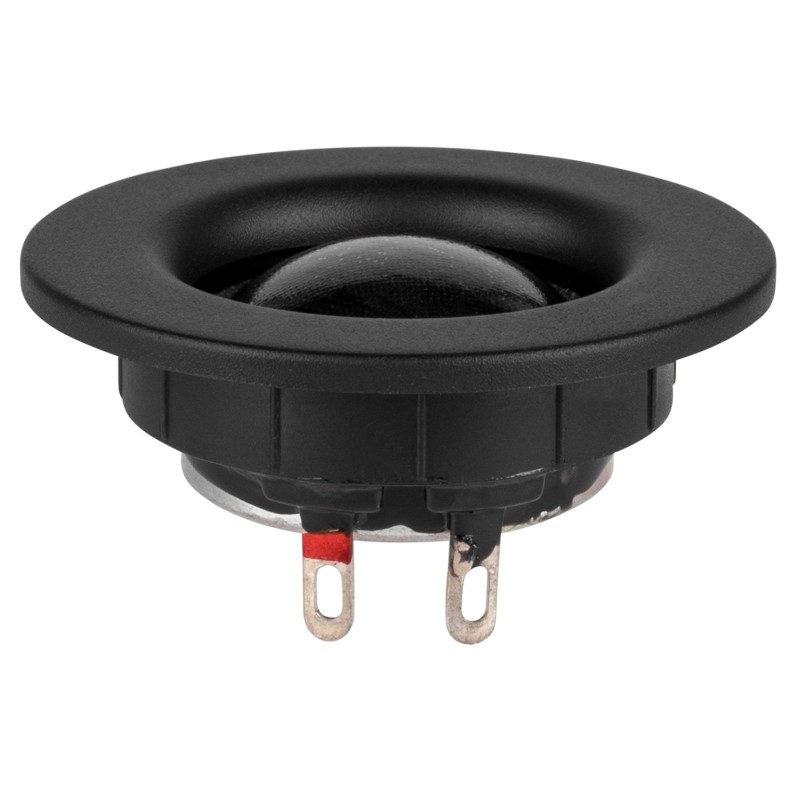

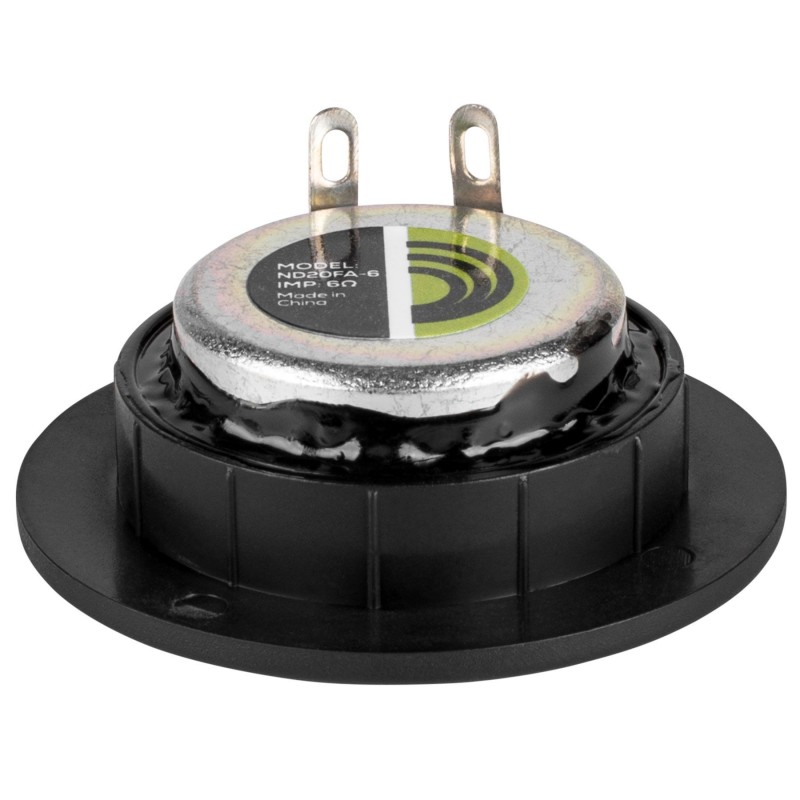

Dayton Audio ND20FA-6

€14.84 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • da-275-030
This versatile tweeter is a huge step above the average "budget" tweeter. It has the... more
Product information "Dayton Audio ND20FA-6"
This versatile tweeter is a huge step above the average "budget" tweeter. It has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Or, use it in an A-pillar in your car as a great inexpensive component tweeter. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!



Product Highlights

• Compact neodymium motors have low stray field
• Ferrofluid enhances power handling and helps damp resonance
• Front-mount pressfit design
• Center-to-center spacing as low as 1-3/4"
• Extremely flat and extended response



Specifications

  • power handling (continuous/programme) = 15 W

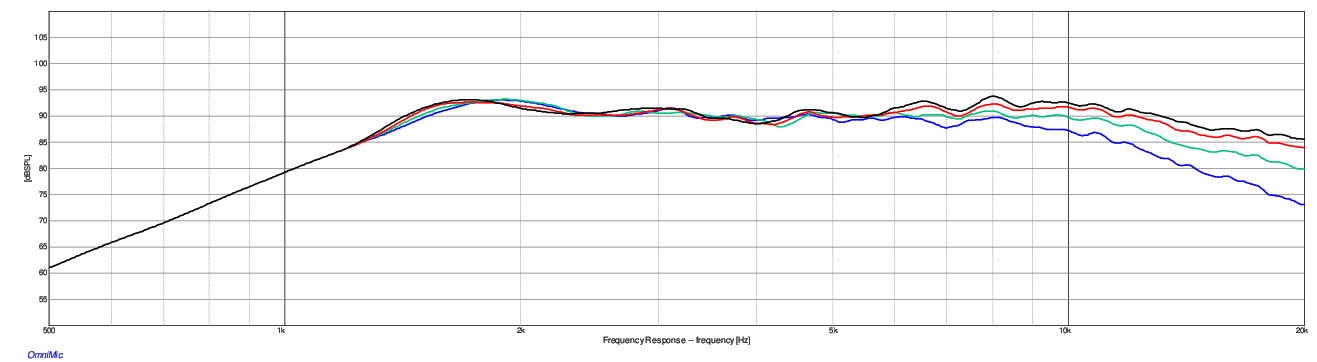

  • frequency range = 3500-25000 Hz
  • resonance frequency fs = 2005,0 Hz

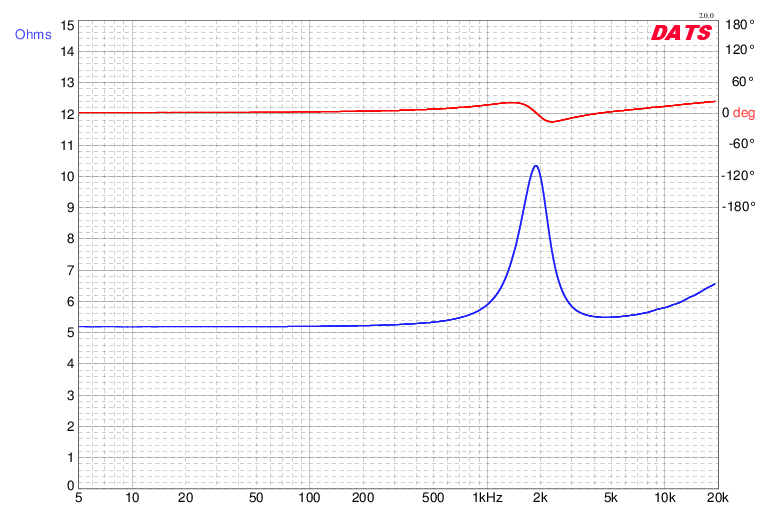

  • impedance R = 6 Ohm
  • sound pressure level SPL = 90,0 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • voice coil inductance L = 0,22 mH
  • effective piston radiating area Sd = 2,8 cm2
  • total Q factor Qts = 0,99 (Qms=1,50, Qes=2,88)
  • voice coil diameter = 19 mm

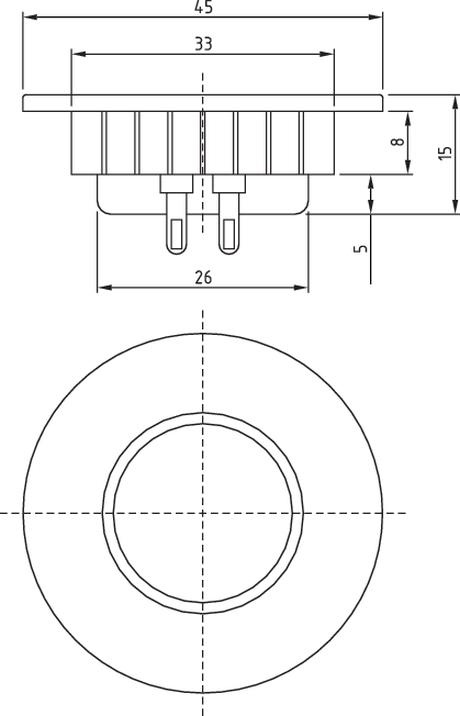

  • mounting diameter d = 33 mm
  • overall diameter d = 45 mm
  • mounting depth (not countersunk) t = 15 mm
