Monacor DT-101SK

Monacor DT-101SK

Monacor DT-101SK

€27.31 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

Order number: SW10137

Hi-fi dome tweeter, 30 W, 8 Ω Silk dome with optimum damping Attached,... more

Product information "Monacor DT-101SK"

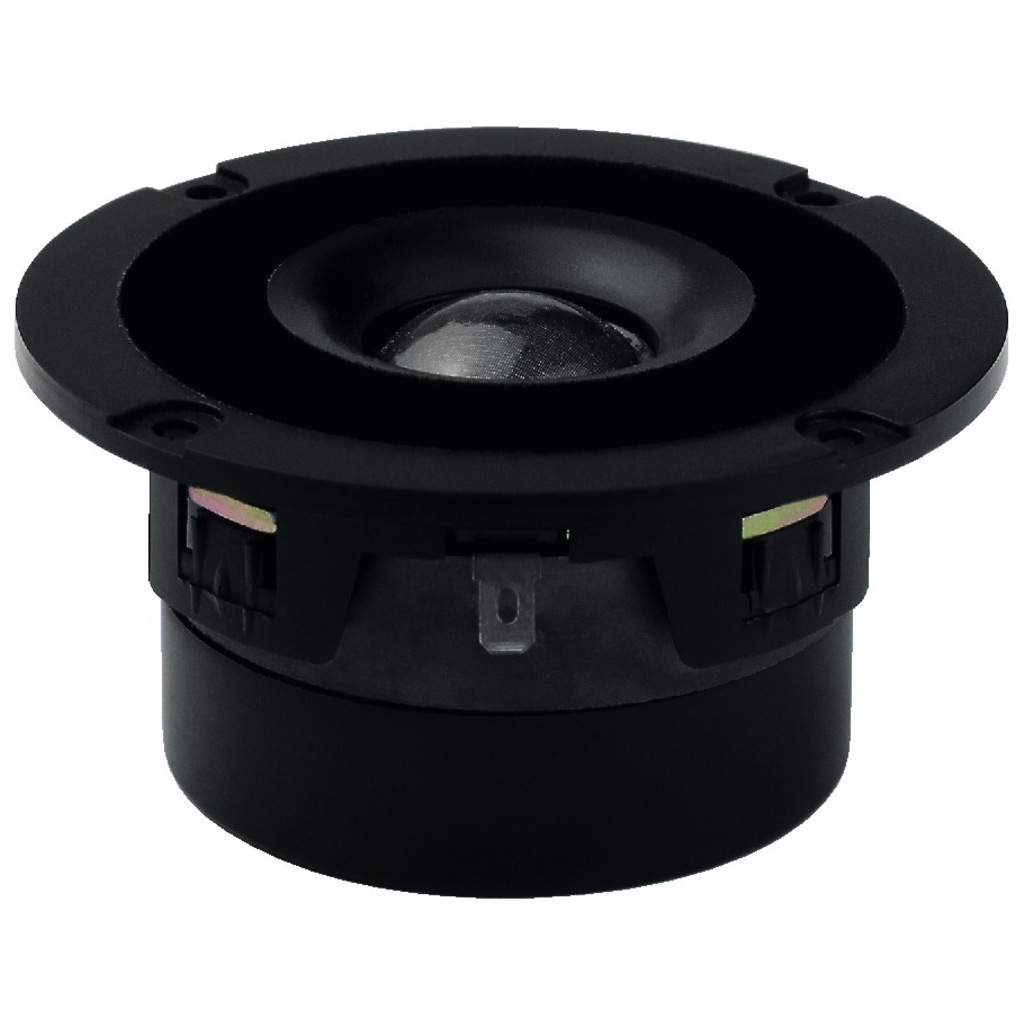

Hi-fi dome tweeter, 30 W, 8 Ω

Silk dome with optimum damping
Attached, damped volume
High linearity up to the brilliance frequency range
Very good efficiency
High-resolution sound
For hi-fi applications of high requirements
25,4 mm dome tweeter with silk dome.

Specifications

power handling (continuous/programme) = 30/50 W

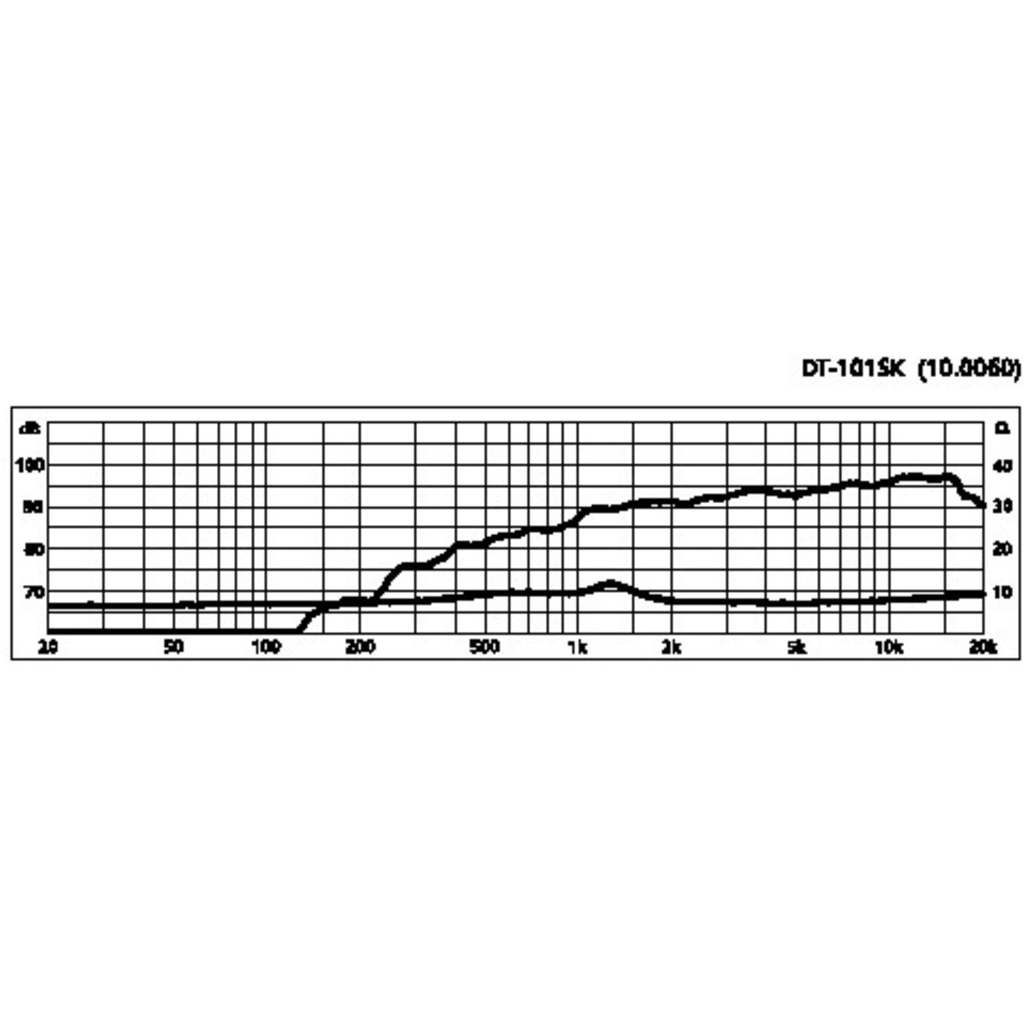

frequency range = 2000-22000 Hz
resonance frequency fs = 900 Hz
impedance R = 8 Ohm
sound pressure level SPL = 92 dB (2,83V; 1m)
voice coil diameter = 25,4 mm

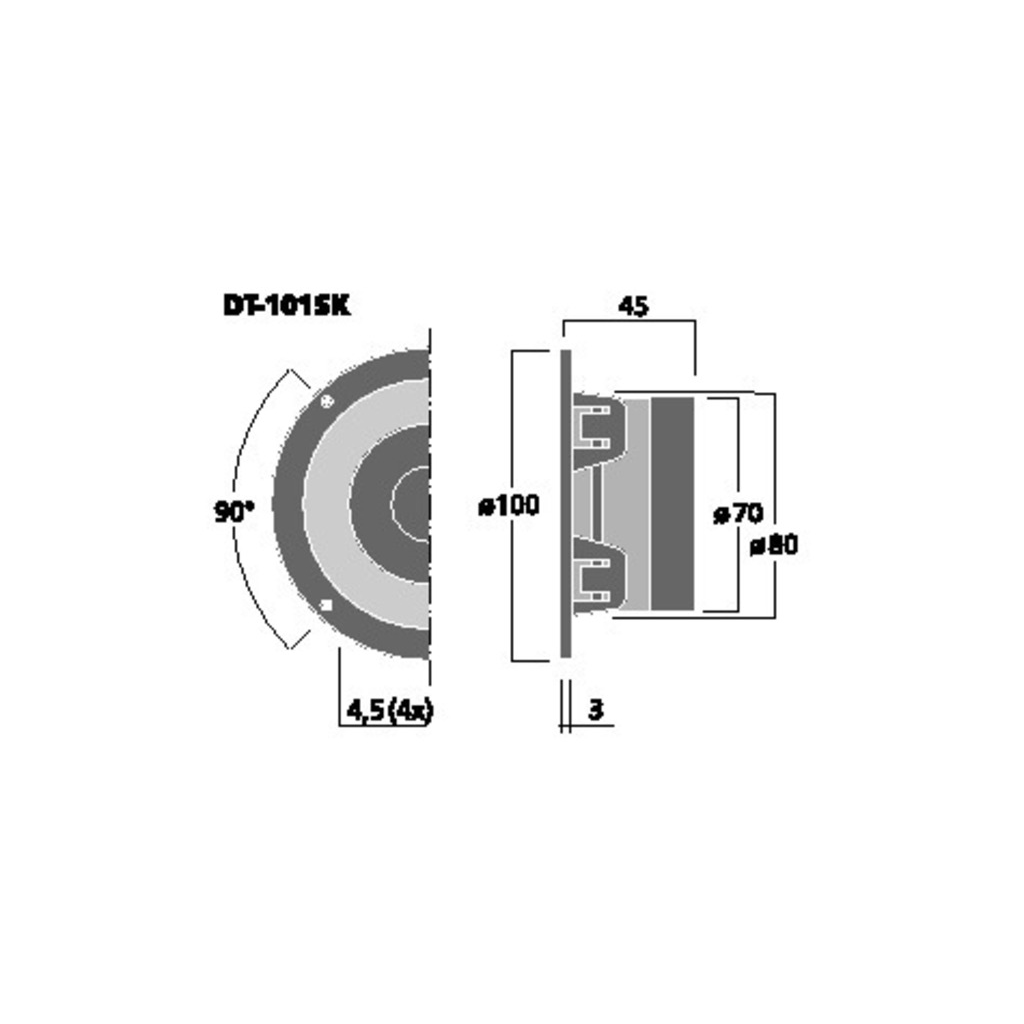

mounting diameter d = 80 mm
overall diameter d = 100 mm
mounting depth (not countersunk) t = 46 mm
mass m = 0,5 kg
