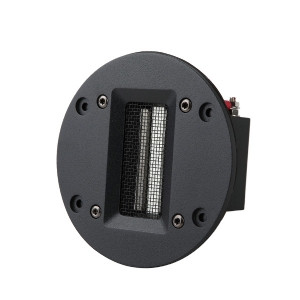

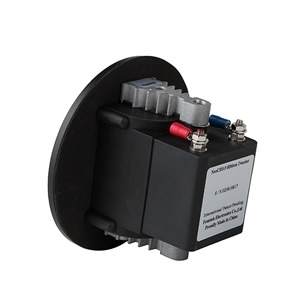

Fountek NeoCD3.0

€143.60 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 1420054
strong Neodymium magnet ... more
Product information "Fountek NeoCD3.0"
  • strong Neodymium magnet
  • 3 inch enforced sandwich diaphragm
  • build-in impedance convertor
  • low distortion, very fast transition



Specifications

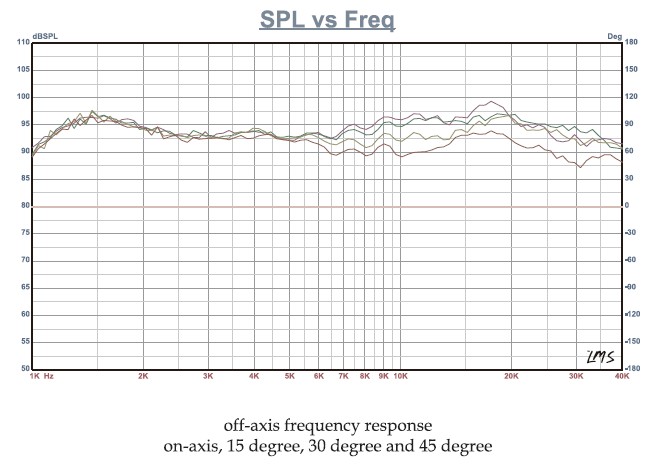

  • frequency range = 1400-40000 Hz
  • resonance frequency fs = 400 Hz
  • impedance R = 7 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 7 Ohm
  • effective piston radiating area Sd = 4,8 cm2
  • effective mechanical mass incl. air load mms = 0,018 g

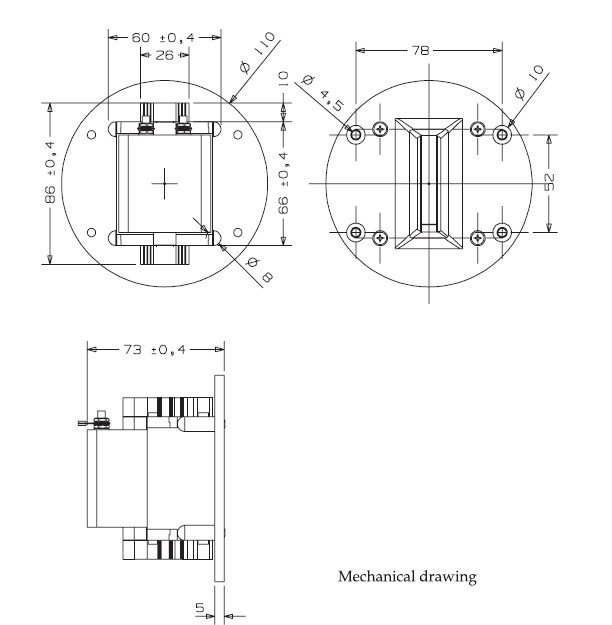

  • mounting diameter d = 90 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 68 mm
