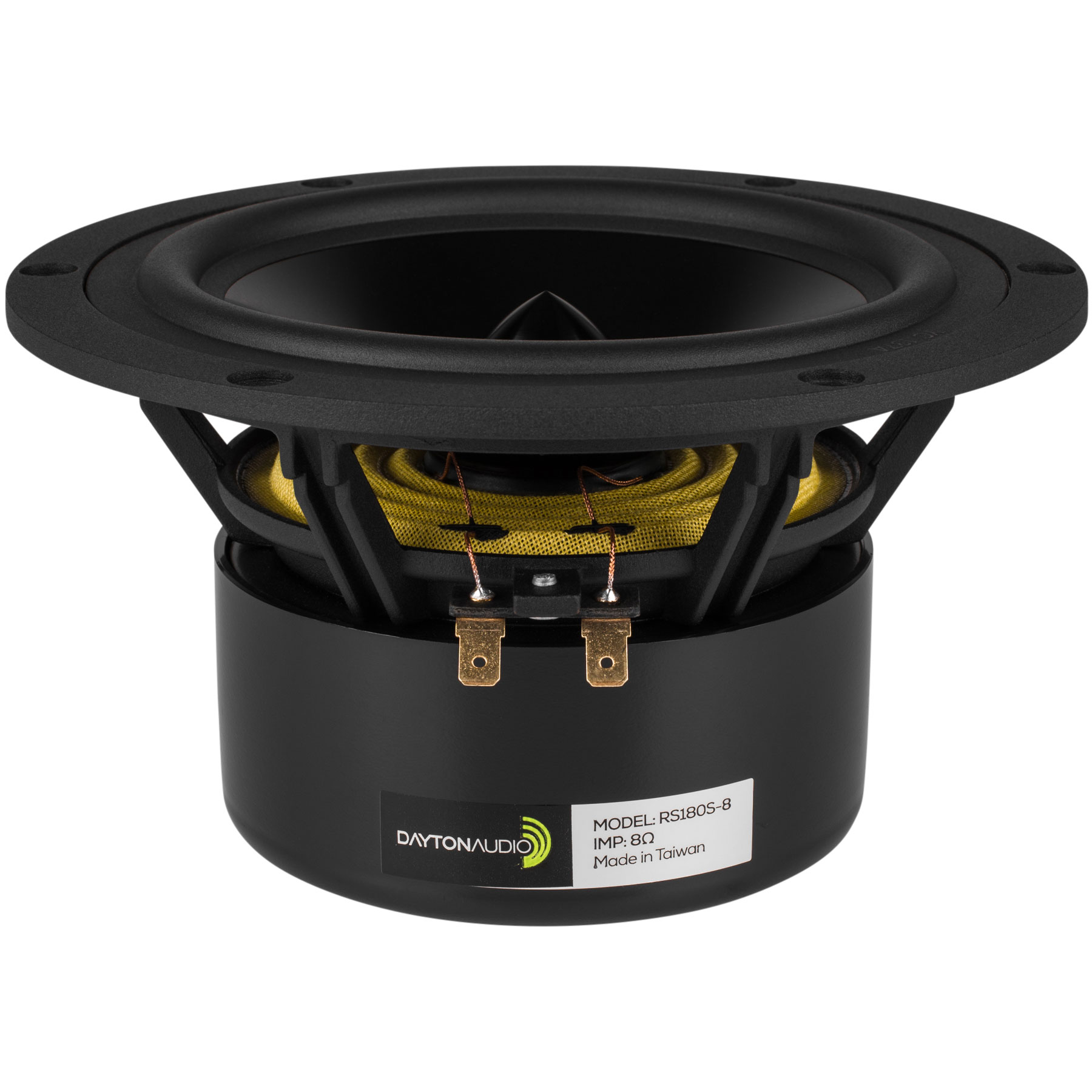

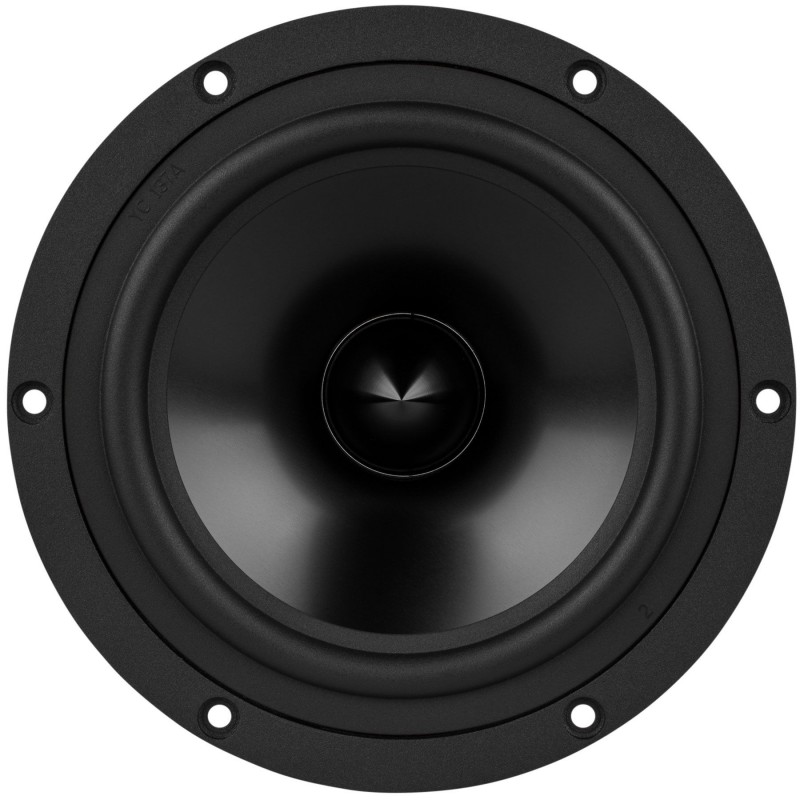

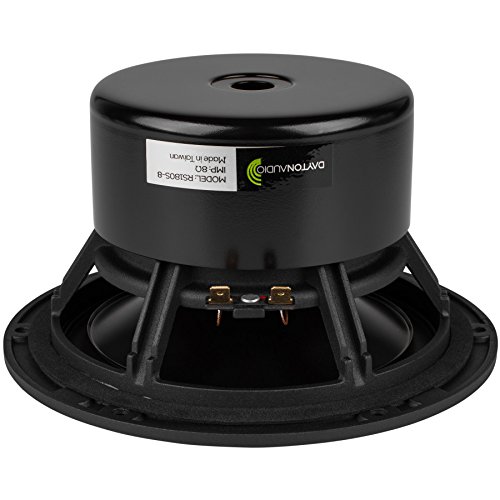

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.
Specifications
power handling (continuous/programme) = 60 W

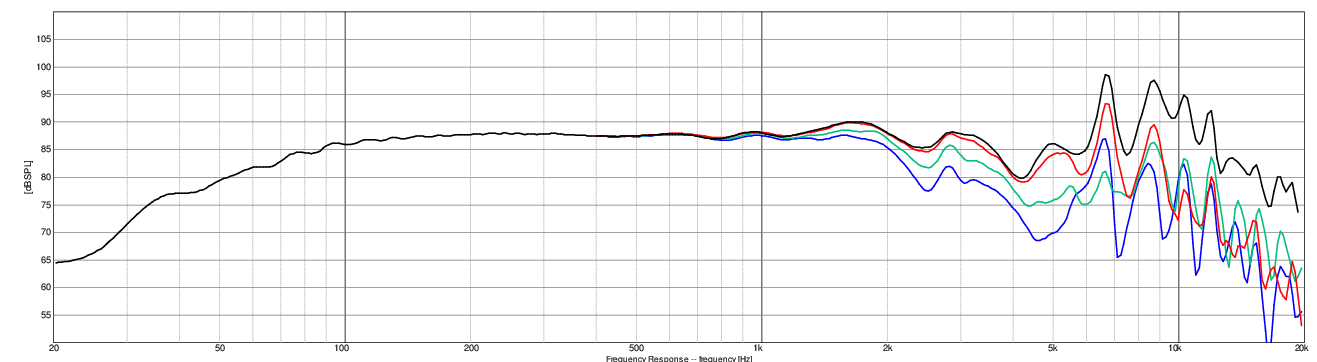

frequency range = 40-2200 Hz
resonance frequency fs = 43,7 Hz

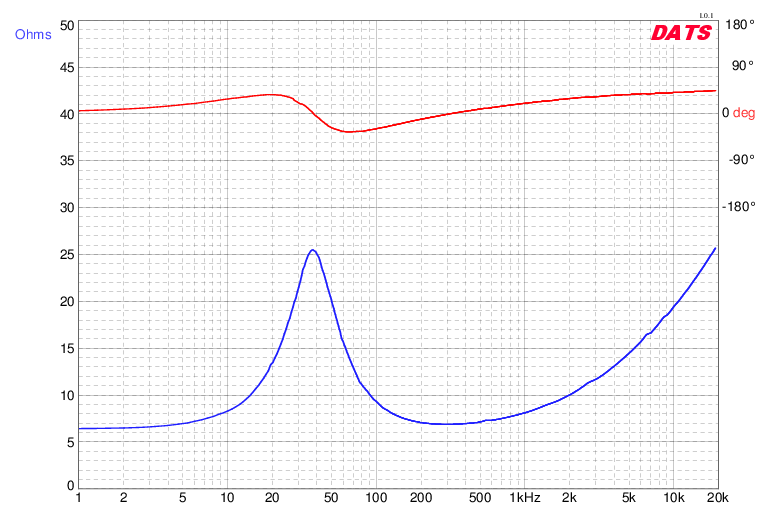

impedance R = 8 Ohm
sound pressure level SPL = 87,6 dB (2,83V; 1m)
DC resistance Re = 6,4 Ohm
force factor BL = 6,42 N/A
voice coil inductance L = 0,40 mH
effective piston radiating area Sd = 124,7 cm2
effective mechanical mass incl. air load mms = 13,48 g
equivalent volume of compliance Vas = 21,45 l
total Q factor Qts = 0,44 (Qms=1,91, Qes=0,58)
voice coil diameter = 38 mm
maximum peak linear excursion vibration xlin = +/- 6 mm
