- Order number: 1420052
strong Neodymium magnet ... more

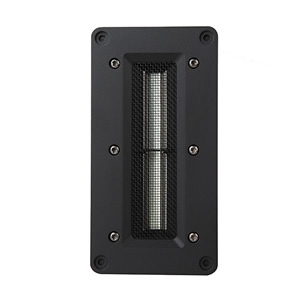

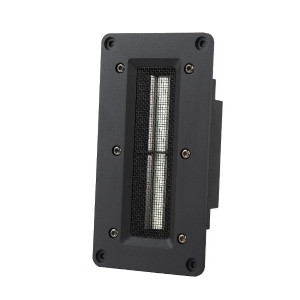

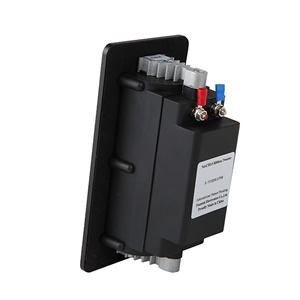

Product information "Fountek NeoCD2.0"
- strong Neodymium magnet
- 5 inch enforced sandwich diaphragm
- build-in impedance convertor
- low distortion, very fast transition
Specificatiuons
- frequency range = 1200-40000 Hz
- resonance frequency fs = 350 Hz
- impedance R = 7 Ohm
- sound pressure level SPL = 92 dB (2,83V; 1m)
- DC resistance Re = 7 Ohm
- effective piston radiating area Sd = 9,6 cm2
- effective mechanical mass incl. air load mms = 0,034 g

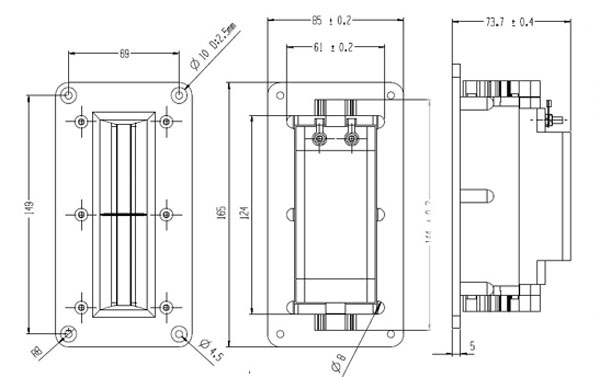

- overall diameter d = 164 x 70,4 mm
- mounting depth (not countersunk) t = 70 mm
