Scan-Speak D7608/9200.00

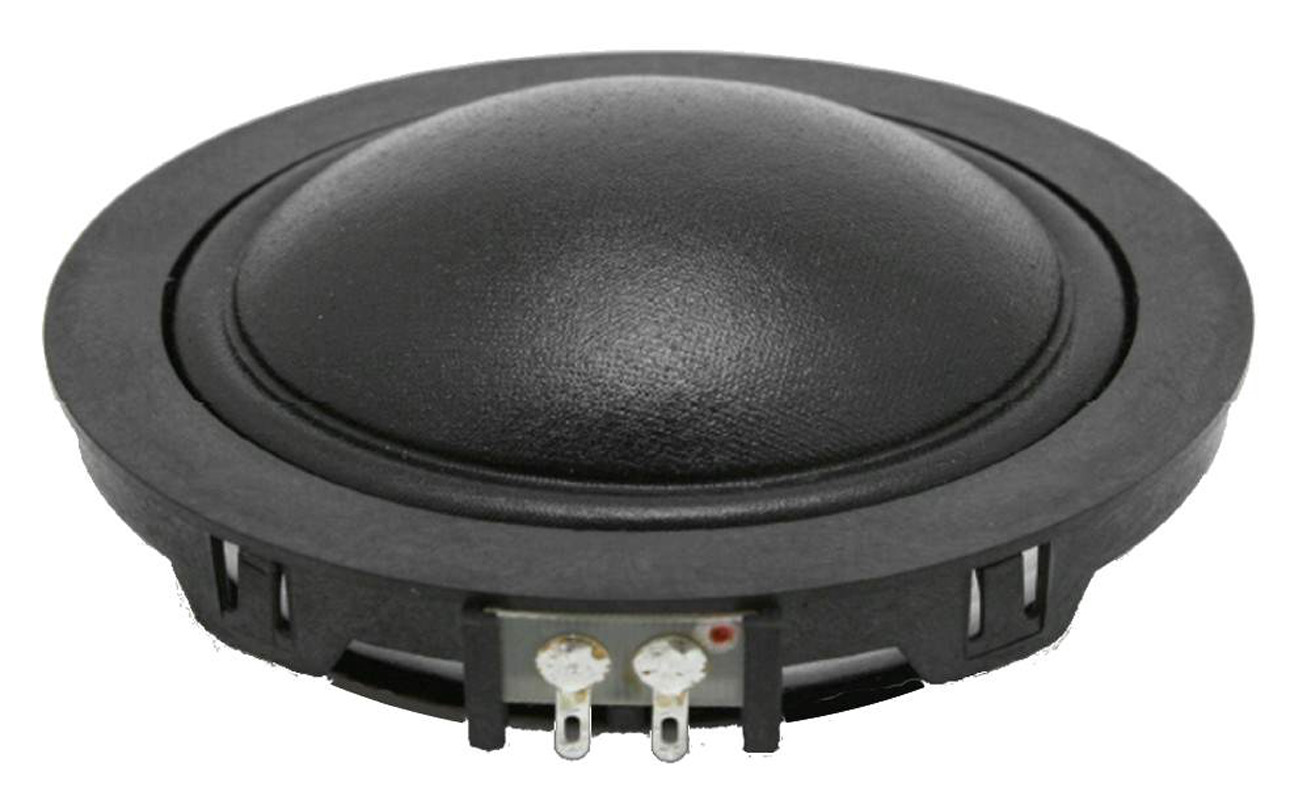

Designed for rear mounting, the D7608-920000 is a 76mm soft dome midrange, with low moving mass, low distortion and excellent linear response.

Can be used in free air, but ideally should be used inconjuntion with a 2 litre enclosure.

Specifications

• power handling (continuous/programme) = 80 W

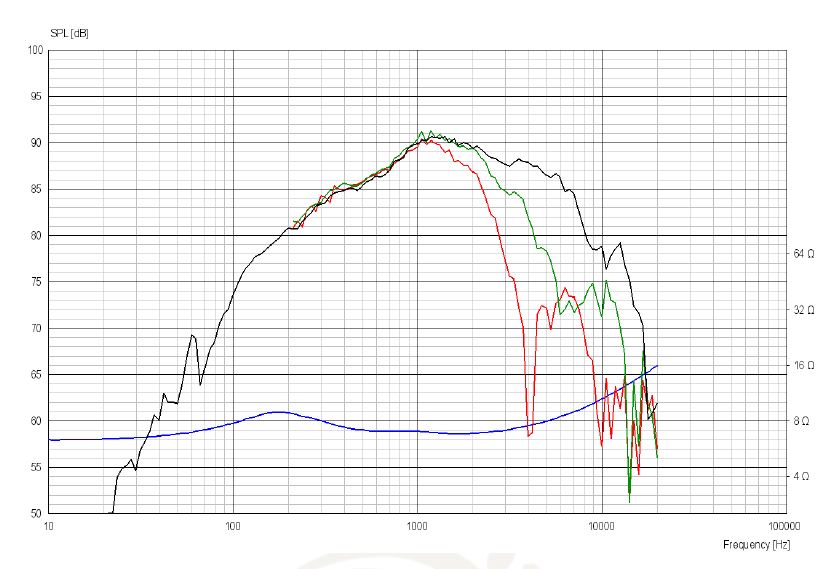

• frequency range = 600-6000 Hz
• resonance frequency fs = 300 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 92 dB (2,83V; 1m)
• DC resistance Re = 5,7 Ohm
• force factor BL = 4,7 N/A
• voice coil inductance L = 0,13 mH
• effective piston radiating area Sd = 55 cm²
• effective mechanical mass incl. air load mms = 3,3 g
• equivalent volume of compliance Vas = 0,36 l
• total Q factor Qts = 1,73 (Qms=7,75, Qes=2,22)
• voice coil diameter = 76 mm
• maximum peak linear excursion vibration x_lin = +/- 0,4 mm

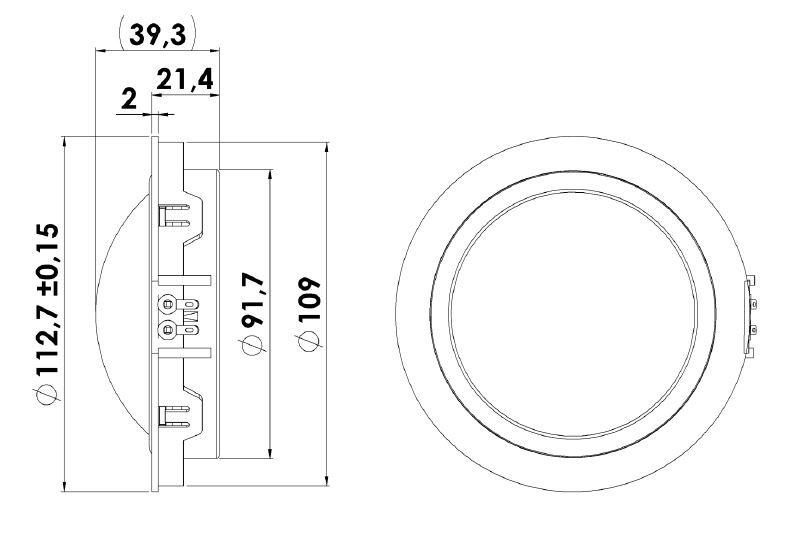

• mounting diameter d = 109 mm
• overall diameter d = 112,7 mm
• mounting depth (not countersunk) t = 39,3 mm
