SB Acoustics SW26DBAC76-3-DV

€251.88 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1382451
SB-Acoustics SW26DBAC76-3-DV 10" Woofer Unique patented long through shallow design Vented... more
Product information "SB Acoustics SW26DBAC76-3-DV"

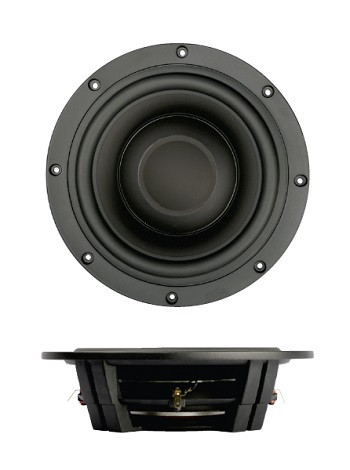

SB-Acoustics SW26DBAC76-3-DV 10" Woofer

  • Unique patented long through shallow design
  • Vented cast aluminum chassis for optimum strength and low compression
  • Dual rigid aluminum cone structure
  • Non-conducting fiber glass coil former for minimum damping
  • Shorting ring in motor system for reduced distortion
  • Copper voice coil for improved power handling
  • Dual voice coil
  • Long life insulated silver lead wires
  • Powerful neodymium motor system

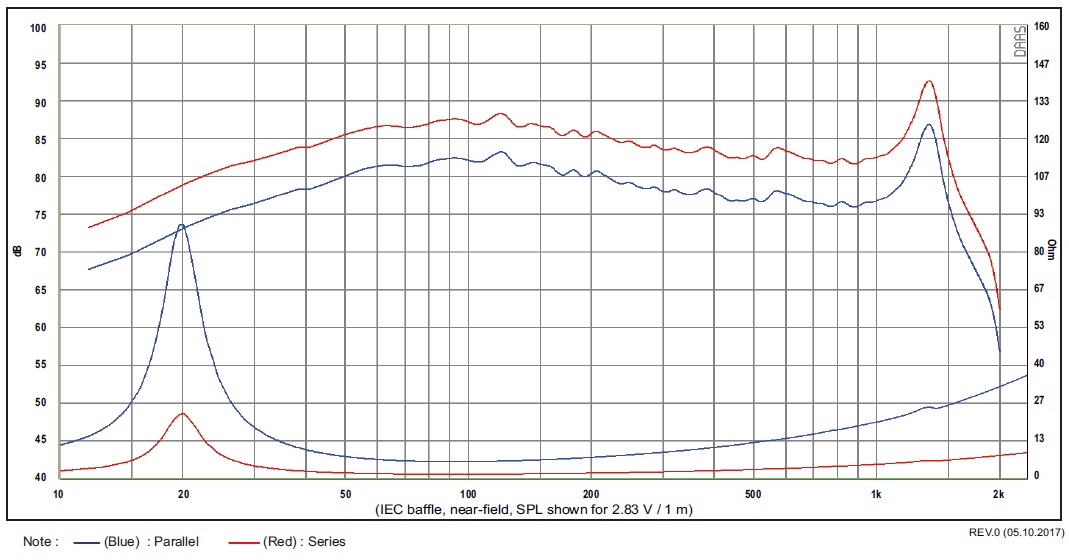

Specifications

  • power handling (continuous/programme) = 300 W
  • resonance frequency fs = 19.5 Hz
  • impedance R = 2x3 Ohm
  • sound pressure level SPL = 88/82 dB (2,83V; 1m)(par./ser.)
  • DC resistance Re = 2x2.4 Ohm
  • force factor BL = 9.7/19.4 N/A (par./ser.)
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 185 g
  • equivalent volume of compliance Vas = 49.7 l
  • total Q factor Qts = 0.28 (Qms=5.96, Qes=0.29)

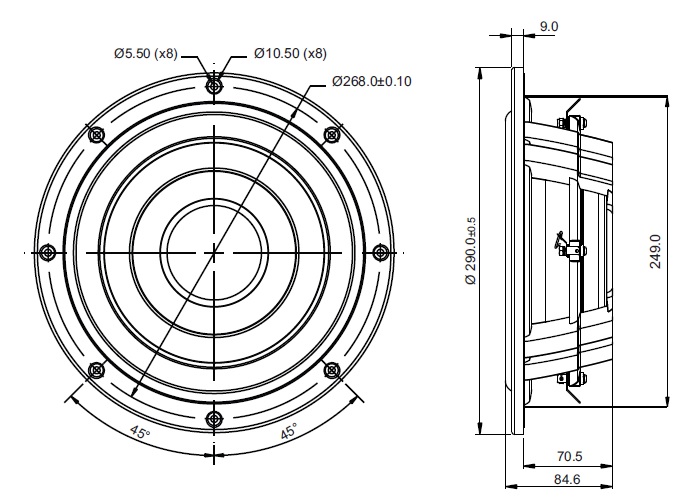

  • voice coil diameter = 75,5 mm
  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 70,5 mm
