  • hivi-dmb-a
This is a new generation modified version of DMB-A Treated inartificial fabric, 50mm dome... more

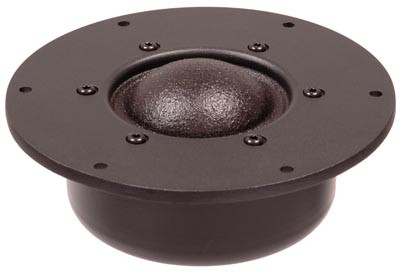

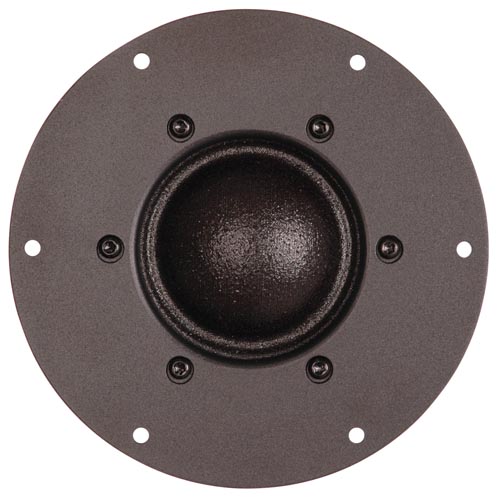

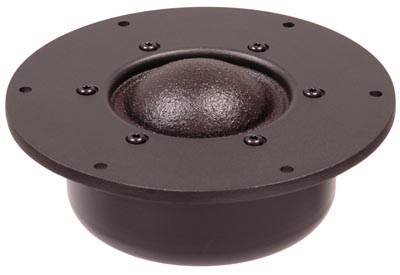

Product information "HiVi DMB-A"

This is a new generation modified version of DMB-A

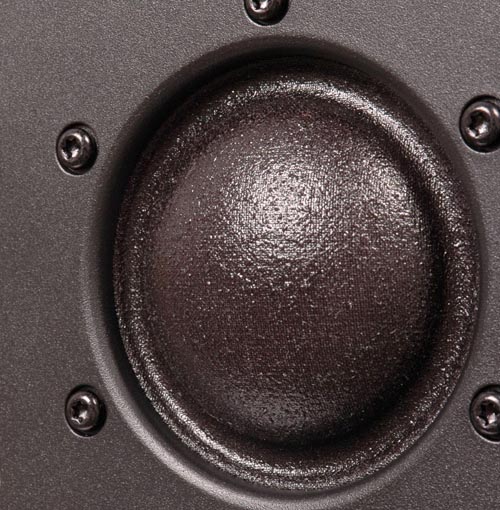

Treated inartificial fabric, 50mm dome midrange cone, coated with special damping material. Sound is nature and accurate. High power underhung voice coil with aluminum former; matching with the copper wraps and aluminum winding wire, the enlargement power output; it can reduce the resonant Q peak value of each unit. Low distortion, extend the low frequency respond range.

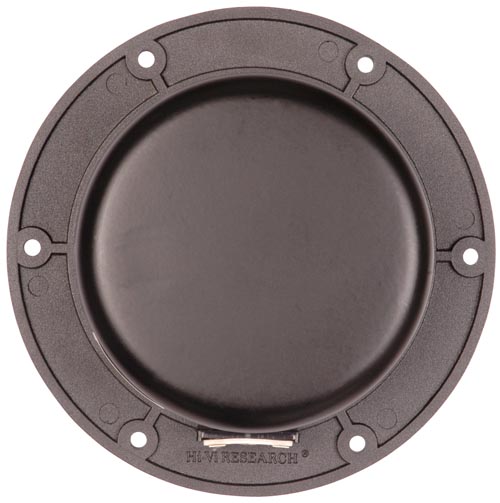

Hi-Vi Symmetric Double magnet shielded motor structure. Low distortion and vented design, increasing sensitivity and reducing harmonic distortion. Vented design with a large non-resonant acoustic chamber. Undercut pole piece.
Replaceable self-centering voice coil/dome assembly.
The large rear acoustic chamber and vented design provide better sound quality, suppressing parasitic internal reflections. The undercut pole piece makes the driving force stronger and more linear,
The DMB-A has very high power handling because its underhung voice coil is evenly and effectively cooled by its massive magnet structure. The DMB-A provides exceptionally balanced response and uniform acoustic power dispersion in the most critical frequency band. This driver will provide a smooth and natural transition to a tweeter creating a very open, clean and lifelike sound.



Nominal Impedance (Z)(Ω) : 5
Resonance Frequency (Fs)(Hz) : 700
Nominal Power Handling (Pnom)(W) : 80
Sensitivity (2.83v/1m)(dB) : 92
Weight (M)(Kg) : 1.6
VC Diameter (mm) : 50
DC (Re)(Ω) : 4.3
VC Former : CCAW
VC Frame : ALuminum
VC Layers : 2
Magnet System : Shielded
Magnet Former : Ferrite
Recommended Crossover Frequency(Hz) : >800 <6000
