The Elite EM 1308 54mm dome midrange is based on the MDM 55's unique qualities. It features IDR™... more
Product information "Morel EM 1308"

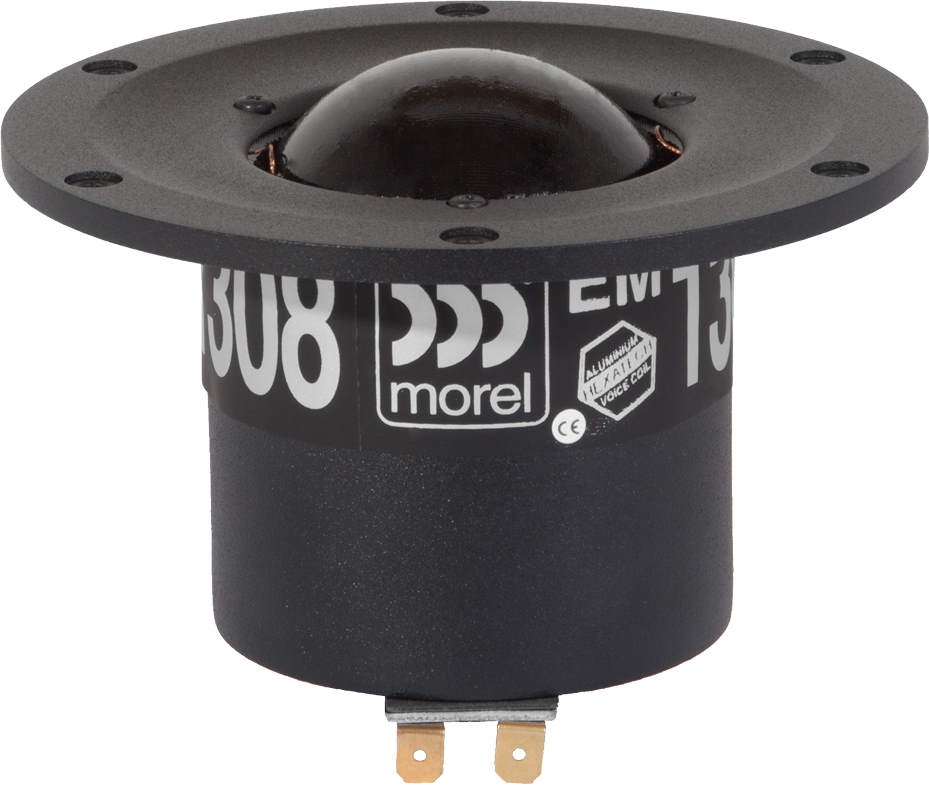

The Elite EM 1308 54mm dome midrange is based on the MDM 55's unique qualities. It features IDR™ (Improved Dispersion Recess), an improved neodymium magnet, aluminum faceplate, hand coated Accuflex™ soft dome, Hexatech aluminum voice coil, rear chamber loading, gold plated terminals, and full shielding to allow A/V use. Truly a no-compromise midrange driver designed for high end multiple speaker systems.



Features

  • 54mm Accuflex™ hand coated soft dome
  • IDR™ (Improved Dispersion Recess)
  • Large Hexatech™ aluminum voice coil
  • High power handling
  • Gold plated terminals
  • Internally damped, aluminum rear chamber

Specifications

  • power handling (continuous/programme) = 200 W

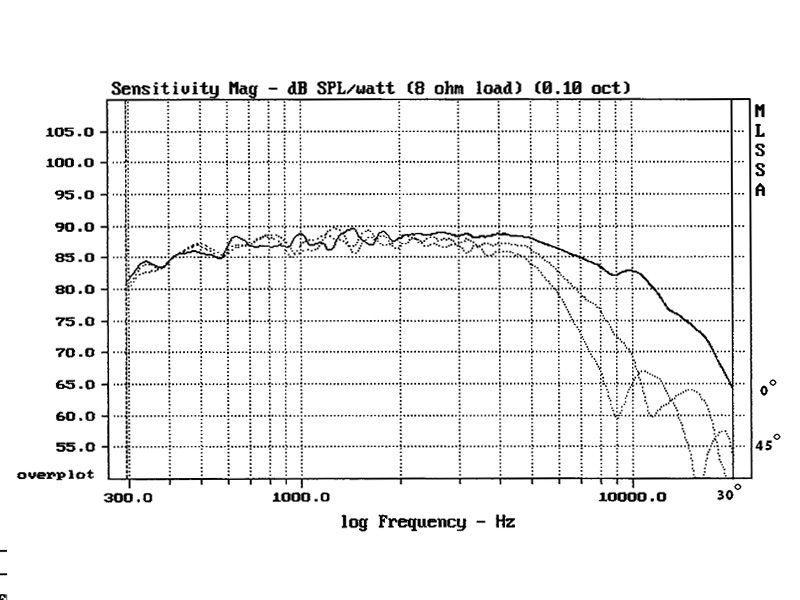

  • frequency range = 500-5000 Hz
  • resonance frequency fs = 380 Hz

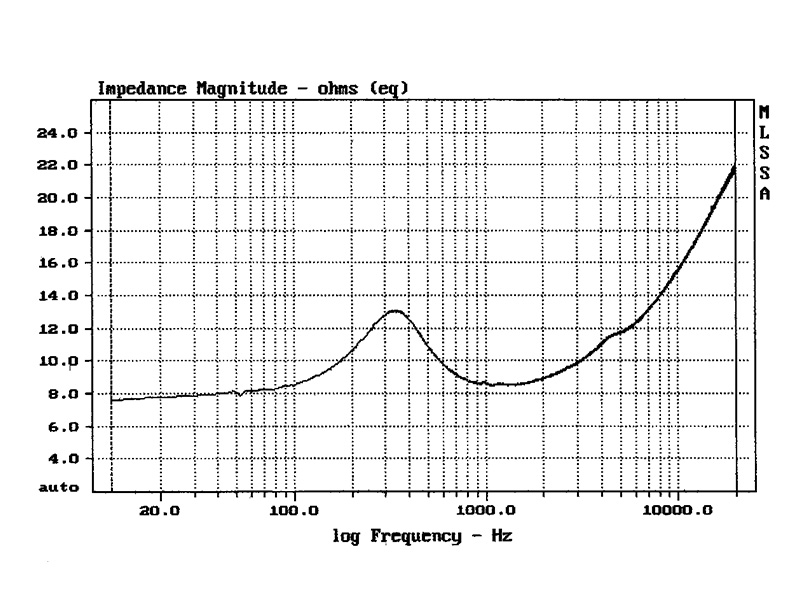

  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 0,19 mH
  • effective piston radiating area Sd = 28 cm2
  • effective mechanical mass incl. air load mms = 3 g
  • total Q factor Qts = 0,48 (Qms=0,9, Qes=1,01)
  • voice coil diameter = 54 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm

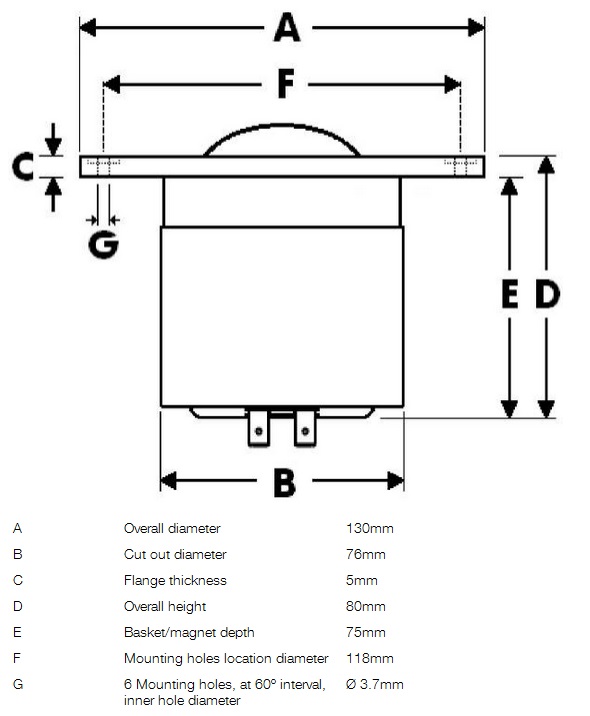

  • mounting diameter d = 76 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 75 mm
