SB Acoustics Satori MD60N-6 Mid-range Dome

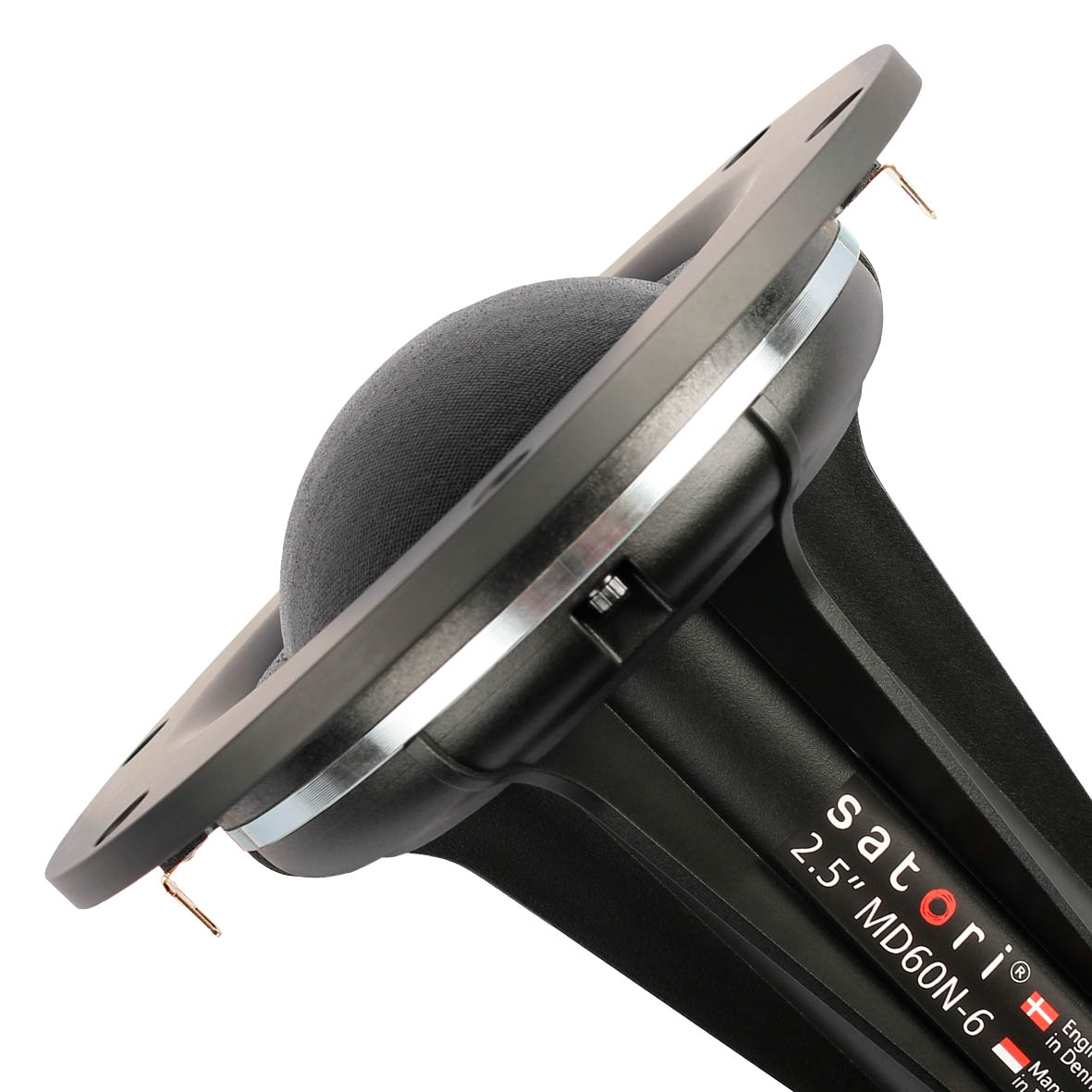

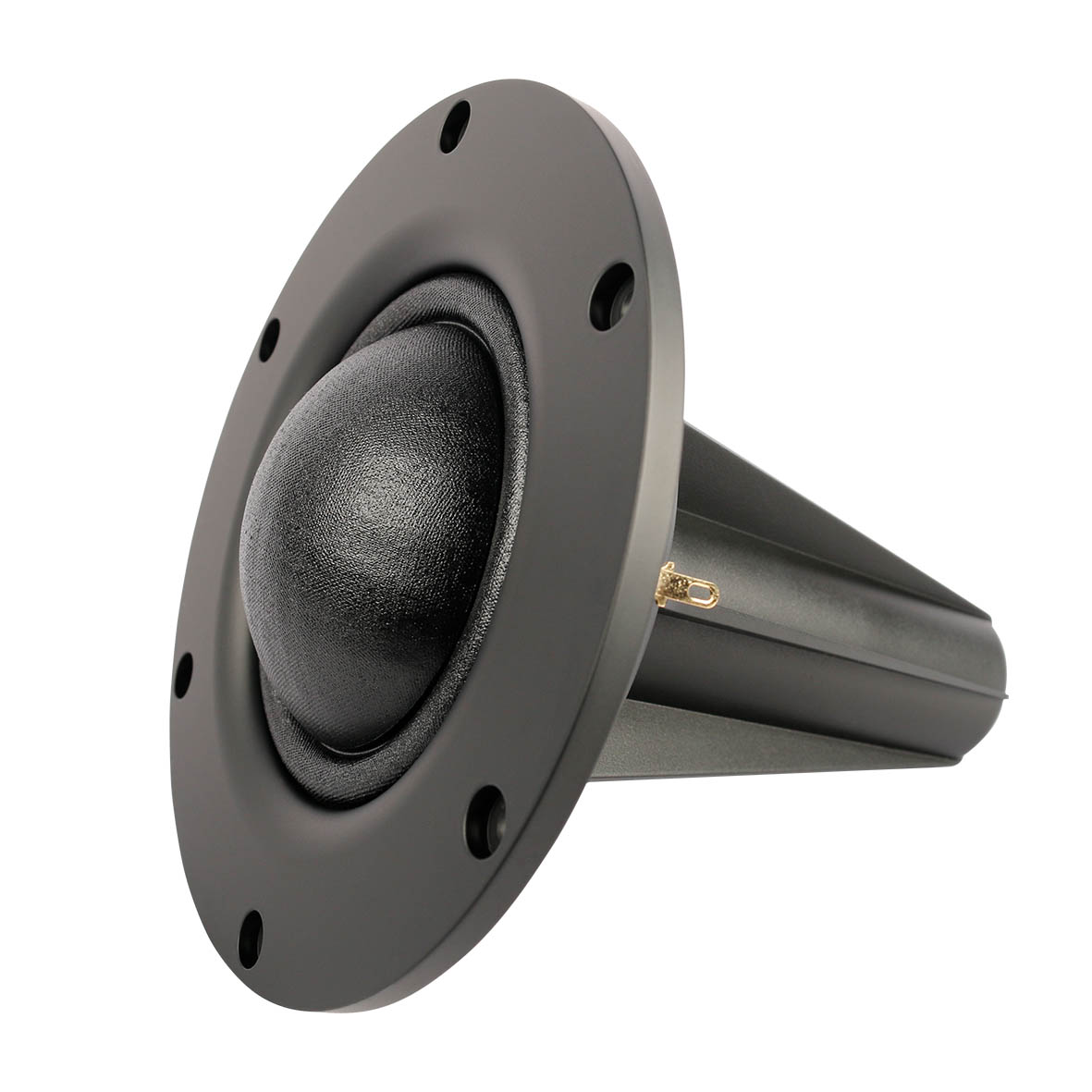

The SB Acoustics Satori MD60N-6 is a 2.5-inch dome midrange that is part of the high-end Satori line from SB Acoustics. The design by Danesian Audio of Denmark features a coated non-resonant soft dome and a large neodymium ring magnet with a dynamic dome stabilizer and flow resistor. The midrange also has a tuned closed-end transmission line chamber. The machined aluminum faceplate helps to reduce distortion and improve the overall sound quality. The vented coil former and braided long-life silver litz wires help to provide a more efficient and accurate response from the speaker.
Highlights
- Coated non-resonant soft dome
- Powerful neodymium motor system
- Tuned closed-end transmission line chamber
- Dynamic dome stabilizer and flow resistor
- Machined aluminium faceplate
- Vented coil former
- Braided long-life silver litz wires
Product details
SB Acoustics Satori MD60N-6 Fabric Mid-range Dome
The SB Acoustics Satori MD60N-6 is a high-quality midrange speaker that is well-suited for use in a variety of applications, including home audio, studio monitors, and professional sound reinforcement. It is known for its smooth, accurate sound reproduction and its wide frequency response.
The speaker features a 2.5-inch soft dome midrange driver with a coated non-resonant diaphragm. This diaphragm is designed to provide a smooth and accurate sound reproduction, while the coated finish helps to reduce unwanted resonances. The driver is also powered by a powerful neodymium motor system, which provides plenty of power for even the most demanding applications.
The speaker also features a tuned closed-end transmission line chamber. This chamber helps to improve the speaker's frequency response and imaging, resulting in a more natural and immersive soundstage. The speaker also features a dynamic dome stabilizer and flow resistor, which help to reduce distortion and improve the speaker's overall performance.
Specifications
- Nominal Impedance 6 Ω
- DC resistance, Re 5.3 Ω
- Voice coil inductance, Le 0.14 mH
- Effective piston area, Sd 32 cm2
- Voice coil diameter 60.5 mm
- Voice coil height 4.3 mm
- Air gap height 3 mm
- Linear coil travel,Xmax ±0.5 mm
- Magnetic flux density 1.28 T
- Magnet weight 0.06 kg
- Net weight 0.58 kg
- Free air resonance, Fs 400 Hz
- Sensitivity (2.83V/1m) 95 dB
- Mechanical Q-factor, Qms N/A
- Electrical Q-factor, Qes N/A
- Total Q-factor, Qts N/A
- Moving mass incl. air,Mms 2.0 g
- Force factor, Bl 7.2 Tm
- Equivalent volume, Vas – liters
- Compliance, Cms – mm/N
- Mechanical loss, Rms – kg/s
- Rated power handling 120 W
