- Order number: mon-msh115hq

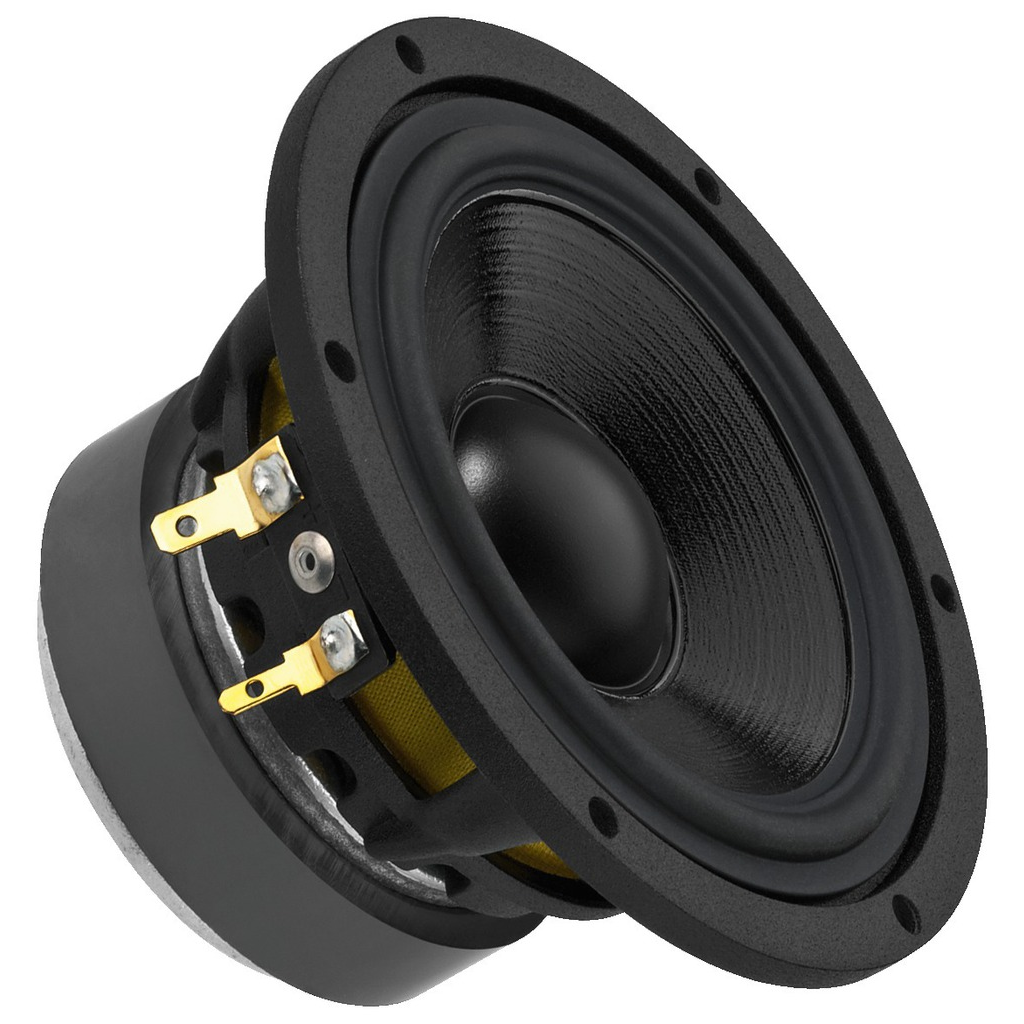

High-quality hi-fi midrange speaker, 50 W, 8 Ω
- 100 mm (4") midrange speaker
- Further development of the classic speaker MSH-115
- Specialised for reproduction of the important midrange

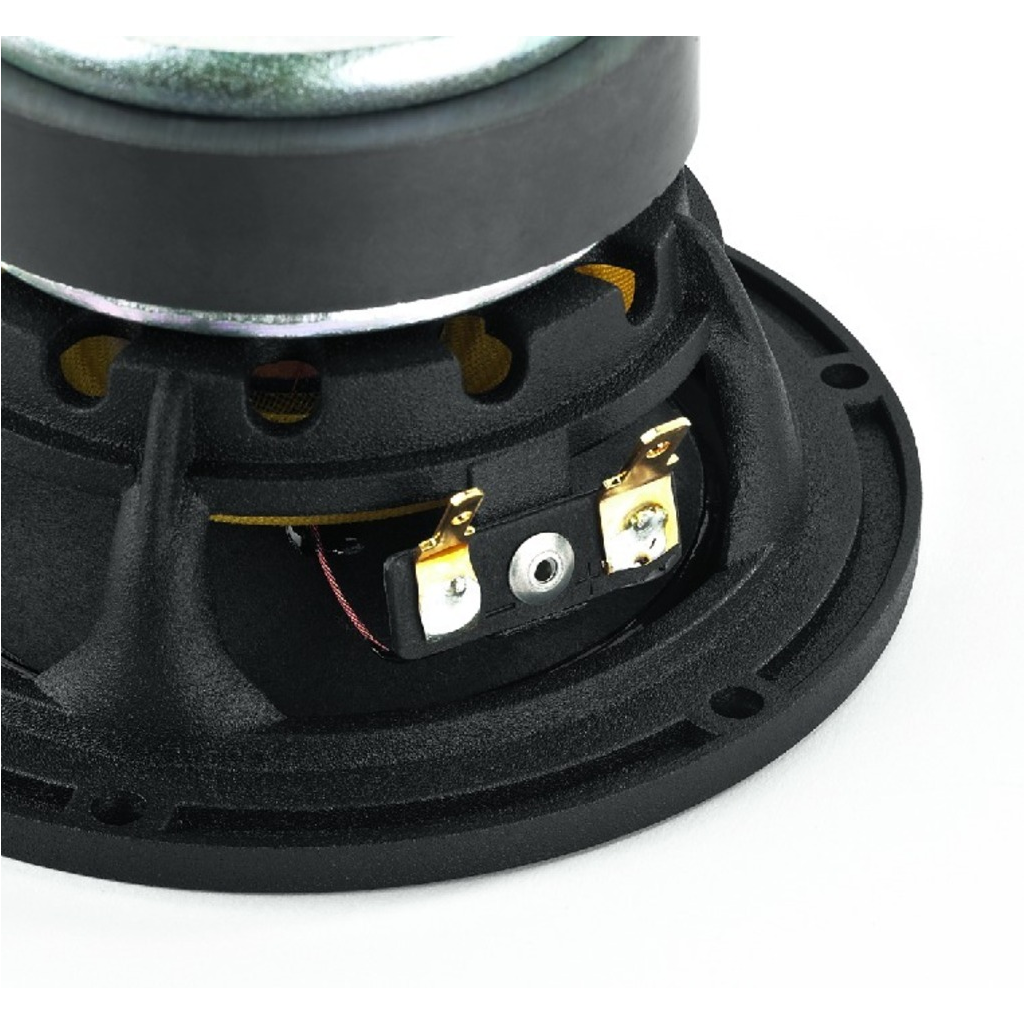

- Diecast basket and rear-ventilated centering spider for minimum mechanical loss
- High-quality, low-resonance paper cone
- Wide and linear radiation range
- Also ideally suited for application in small satellite systems with subwoofer support
HOBBY HiFi 01/2013
"Smooth, very fast decay. Impresses with its high-quality workmanship."
Klang+Ton 02/2013
SPH-10M, MSH-115HQ, RBT-95SR and SAM-2 in the building concept 2DOT1
"A system of appealing design which provides an equally nice sound ... the speaker building concept features an amazing adaptability and almost unlimited settings ... incredibly suitable for everyday use, is capable of reproducing any kind of music and suitable for home cinema systems. The system provided an absolutely amazing sound when tested in the audio room. The small speakers appeared to reproduce the complete bass range. There was no way of locating the subwoofer. The tactics with the tiles achieved great results ... nothing trembles, even though a powerful bass speaker of a high power capability is set-up in the room. The satellites provide an extra light and high-resolution sound."
Specifications
- power handling (continuous/programme) = 50/100 W

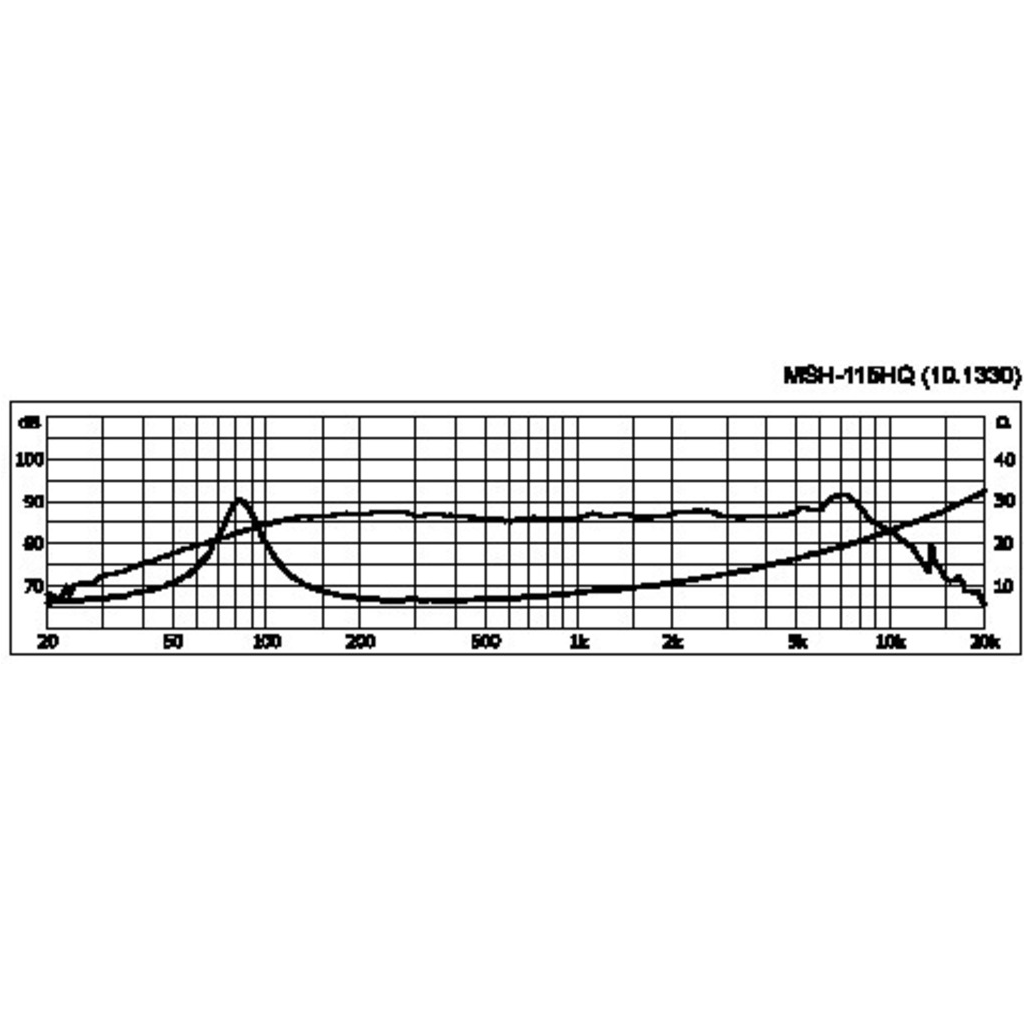

- frequency range = 100-8000 Hz
- resonance frequency fs = 89 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 89 dB (2,83V; 1m)
- DC resistance Re = 5,8 Ohm
- force factor BL = 5,35 N/A
- voice coil inductance L = 0,53 mH
- effective piston radiating area Sd = 55 cm2
- effective mechanical mass incl. air load mms = 5,8 g
- equivalent volume of compliance Vas = 2,2 l
- total Q factor Qts = 0,55 (Qms=3,26, Qes=0,66)
- voice coil diameter = 25 mm
- maximum peak linear excursion vibration xlin = +/- 3 mm

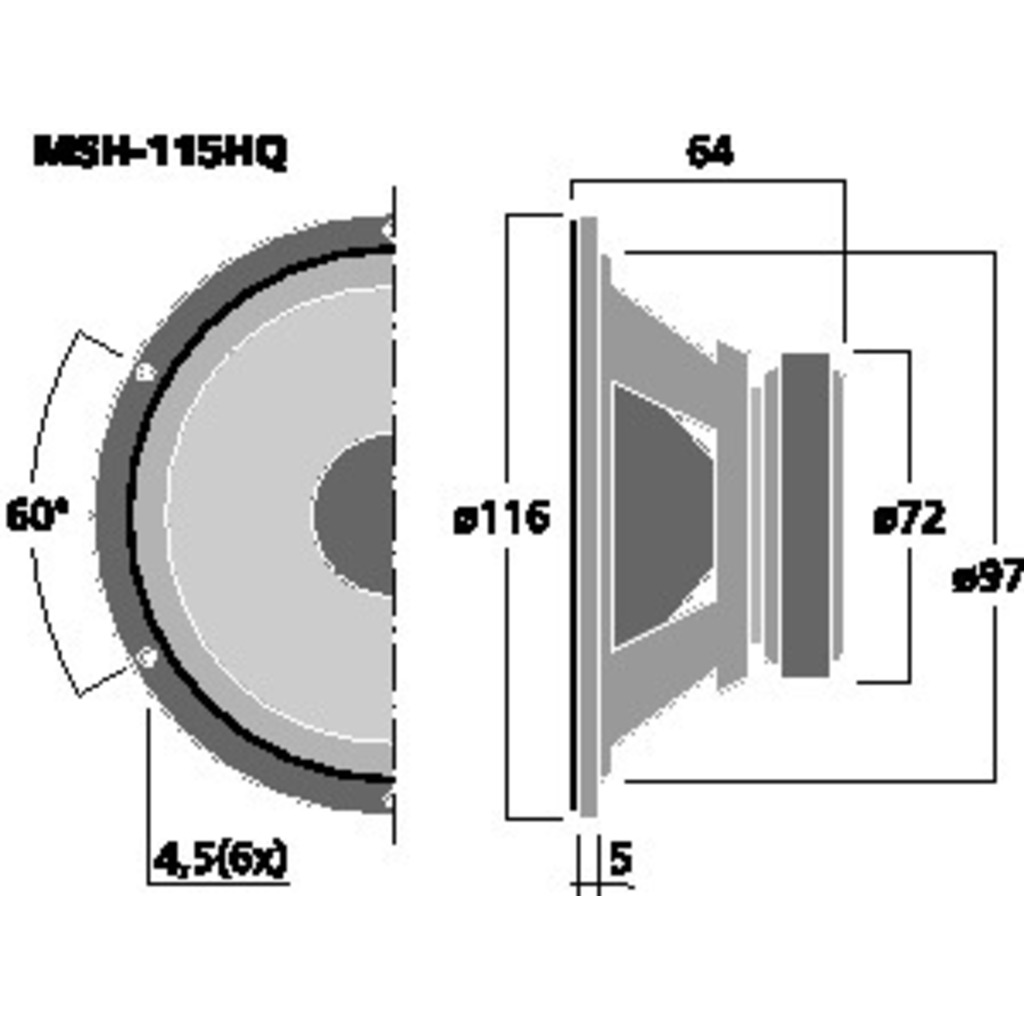

- mounting diameter d = 97 mm
- overall diameter d = 116 mm
- mounting depth (not countersunk) t = 64 mm
