Visaton FR 8 JS 8Ohm

€8.98 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • vi-2000
Visaton FR 8 JS  8Ohm   8 cm (3.3") full-range speaker with waterproof... more
Product information "Visaton FR 8 JS 8Ohm"

Visaton FR 8 JS  8Ohm

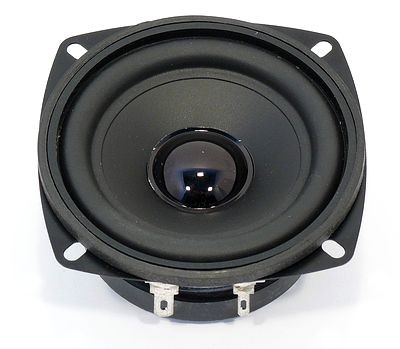

8 cm (3.3") full-range speaker with waterproof polypropylene cone, good bass reproduction and balanced frequency response. Especially suitable as built-in speaker for music reproduction and as driver for 100 V network column speakers.

Typical applications:
- Narrow network column speakers
- Control speakers for electronic devices
- Ceiling-mounted speakers in railway carriages and busses
- Electronic musical instruments

Attributes:
- Polypropylene cone
- Metal basket



Specifications

  • power handling (continuous/programme) = 10/15 W

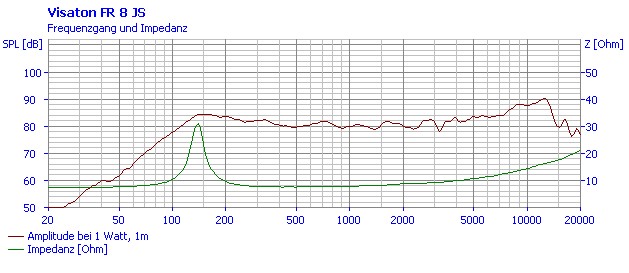

  • frequency range = 80-20000 Hz
  • resonance frequency fs = 130 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 2,77 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 30 cm2
  • effective mechanical mass incl. air load mms = 2,3 g
  • equivalent volume of compliance Vas = 0,84 l
  • total Q factor Qts = 1,24 (Qms=4,3, Qes=1,74)
  • voice coil diameter = 15 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm

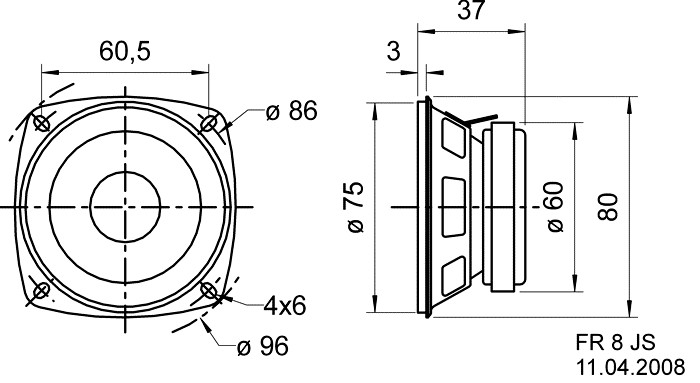

  • mounting diameter d = 75 mm
  • overall diameter d = 96 mm
  • mounting depth (not countersunk) t = 37 mm
  • mass m = 0,24 kg
