Product information "Peerless SDS-106 Subwoofer"

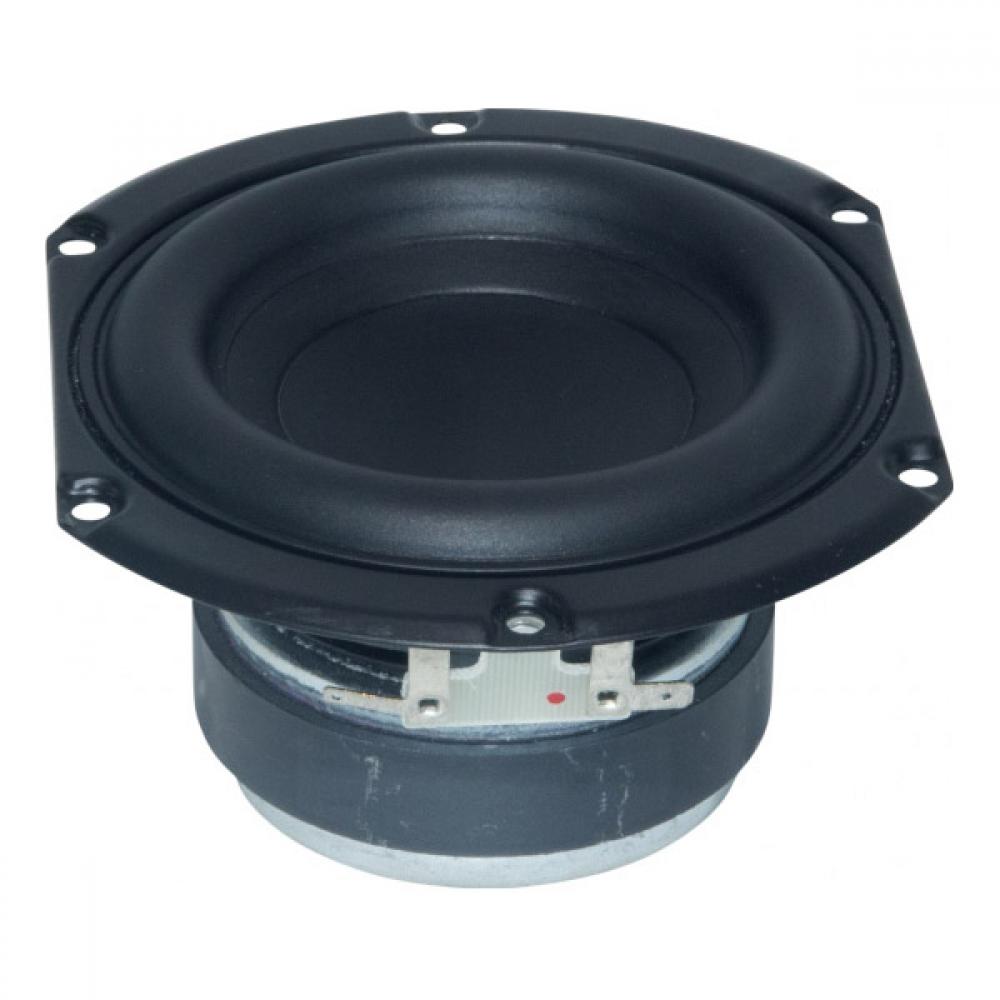

The Peerless SDS-106, SDS Series 830855 midwoofer is intended for use in small
surround sound speakers, compact monitors, and even as the dedicated midrange

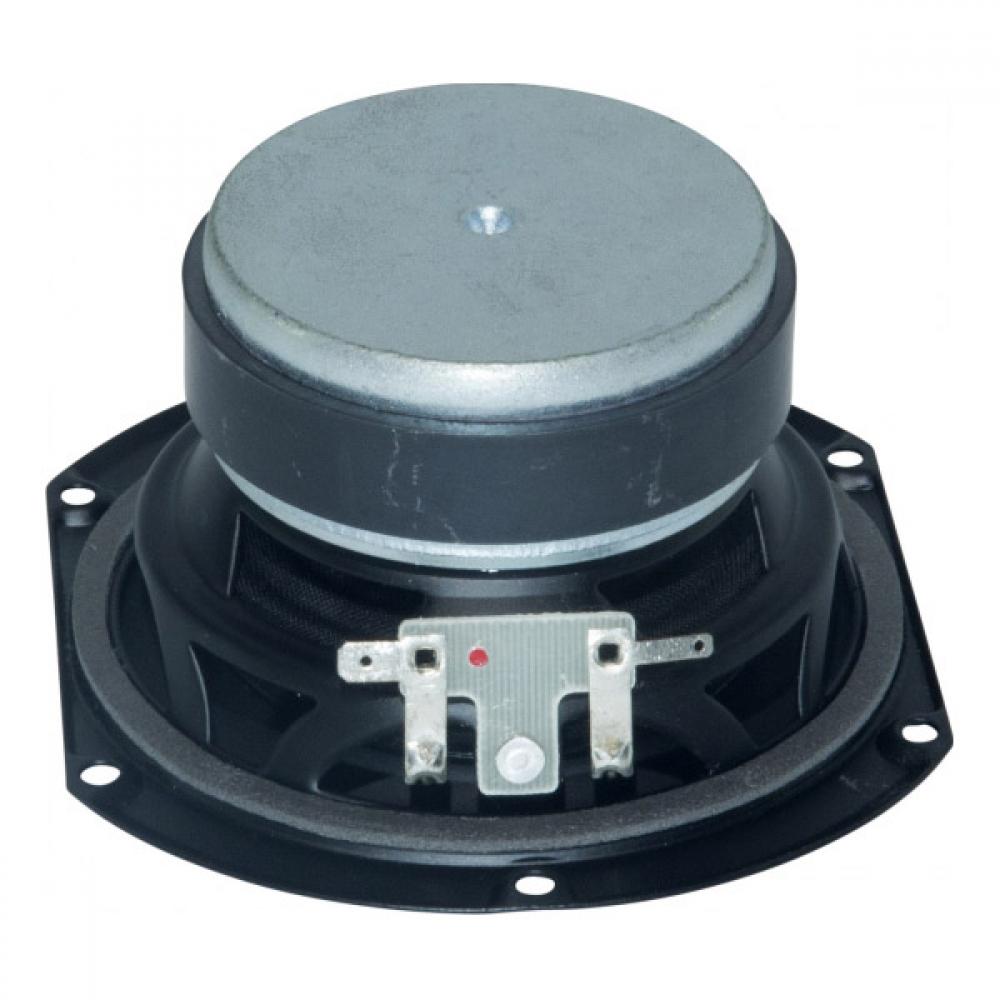

component in 3-way or 4-way systems. Truncated cosmetic stamped steel frame with
venting below the spider and at the cone apex. Treated paper cone with rubber
surround and inverted dust cap. Long-throw copper voice coil on hi-temp
fiberglass former.
Specifications:
- power handling (continuous/programme) = 30 W

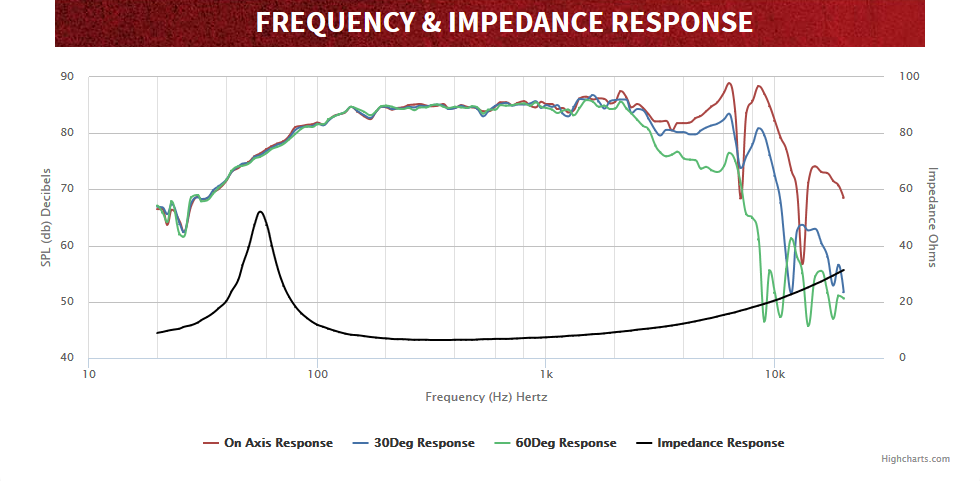

- frequency range = 60-4000 Hz
- resonance frequency fs = 63,3 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 84,8 dB (2,83V; 1m)
- DC resistance Re = 5,6 Ohm
- force factor BL = 5,58 N/A
- voice coil inductance L = 0,24 mH
- effective piston radiating area Sd = 50,3 cm2
- effective mechanical mass incl. air load mms = 6,9 g
- equivalent volume of compliance Vas = 3,28 l
- total Q factor Qts = 0,44 (Qms=4,66, Qes=0,49)
- voice coil diameter = 25 mm
- maximum peak linear excursion vibration xlin = +/- 3 mm

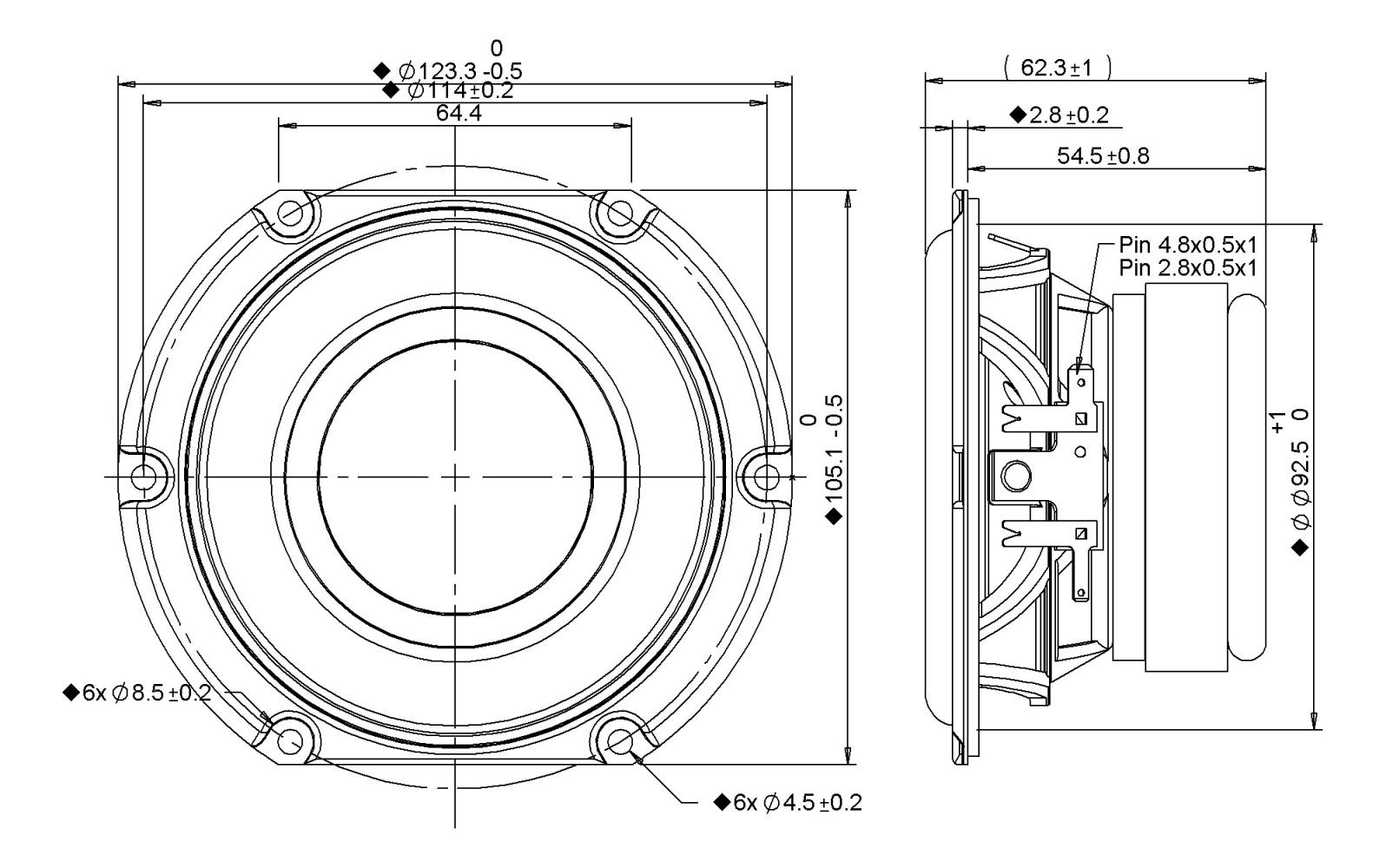

- mounting diameter d = 92,5 mm
- overall diameter d = 123,3 mm
- mounting depth (not countersunk) t = 54,5 mm
