Visaton W 170 8Ohm

€18.38 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • vi-9063
Visaton W 170   17 cm (6.5") HiFi woofer with very good price/performance ratio.... more
Product information "Visaton W 170 8Ohm"

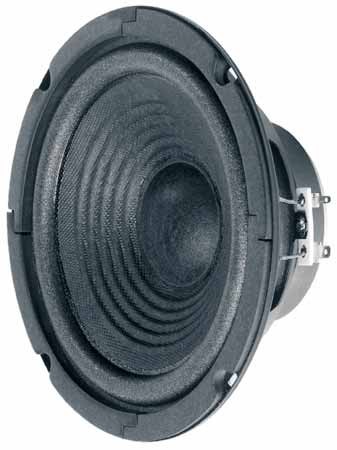

Visaton W 170



17 cm (6.5") HiFi woofer with very good price/performance ratio. Suitable for simple 2-way speakers and car rear tray systems. Especially suited als replacement driver for many HiFi speakers.



Specifications

  • power handling (continuous/programme) = 40/70 W

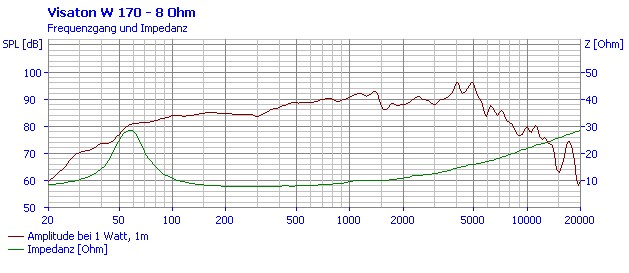

  • frequency range = -6000 Hz
  • resonance frequency fs = 57 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 5,0 N/A
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 137 cm2
  • effective mechanical mass incl. air load mms = 8,7 g
  • equivalent volume of compliance Vas = 24 l
  • total Q factor Qts = 0,69 (Qms=2,92, Qes=0,9)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm

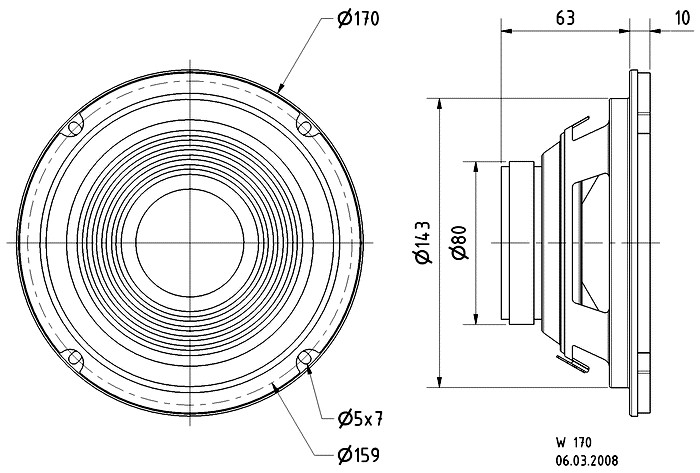

  • mounting diameter d = 146 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 73 mm
  • mass m = 0,77 kg
