Visaton SC 8 N 8Ohm

€18.96 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • vi-8018
Visaton SC 8 N  8Ohm   Magnetically shielded 8 cm (3.3") fullrange driver with... more
Product information "Visaton SC 8 N 8Ohm"

Visaton SC 8 N  8Ohm

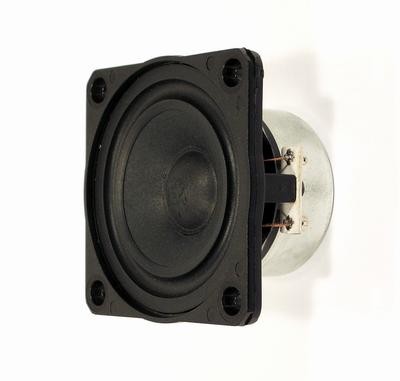

Magnetically shielded 8 cm (3.3") fullrange driver with cellulose cone and inverted rubber surround. Very balanced frequency response. In conjunction with the shielded tweeter SC 5 8 OHM especially suitable for small magnetically shielded 2-way combinations such as Multi Media systems.



Typical applications

  • Surround centre speakers
  • Multimedia systems
  • Video monitoring screens
  • TVs
  • Computer terminals



Attributes

  • Plastic: ABS V0 (UL 94: V-0)
  • Moisturised cone
  • Magnetically shielded



Specifications

  • power handling (continuous/programme) = 30/50 W

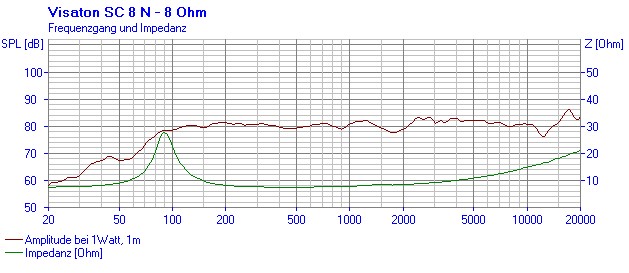

  • frequency range = 70-15000 Hz
  • resonance frequency fs = 94 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 2,8 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 32 cm2
  • effective mechanical mass incl. air load mms = 2,5 g
  • equivalent volume of compliance Vas = 1,7 l
  • total Q factor Qts = 0,96 (Qms=4,55, Qes=1,21)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 1,5 mm

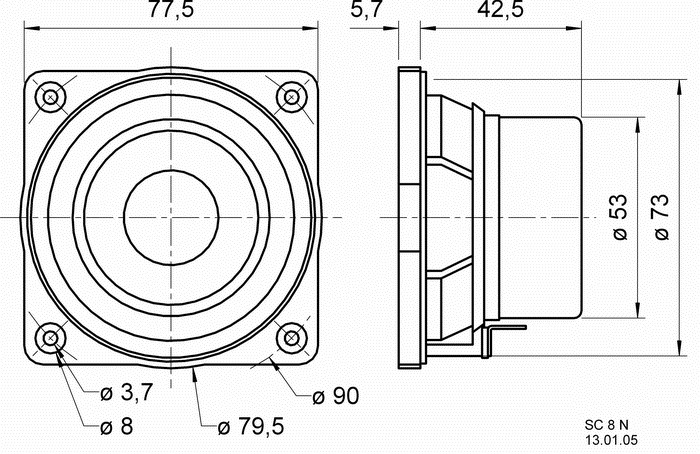

  • mounting diameter d = 73 mm
  • overall diameter d = 80 mm
  • mounting depth (not countersunk) t = 45 mm
