SB Acoustics SB65WBAC25-4

€27.29 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 1382341
SB Acoustics SB65WBAC25-4 2.5" Fullrange Geometrically furrowed aluminum cone for extended... more
Product information "SB Acoustics SB65WBAC25-4"

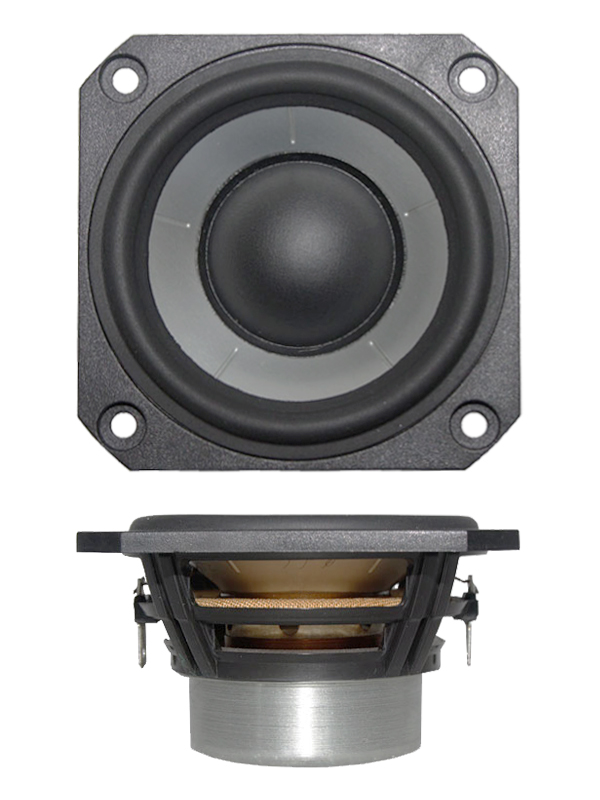

SB Acoustics SB65WBAC25-4 2.5" Fullrange

  • Geometrically furrowed aluminum cone for extended usable frequency range.
  • Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability.
  • Low damping surround and non-conductive voice coil former to ensure dynamics and an open/transparent sound character with excellent detailing/resolution.
  • Linear neodymium motor system for reduced distortion.
  • Vented voice coil former for reduced compression.

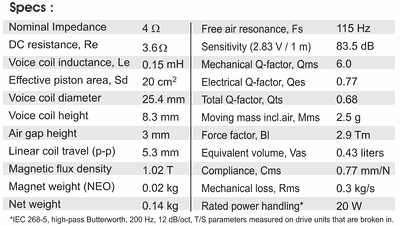

Specifications

  • power handling (continuous/programme) = 20 W
  • resonance frequency fs = 115 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 83.5 dB (2,83V; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 2.9 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 20 cm2
  • effective mechanical mass incl. air load mms = 2.5 g
  • equivalent volume of compliance Vas = 0.43 l
  • total Q factor Qts = 0.68 (Qms=6.0, Qes=0.77)
  • voice coil diameter = 25.4 mm

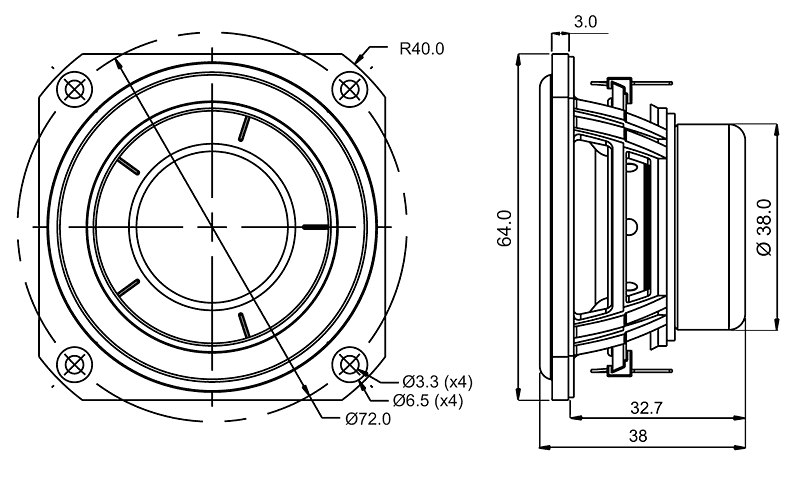

  • mounting diameter d = 60mm
  • overall diameter d = 80/64 mm
  • mounting depth (not countersunk) t = 33 mm
