Visaton W 250 8Ohm

€47.91 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 9067
Visaton W 250 8Ohm   25 cm (10") woofer with air-dried cone and cone... more
Product information "Visaton W 250 8Ohm"

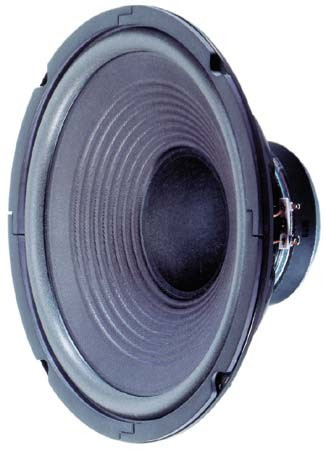

Visaton W 250 8Ohm



25 cm (10") woofer with air-dried cone and cone reinforcement. Front or rear mounting possible. Very good price/performance ratio and high power handling.

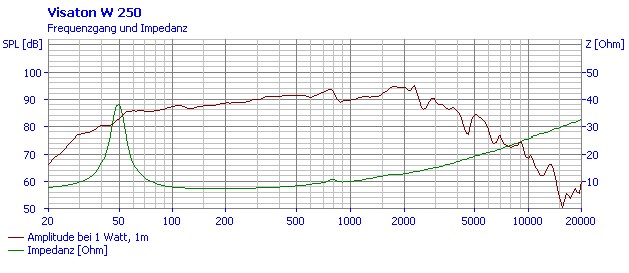

Specifications

  • power handling (continuous/programme) = 90/130 W
  • frequency range = -6000 Hz
  • resonance frequency fs = 37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 6,4 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 360 cm2
  • effective mechanical mass incl. air load mms = 27 g
  • equivalent volume of compliance Vas = 135 l
  • total Q factor Qts = 0,78 (Qms=3,57, Qes=1,0)
  • voice coil diameter = 35 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm

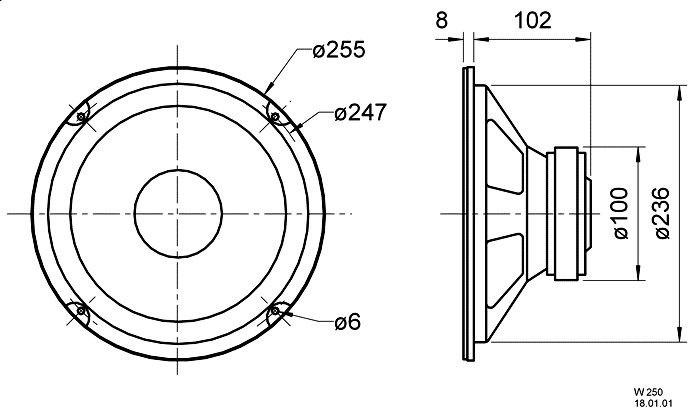

  • mounting diameter d = 236 mm
  • overall diameter d = 255 mm
  • mounting depth (not countersunk) t = 110 mm
  • mass m = 1,5 kg



Recommended cabinets:

Volume/Principle BR-Channel fb
30 l/bass reflex BR 15.34 (11 cm lang) 46 Hz
50 l/bass reflex BR 15.34 (9 cm lang) 38 Hz
70 l/bass reflex BR 15.34 (8 cm lang) 38 Hz
