Visaton FRS 5 X 8Ohm

Visaton FRS 5 X - 8 Ohm

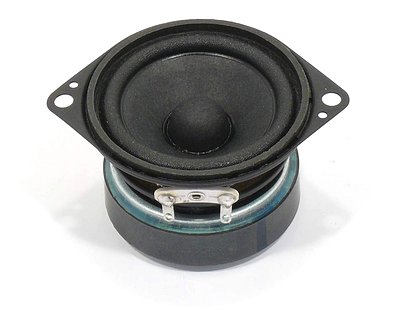

5 cm (2") full-range speaker with black basket and two fixing lugs. Due to its low resonant frequency the frequency response starts already at 120 Hz. Suitable as full-range speaker and medium-range driver in speaker systems for HiFi and background music and for 100 V PA systems. Thanks to the slim construction, also suitable as a control speaker in electronic devices.

Typical applications

• Very narrow network column speakers
• Monitoring speaker for electronic devices
• Model construction
• Electronic musical instruments

Specifications

• power handling (continuous/programme) = 5/8 W

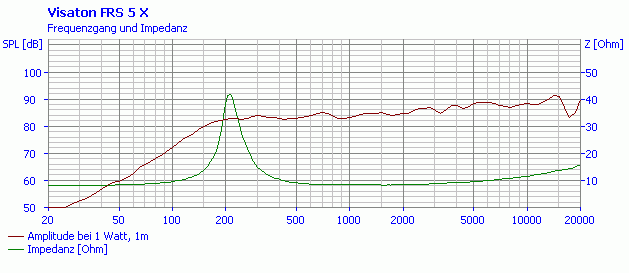

• frequency range = 120-20000 Hz
• resonance frequency fs = 190 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 86 dB (2,83V; 1m)
• DC resistance Re = 7,7 Ohm
• force factor BL = 2,67 N/A
• effective piston radiating area Sd = 12,5 cm²
• effective mechanical mass incl. air load mms = 0,7 g
• equivalent volume of compliance Vas = 0,23 l
• total Q factor Qts = 0,7 (Qms=3,49, Qes=0,88)
• voice coil diameter = 14 mm

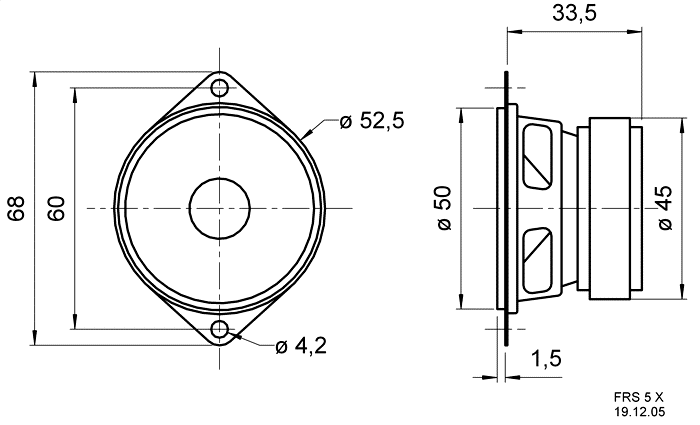

• mounting diameter d = 52,5 mm
• overall diameter d = 68x52,5 mm
• mounting depth (not countersunk) t = 33,5 mm
