Vifa TC9-FD18/08

€17.45 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 7235428

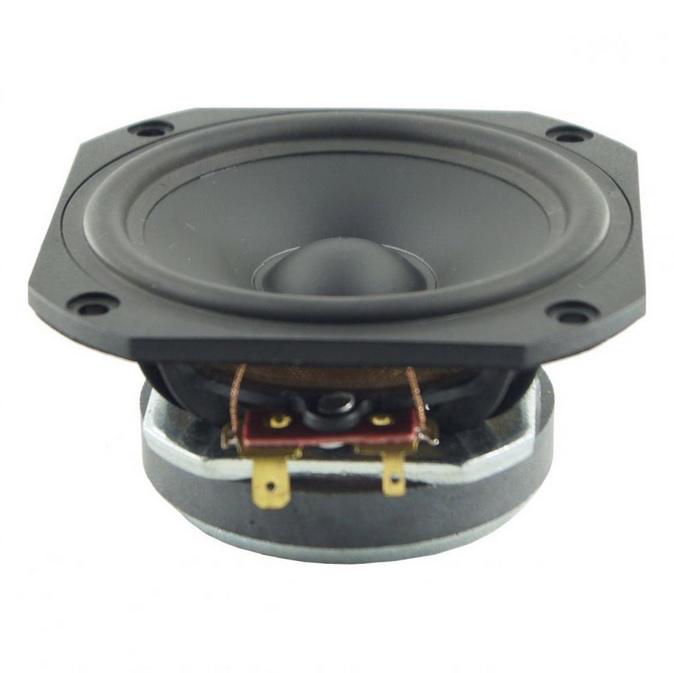

The Vifa TC9-FD18/08 3.5 inch 8 ohm full-range driver,with ferrite magnet, paper cone, rubber... more
Product information "Vifa TC9-FD18/08"

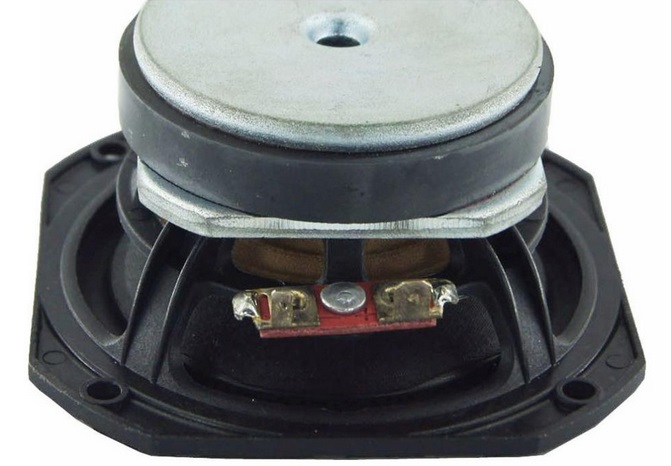

The Vifa TC9-FD18/08 3.5 inch 8 ohm full-range driver,with ferrite magnet, paper cone, rubber surround, and plastic basket with front sealing gasket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and compact applications in mind.



Specifications

  • power handling (continuous/programme) = 30 W

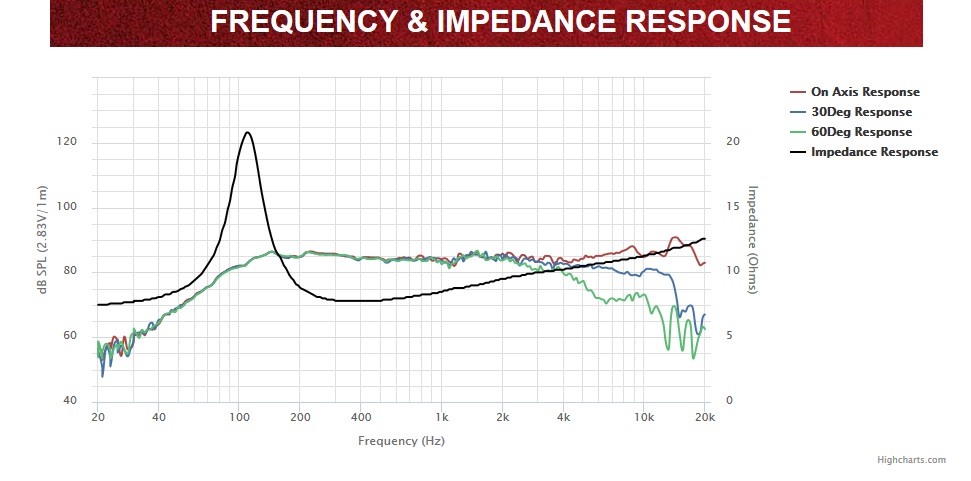

  • frequency range = 100-20000 Hz
  • resonance frequency fs = 125 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84,6 dB (2,83V; 1m)
  • DC resistance Re = 6,32 Ohm
  • force factor BL = 3,01 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 36,3 cm2
  • effective mechanical mass incl. air load mms = 2,4 g
  • equivalent volume of compliance Vas = 1,24 l
  • total Q factor Qts = 0,89 (Qms=2,73, Qes=1,33)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,6 mm

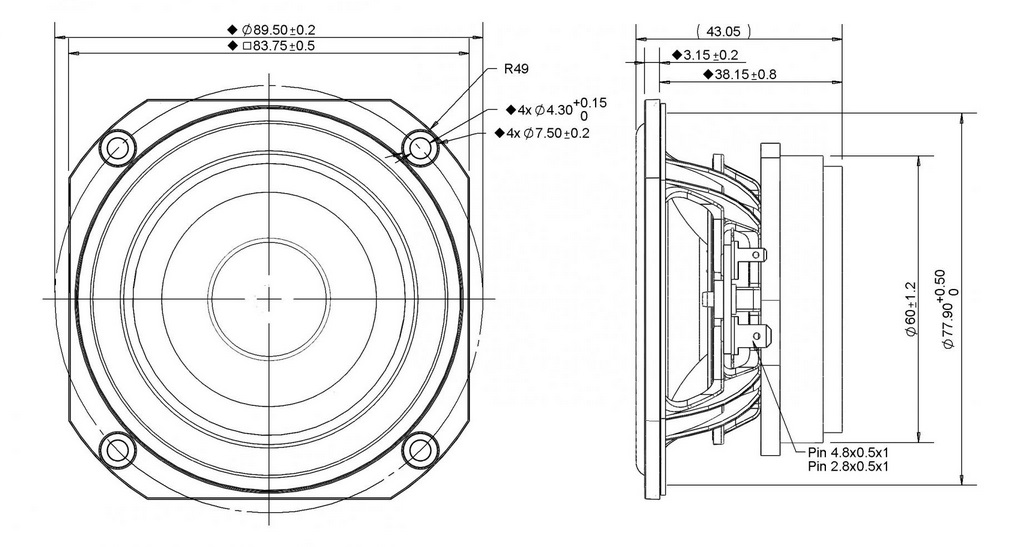

  • mounting diameter d = 77,9 mm
  • overall diameter d = 84x84 mm
  • mounting depth (not countersunk) t = 38,15 mm
  • mass m = 0,3 kg
