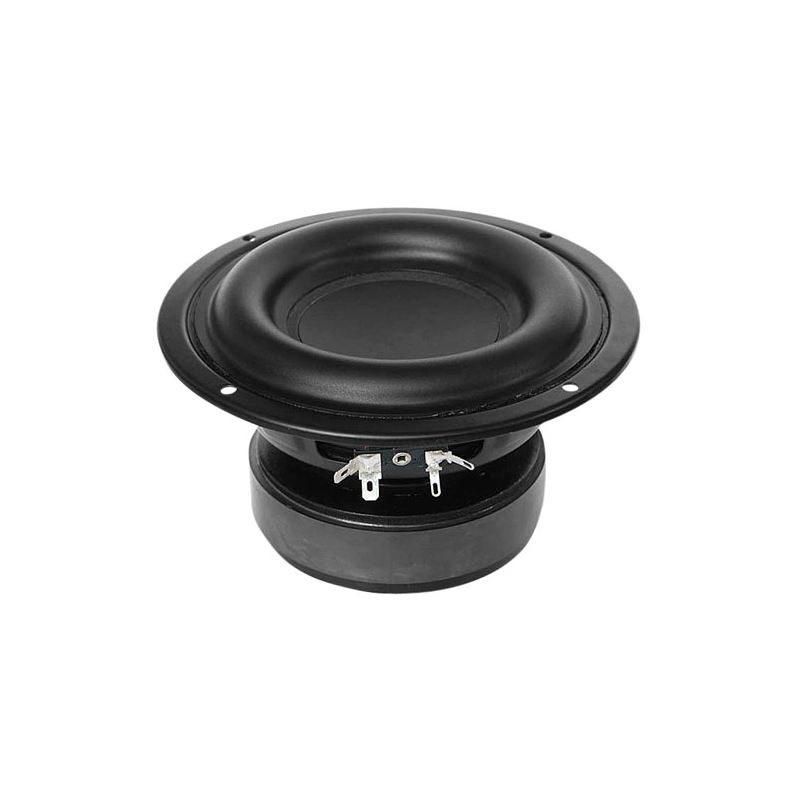

Tangband W5-1138SMF

€47.25 *

Prices incl. VAT plus shipping costs

Delivery time 80-90 Workdays

  • tbW5-1138smf
Tang Band's unique W5-1138SMF is the 5-1/4" driver of choice for ultra-miniaturized subwoofer... more
Product information "Tangband W5-1138SMF"

Tang Band's unique W5-1138SMF is the 5-1/4" driver of choice for ultra-miniaturized subwoofer systems intended for computer workstations, offices, and even mobile audio applications.



Specifications

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 45-1500 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 82 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 7,17 N/A
  • voice coil inductance L = 0,34 mH
  • effective piston radiating area Sd = 94 cm2
  • effective mechanical mass incl. air load mms = 28,81 g
  • equivalent volume of compliance Vas = 4,85 l
  • total Q factor Qts = 0,49 (Qms=3,56, Qes=0,57)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 9,25 mm

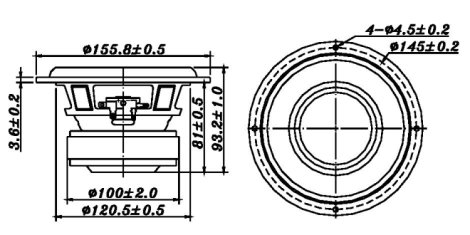

  • mounting diameter d = 120,5 mm
  • overall diameter d = 155,8 mm
  • mounting depth (not countersunk) t = 81 mm
