Wavecor SW168WA01

€85.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • sw168wa01
Wavecor SW168WA01 Paper cone subwoofer 4 Ohm   6½” High Performance Steel Frame... more
Product information "Wavecor SW168WA01"

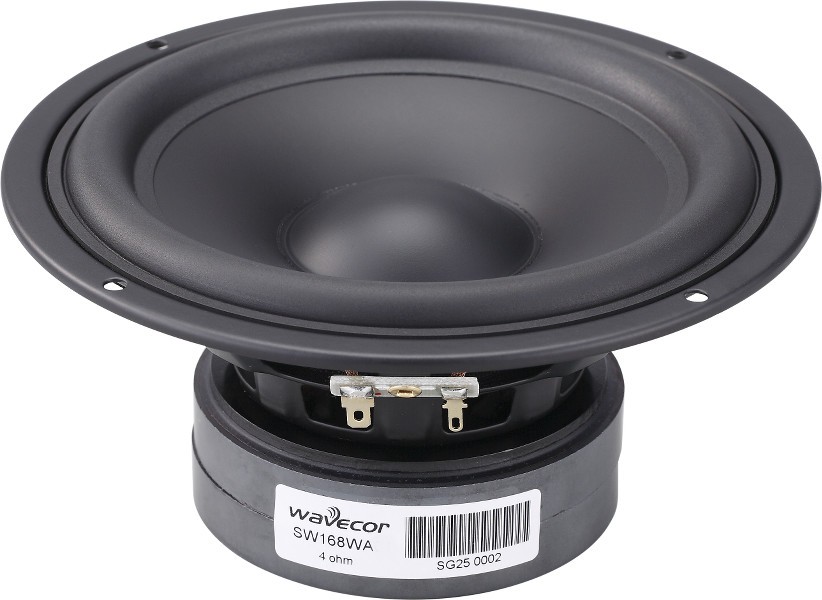

Wavecor SW168WA01 Paper cone subwoofer 4 Ohm



6½” High Performance Steel Frame Subwoofer Unit.
Suitable for dedicated subwoofer applications  and as low frequency transducer in 2½-, 3- and multi-way speaker systems.



FEATURES

  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Large linear stroke, ensuring low distortion at high output levels
  • Rigid paper cone to ensure piston motion even at high levels - for reduced distortion
  • Rigid steel chassis with extensive venting for lower air flow speed reducing audible distortion
  • Vented center pole with dual flares for reduced noise level at large cone excursions
  • Heavy-duty fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor structure for better control and power handling
  • Built-in alu field-stabilizing ring for reduced distortion at high levels
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black plated motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection
  • Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing



Specifications

  • power handling (continuous/programme) = 100 W

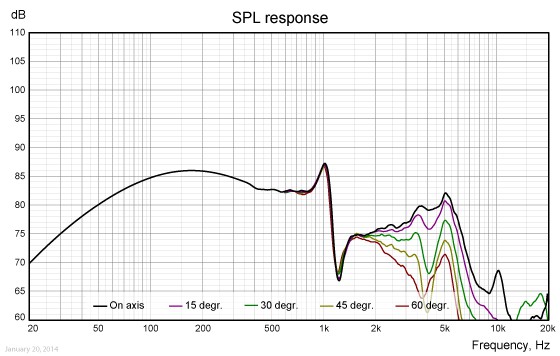

  • frequency range = 40-500 Hz
  • resonance frequency fs = 43 Hz

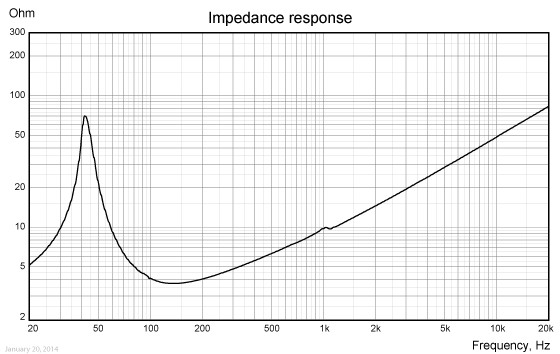

  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 32,5 g
  • equivalent volume of compliance Vas = 9,6 l
  • total Q factor Qts = 0,45 (Qms=10,2, Qes=0,47)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm

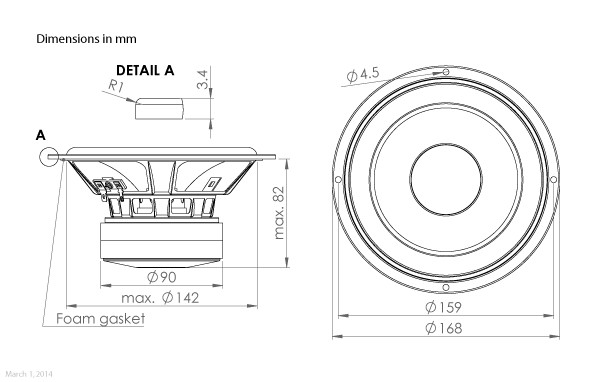

  • mounting diameter d = 142 mm
  • overall diameter d = 168 mm
  • mounting depth (not countersunk) t = 85,4 mm
  • mass m = 1,35 kg
