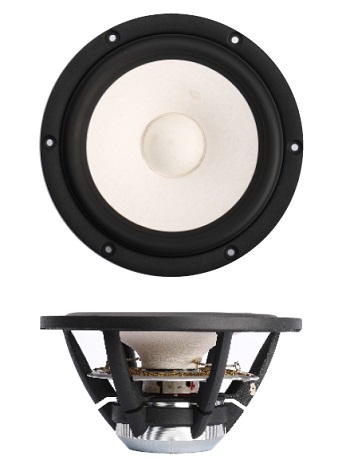

SB Acoustics SATORI MW16PNW-8

€184.45 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1382417
SB-Acoustics 6 1/2'' SATORI MW16PNW-8 Vented aerodynamic cast aluminum chassis for optimum... more
Product information "SB Acoustics SATORI MW16PNW-8"

SB-Acoustics 6 1/2'' SATORI MW16PNW-8

  • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimized low distortion neodymium motor system
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece for reduced compression
  • High piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

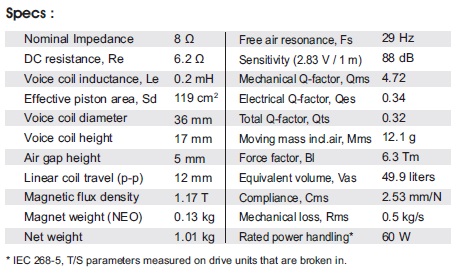

Specifications

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 29 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 6,3 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 12,4 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,33 (Qms=4,5, Qes=0,35)
  • voice coil diameter = 36 mm

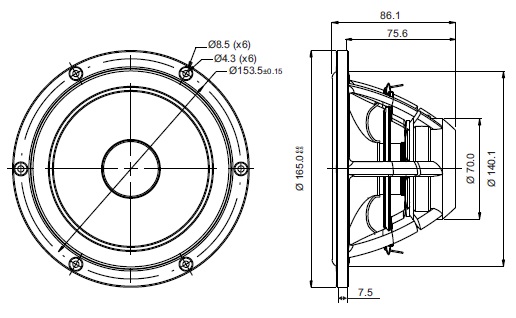

  • mounting diameter d = 136 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 75,57 mm
