Tangband 13-1761S

Tangband
Preview: Tangband 13-1761S Preview: Tangband 13-1761S response Preview: Tangband 13-1761S dimensions

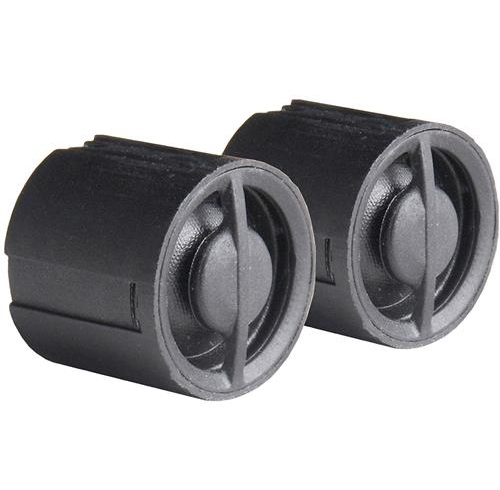

Tangband 13-1761S

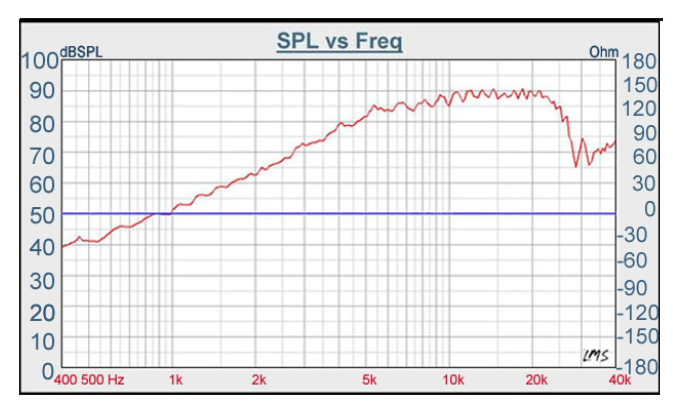

Tangband 13-1761S response

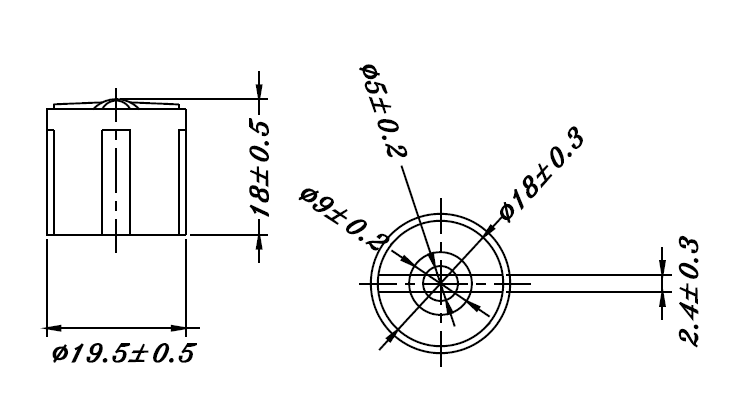

Tangband 13-1761S dimensions

€26.95 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: tb-13-1761s
Description Evaluations 0
Description
Tang Band's 13-1761S features a highly damped fabric diaphragm, neodymium magnet, and ferrofluid... more
Close menu
Product information "Tangband 13-1761S"

Tang Band's 13-1761S features a highly damped fabric diaphragm, neodymium magnet, and ferrofluid cooling. The tweeter's housing is small enough to fit within a 20 mm voice coil -- great for coaxial projects or anywhere a "micro" HF driver is required. Extremely smooth frequency response. Sold in pairs.



Specifications

  • power handling (continuous/programme) = 3,5/50 W
  • frequency range = 4000-20000 Hz
  • resonance frequency fs = 4000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,0 dB (2,83V; 1m)
  • DC resistance Re = 7 Ohm
  • voice coil diameter = 13,28 mm
  • mounting diameter d = 18 mm
  • overall diameter d = 19,5 mm
  • mounting depth (not countersunk) t = 18 mm



Sold in pairs
