Wavecor SW146WA02

€113.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • sw146wa02
Wavecor SW146WA02 Paper cone subwoofer 8 Ohm   5¾” High Performance Steel Frame... more
Product information "Wavecor SW146WA02"

Wavecor SW146WA02 Paper cone subwoofer 8 Ohm



5¾” High Performance Steel Frame Subwoofer Units.
Suitable for dedicated subwoofer applications  and as low frequency transducers in 2½-, 3- and multi-way speaker systems.



Features

  •  Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Large linear stroke, ensuring low distortion at high output levels
  • Rigid paper cones to ensure piston motion even at high levels - for reduced distortion
  • Rigid steel chassis’ with extensive venting for lower air flow speed reducing audible distortion
  • Vented center pole with dual flares for reduced noise level at large cone excursions
  • Heavy-duty fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor structures for better control and power handling
  • Built-in alu field-stabilizing rings for reduced distortion at high levels
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black plated motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection
  • Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing



Specifications

  • power handling (continuous/programme) = 55 W
  • frequency range = 40-1000 Hz
  • resonance frequency fs = 54 Hz

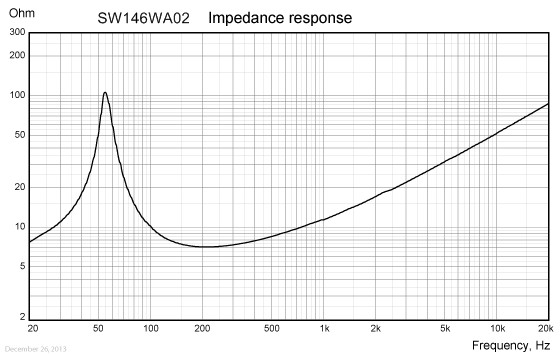

  • impedance R = 8 Ohm

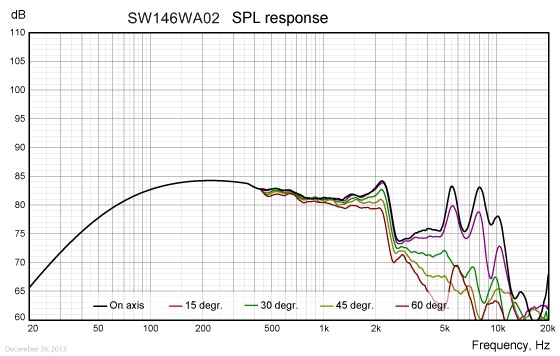

  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 7,8 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 85 cm2
  • effective mechanical mass incl. air load mms = 16,2 g
  • equivalent volume of compliance Vas = 5,5 l
  • total Q factor Qts = 0,54 (Qms=9, Qes=0,57)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm

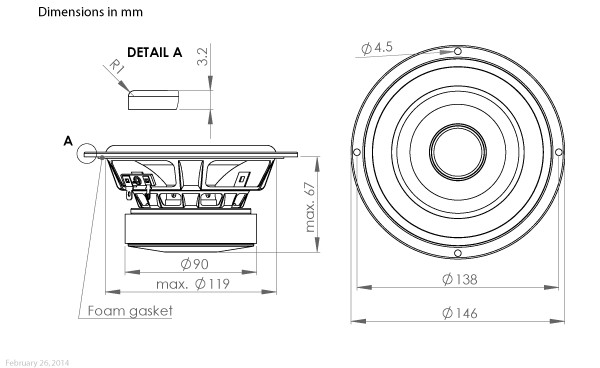

  • mounting diameter d = 119 mm
  • overall diameter d = 146 mm
  • mounting depth (not countersunk) t = 70,2 mm
  • mass m = 1,1 kg
