Tangband W3-881SJF

€23.00 * €27.00 * (14.81% Saved)

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • tbW3-881sjf
The Tang Band W3-881SJF is an exceptional 3" transducer that features a PPM cone, Santoprene... more
Product information "Tangband W3-881SJF"

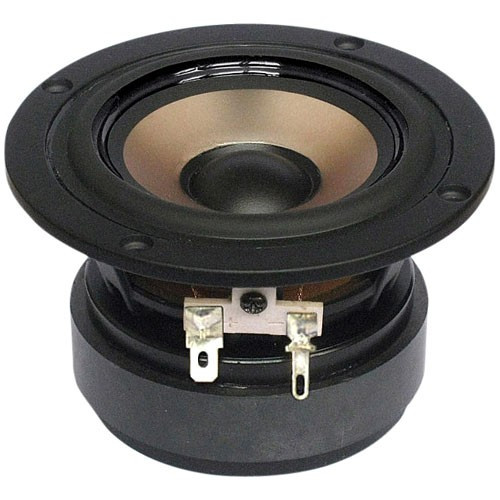

The Tang Band W3-881SJF is an exceptional 3" transducer that features a PPM cone, Santoprene surround, cast aluminum frame, and powerful underhung-design ceramic motor. Its copper-clad aluminum wire voice coil is wound on a polyimide former, the combination of which provides high power handling and extended HF response. The W3-881SJF is an ideal choice for single driver full-range applications, as well as deployment in multiple speaker configurations such as line arrays.



Product Specifications
  • Nominal Diameter 3"
  • Power Handling (RMS)15 Watts

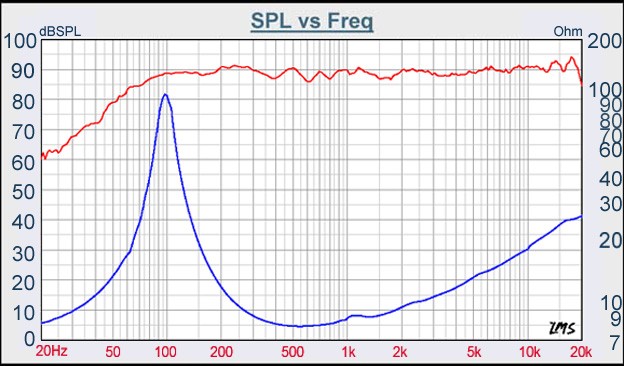

  • Frequency Response100 to 20,000 Hz
  • Sensitivity88 dB 1W/1m
  • Voice Coil Diameter 20.4mm
Thiele-Small Parameters
  • Resonant Frequency (Fs) 100 Hz
  • DC Resistance (Re) 6.6 ohms
  • Voice Coil Inductance (Le) 0.8 mH
  • Mechanical Q (Qms) 6.44
  • Electromagnetic Q (Qes) 0.41
  • Total Q (Qts) 0.39
  • Compliance Equivalent Volume (Vas) 1.89 l.
  • Mechanical Compliance of Suspension (Cms) 1.32 mm/N
  • BL Product (BL) 4.47 Tm
  • Diaphragm Mass Inc. Airload (Mms) 2g
  • Maximum Linear Excursion (Xmax) 0.5 mm
  • Surface Area of Cone (Sd) 32 cm²
