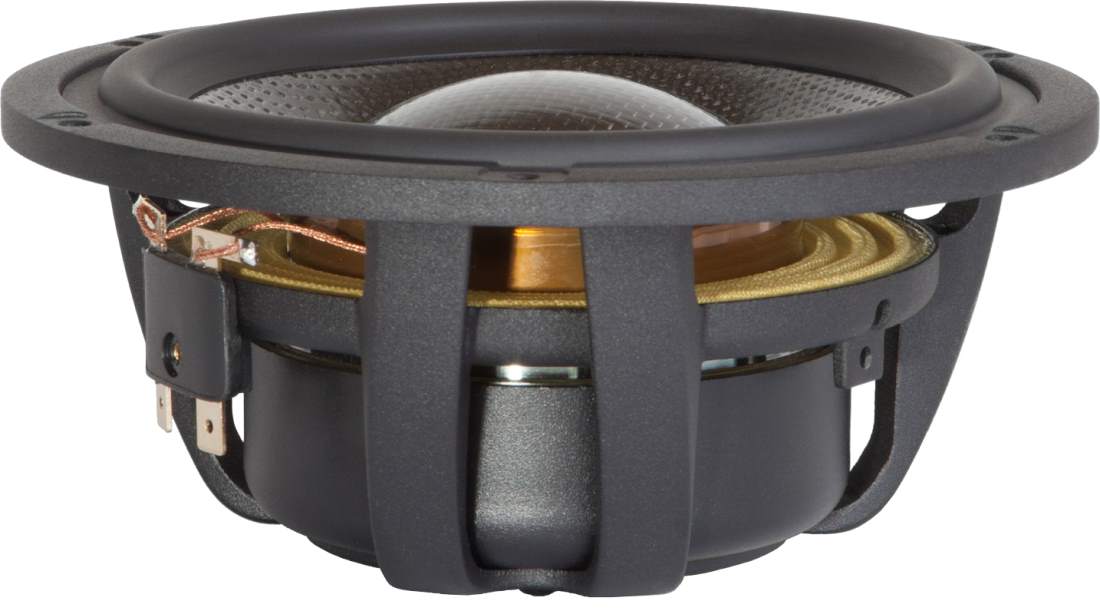

Morel TSCM 634

€379.58 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 754078
The 6" TSCM 634 features an huge underhung 3" Hexatech™ aluminum underhung voice coil (that uses... more
Product information "Morel TSCM 634"

The 6" TSCM 634 features an huge underhung 3" Hexatech™ aluminum underhung voice coil (that uses hexagonal shaped wire for high sensitivity and power handling) wound onto an titanium bobbin for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised, and allows for a wider range of enclosure options. A Hybrid™ neodymium/ferrite Coppersleeve motor imparts high BL onto the voice coil while the copper-sleeved pole piece further reduces inductance.



Specifications

  • power handling (continuous/programme) = 150 W
  • frequency range = 50-18000 Hz
  • resonance frequency fs = 49 Hz

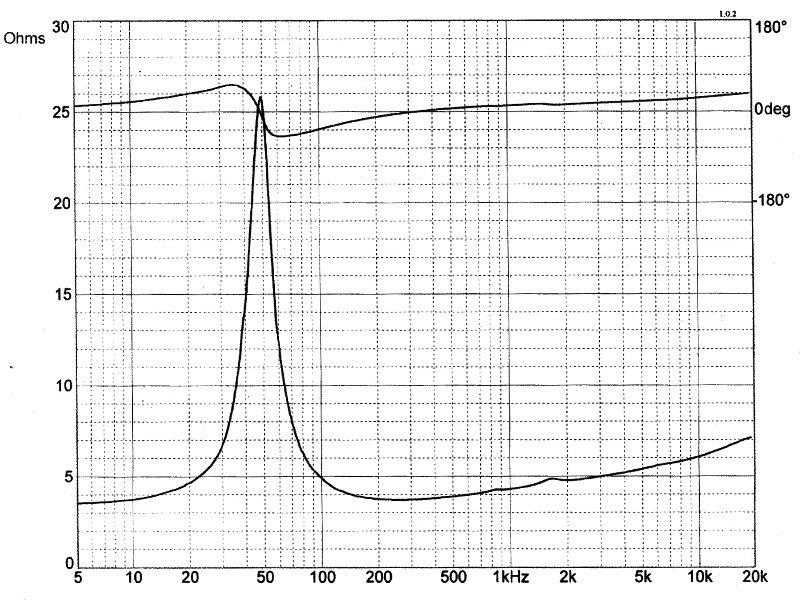

  • impedance R = 4 Ohm

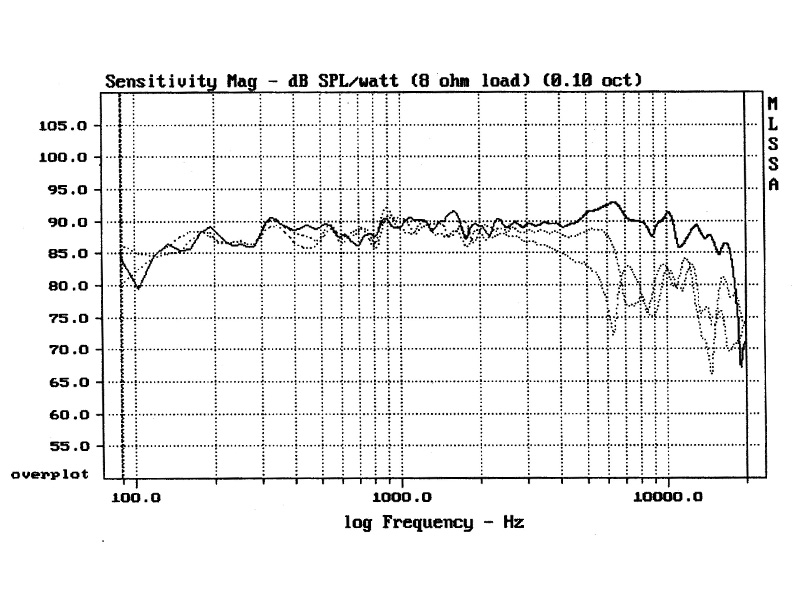

  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 5,09 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 15,3 g
  • equivalent volume of compliance Vas = 13,3 l
  • total Q factor Qts = 0,49 (Qms=4,25, Qes=0,56)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm

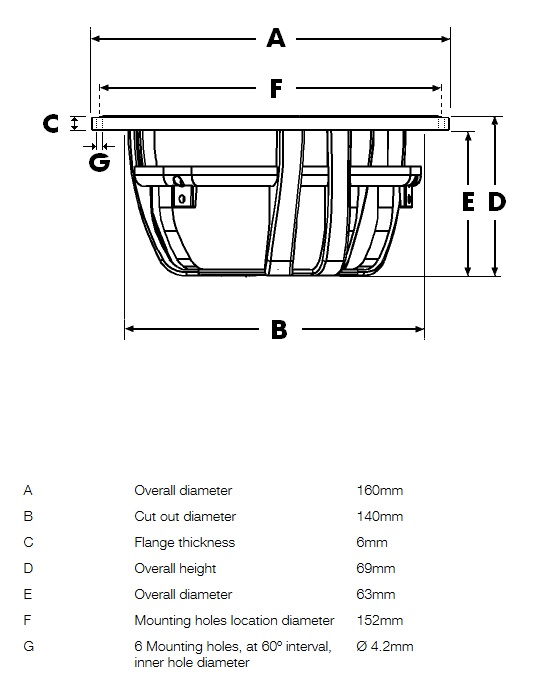

  • mounting diameter d = 140 mm
  • overall diameter d = 160 mm
  • mounting depth (not countersunk) t = 63 mm
