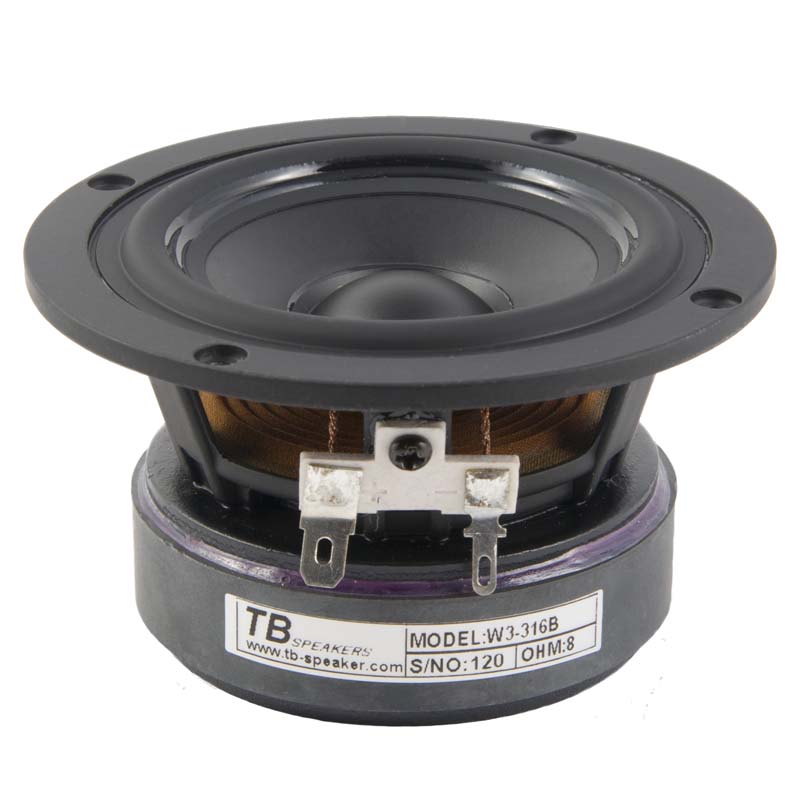

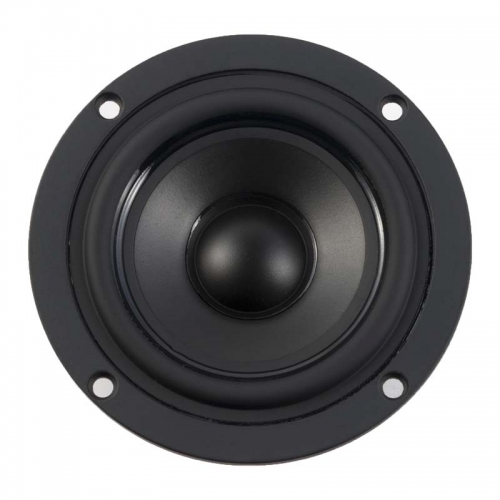

Tangband W3-316B

€25.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • tbW3-316B
Tangband W3-316B FULL RANGE FREQUENCY RESPONSE DIE CAST BASKET PPM CONE WITH SANTOPRENE... more
Product information "Tangband W3-316B"

Tangband W3-316B

  • FULL RANGE FREQUENCY RESPONSE
  • DIE CAST BASKET
  • PPM CONE WITH SANTOPRENE SURROUND
  • CCAW WITH KAPTON BOBBIN
  • VENTED BASKET UNDER SPIDER



Specifications

  • power handling (continuous/programme) = 15/30 W

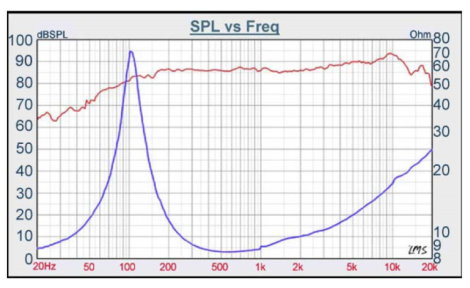

  • frequency range = 100-20000 Hz
  • resonance frequency fs = 100 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 4,37 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 32 cm2
  • effective mechanical mass incl. air load mms = 2 g
  • equivalent volume of compliance Vas = 1,72 l
  • total Q factor Qts = 0,43 (Qms=6,68, Qes=0,46)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 1,3 mm

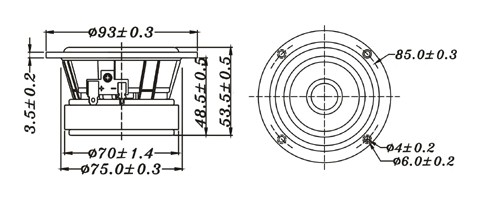

  • mounting diameter d = 75 mm
  • overall diameter d = 93 mm
  • mounting depth (not countersunk) t = 48,5 mm
