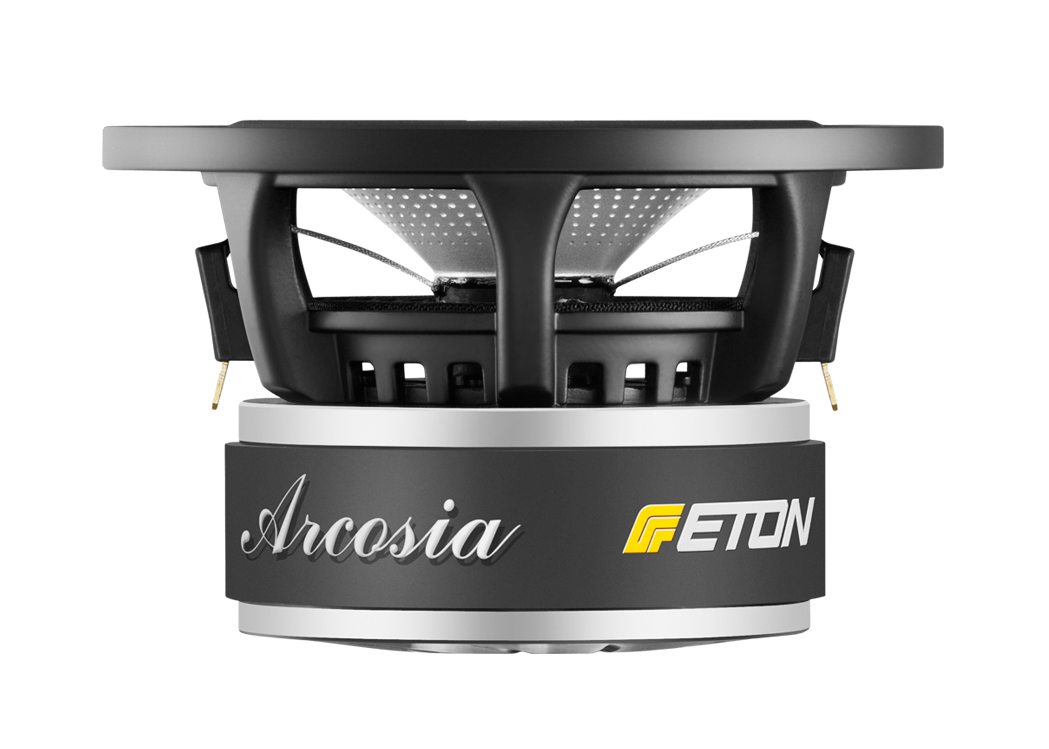

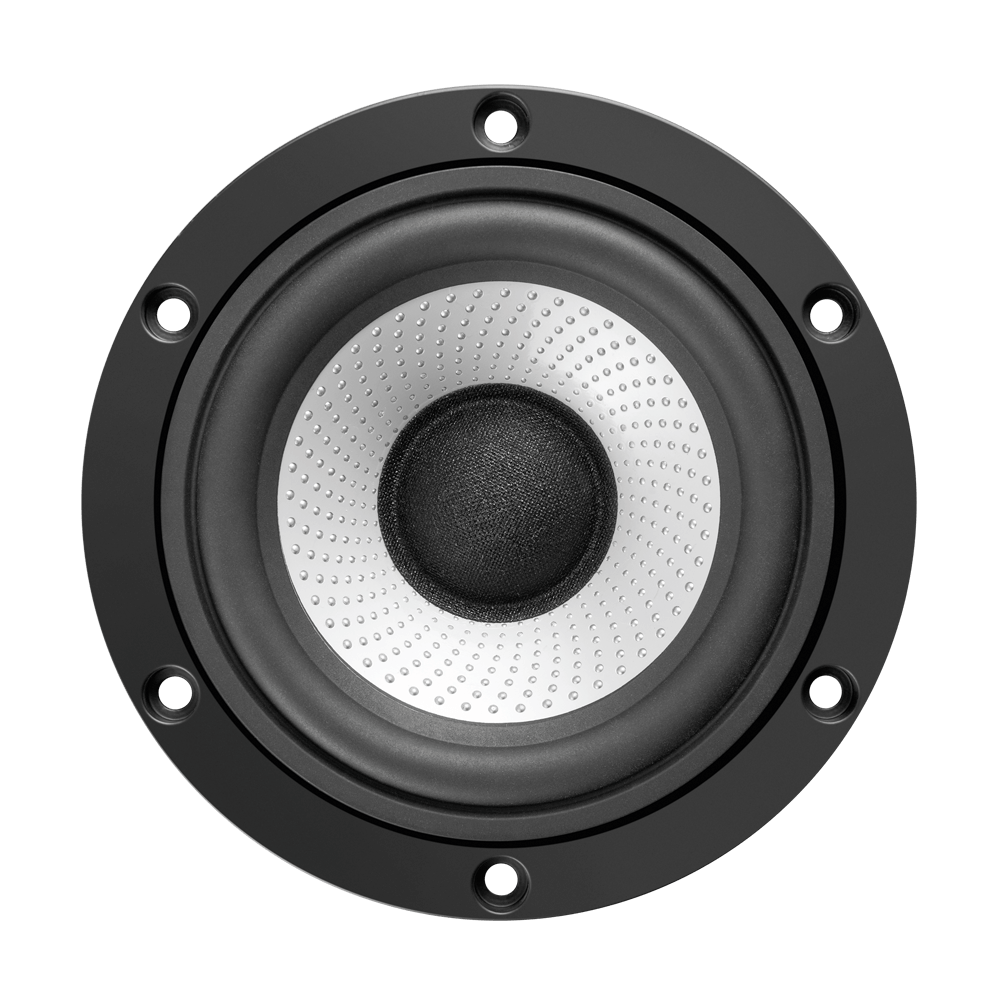

Eton 4-208 Arcosia

€389.99 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1381350
The dynamical cone geo-metry built with Magnesium composite materials createsan authentical... more
Product information "Eton 4-208 Arcosia"

The dynamical cone geo-metry built with Magnesium composite materials createsan authentical sound.The hand coated dustcap plus the airflow optimized motor design supportsthe balanced and detailed sound impression.



Specifications

  • power handling (continuous/programme) = 50 W
  • frequency range = 70-20000 Hz
  • resonance frequency fs = 53 Hz
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • impedance R = 8 Ohm
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 4,3 N/A
  • voice coil inductance L = 0,35 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 4,5 g
  • equivalent volume of compliance Vas = 7,0 l
  • total Q factor Qts = 0,39 (Qms=6,11, Qes=0,42)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 122 mm
  • overall diameter d = 96 mm
  • mounting depth (not countersunk) t = 69 mm
