Wavecor SW070WA02

€68.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • sw070wa02
Wavecor SW070WA02 2¾" neodymium, alu-cone subwoofer 8 Ohm   The 2¾” transducers... more
Product information "Wavecor SW070WA02"

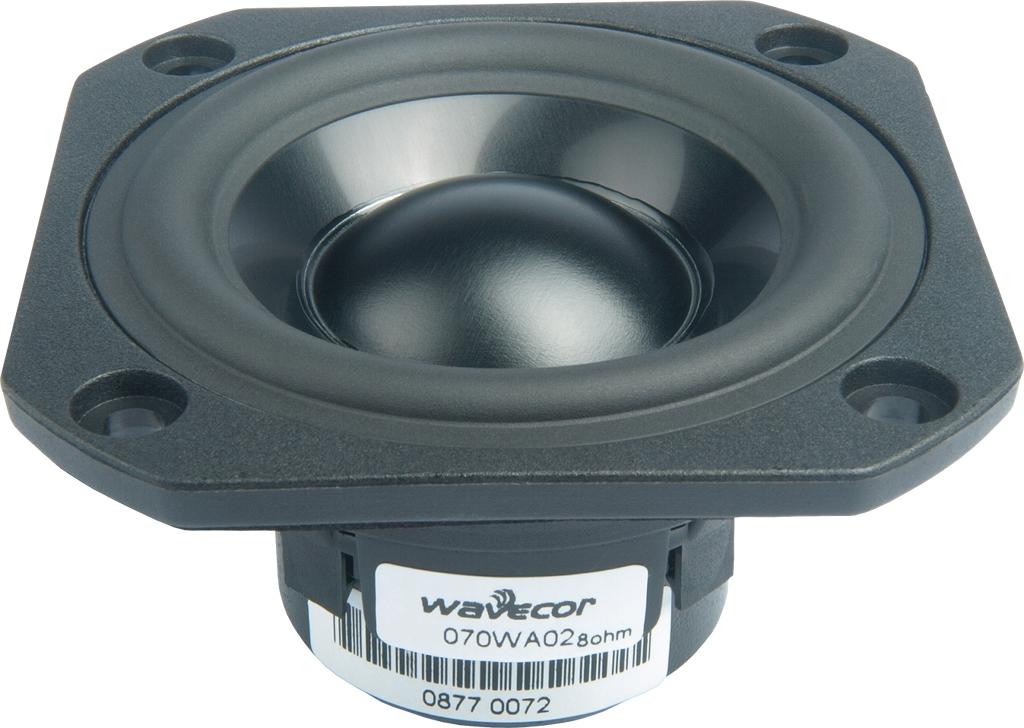

Wavecor SW070WA02 2¾" neodymium, alu-cone subwoofer 8 Ohm



The 2¾” transducers SW070WA01 (4 ohm) and SW070WA02 (8 ohm) were designed especially for high quality multimedia and lifestyle speakers, where space otherwise usually does not allow for “real bass”. Ideal for combining with the Wavecor FR070WA 2¾” fullranges or any good tweeter.



Features

  • True subwoofer design for vented or sealed enclosures
  • Dual neodymium magnet structure for high efficiency and almost ideal magnetically shielding
  • Black anodized alu cone for better heat transfer
  • Vented polymer chassis for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 26 mm voice coil diameter for better control and power handling
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions

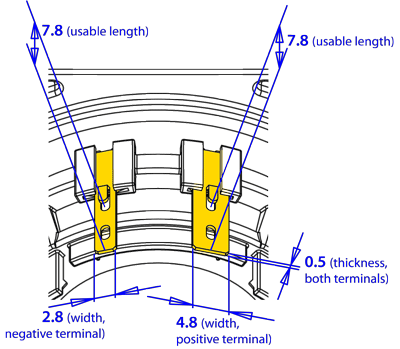

  • Gold plated terminals to ensure long-term trouble free connection



Specifications

  • power handling (continuous/programme) = 10 W
  • frequency range = 80-5000 Hz
  • resonance frequency fs = 76 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 81 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 4,75 N/A
  • voice coil inductance L = 0,28 mH
  • effective piston radiating area Sd = 22 cm2
  • effective mechanical mass incl. air load mms = 3,4 g
  • equivalent volume of compliance Vas = 0,89 l
  • total Q factor Qts = 0,43 (Qms=5,7, Qes=0,46)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm

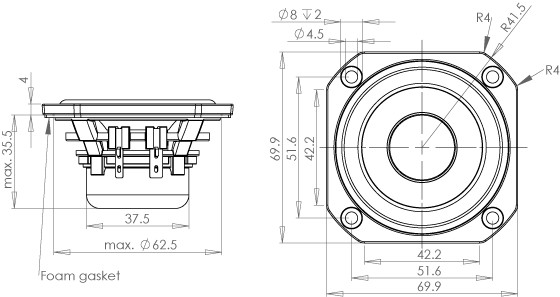

  • mounting diameter d = 62,5 mm
  • overall diameter d = 69,9x69,9 mm
  • mounting depth (not countersunk) t = 39,5 mm
  • mass m = 0,16 kg
