Vifa BC25SC-06/04

€21.40 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 7235212
Vifa BC25SC06-04 1" tweeters features a damped fabric dome for smooth frequency response... more
Product information "Vifa BC25SC-06/04"

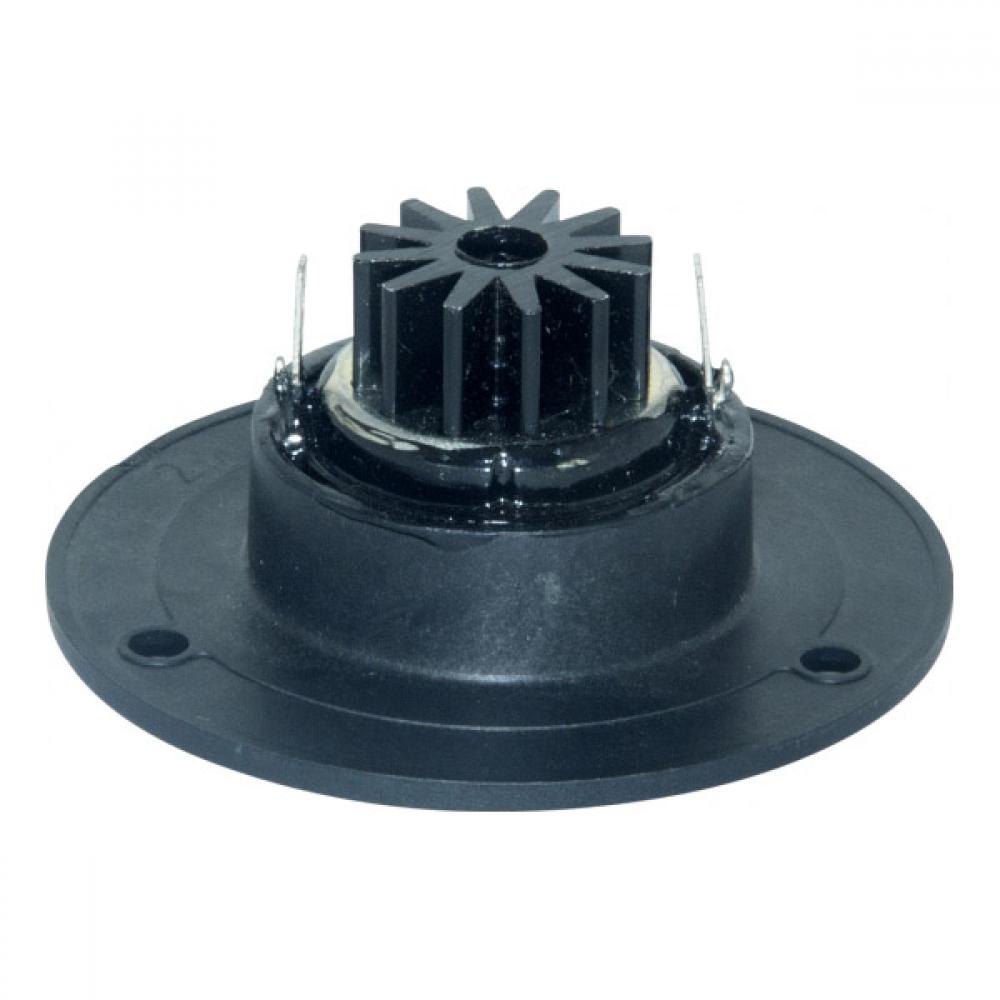

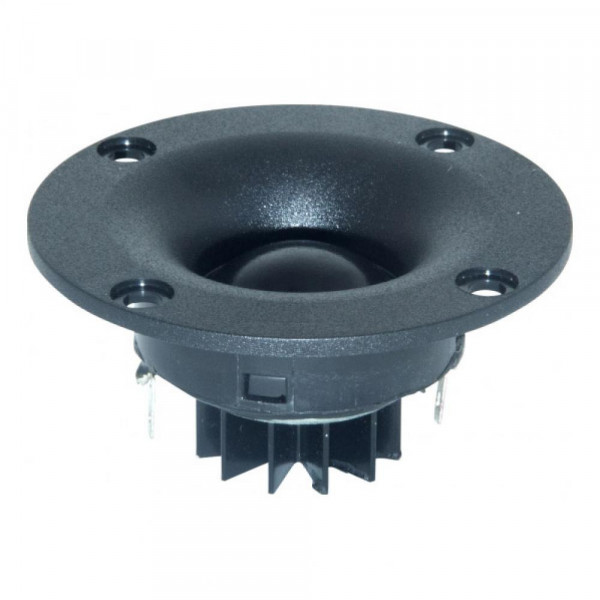

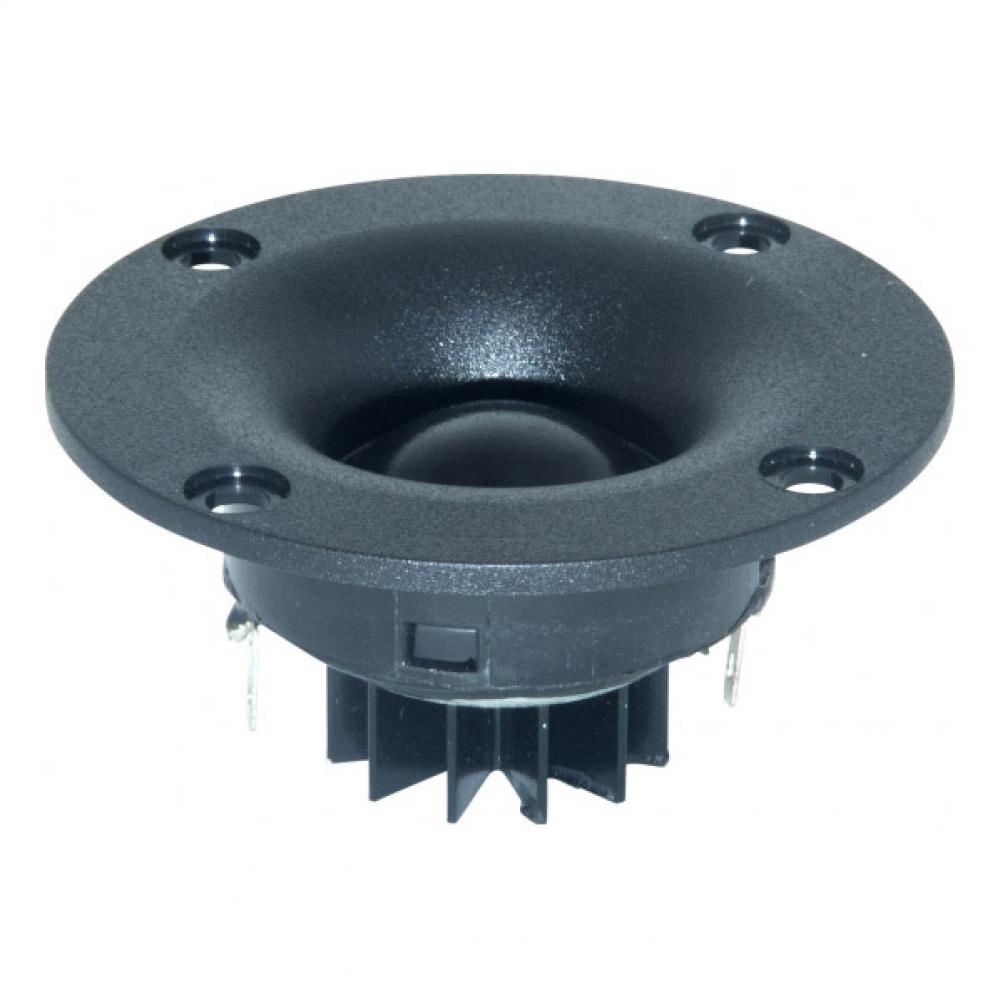

Vifa BC25SC06-04 1" tweeters features a damped fabric dome for smooth frequency response performance and ferrofluid in the gap of the NdFeB magnet motor,providing enhanced cooling of the voice coil. BC tweeters come with a compact faceplate with recessed mounting holes,complete with sealing gasket which helps reduce vibration between baffle and driver.



Specifications

  • power handling (continuous/programme) = 25 W
  • frequency range = 2500-20000 Hz
  • resonance frequency fs = 1395 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 96,2 dB (2,83V; 1m)
  • DC resistance Re = 2,76 Ohm
  • force factor BL = 2,05 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 4,9 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 1,17 (Qms=3,45, Qes=1,76)
  • voice coil diameter = 25 mm

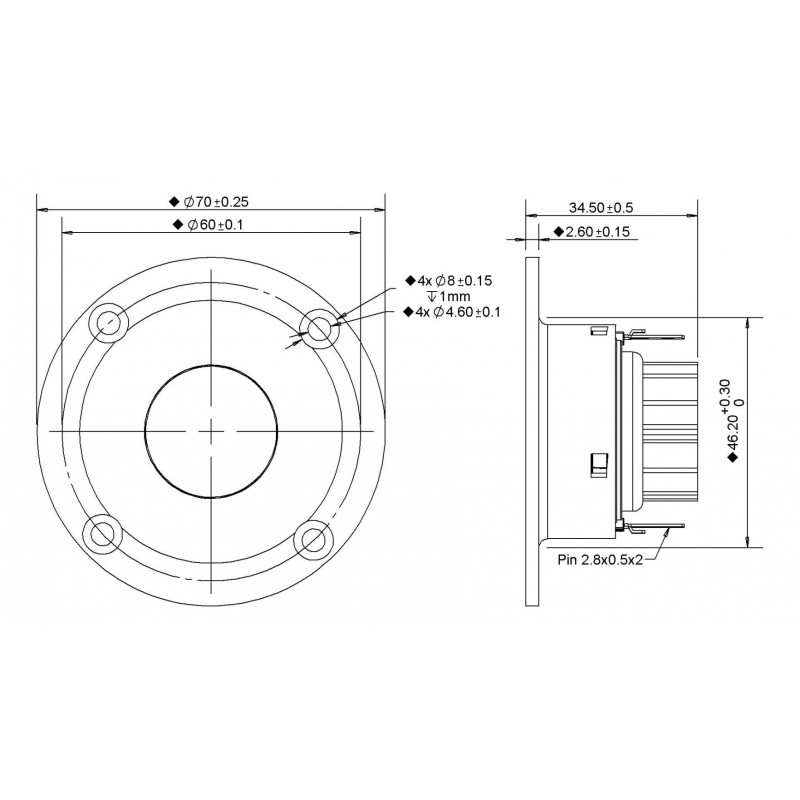

  • mounting diameter d = 46,2 mm
  • overall diameter d = 70 mm
  • mounting depth (not countersunk) t = 34,5 mm
