Vifa BC25SC-08/04

€27.10 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7235215
Vifa BC25SC-08/04 25mm Softdome Tweeter This BC family tweeter features a 4 ohm 25 mm voice... more
Product information "Vifa BC25SC-08/04"

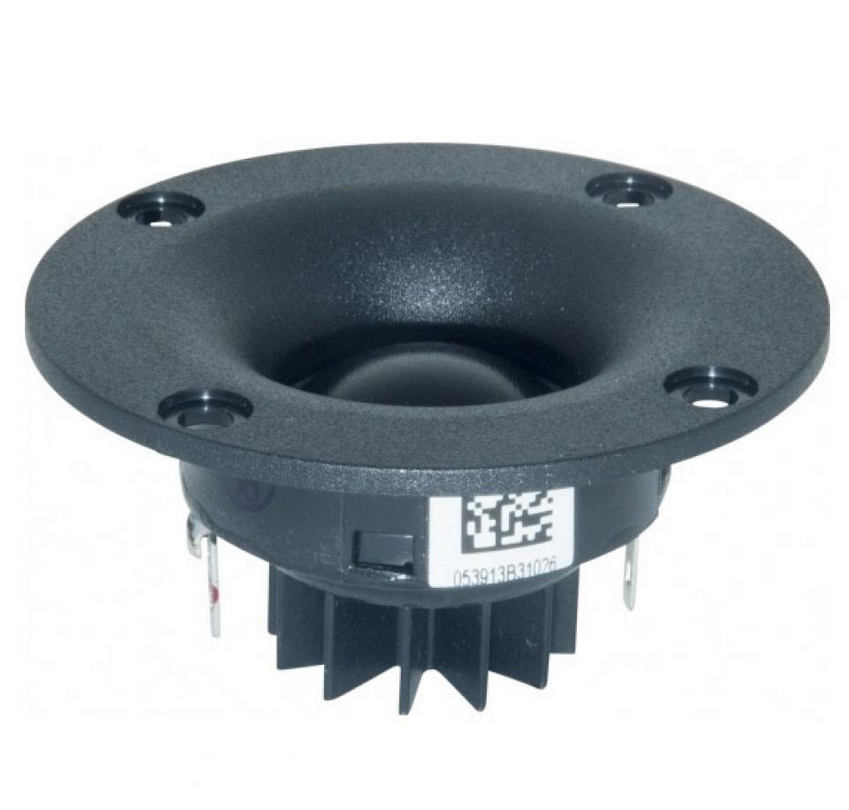

Vifa BC25SC-08/04 25mm Softdome Tweeter

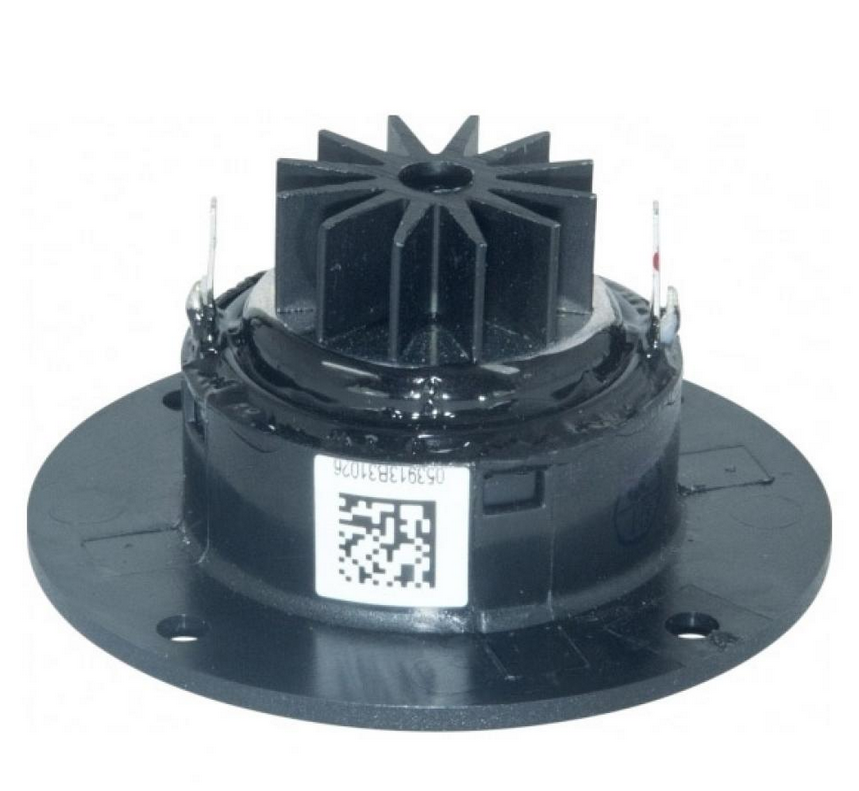

This BC family tweeter features a 4 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the NdFeB motor, providing enhanced cooling of the voice coil. The tweeter comes with a compact faceplate with recessed mounting holes.A finned heat sink has been added for improved power handling.



Specifications

  • power handling (continuous/programme) = 100 W

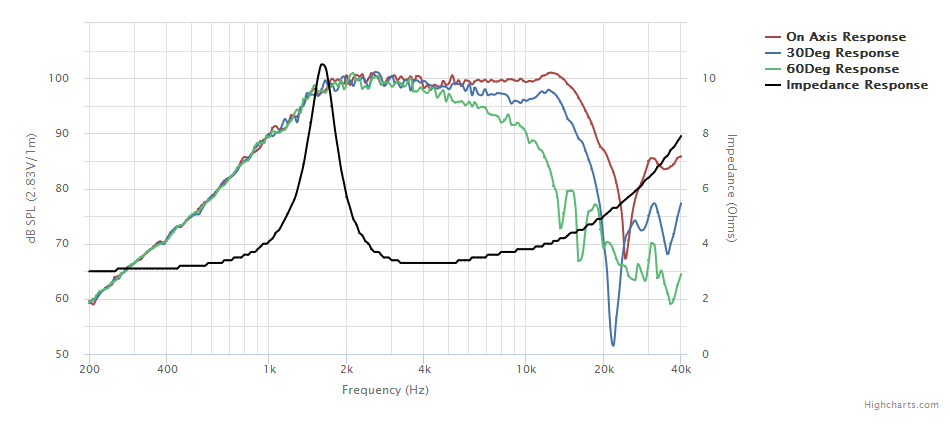

  • frequency range = 2500-20000 Hz
  • resonance frequency fs = 1663 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 96,2 dB (2,83V; 1m)
  • DC resistance Re = 2,79 Ohm
  • force factor BL = 1,98 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 5,1 cm2
  • effective mechanical mass incl. air load mms = 0,2 g
  • total Q factor Qts = 1,17 (Qms=4,93, Qes=1,53)
  • voice coil diameter = 25 mm

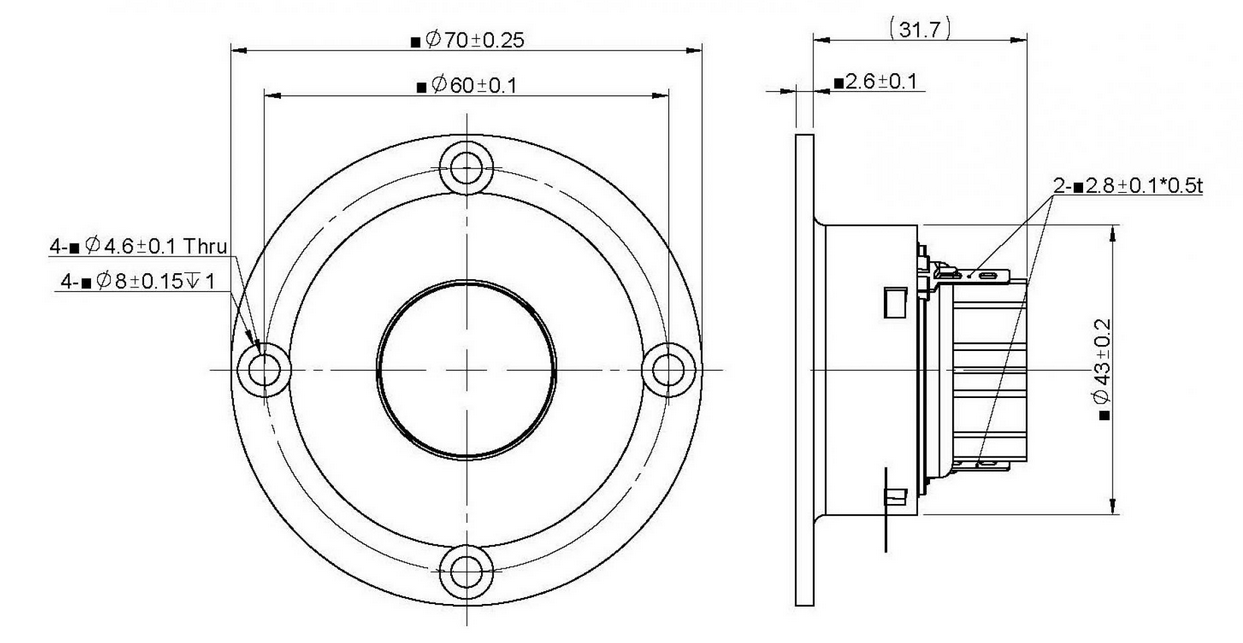

  • mounting diameter d = 46,2 mm
  • overall diameter d = 70 mm
  • mounting depth (not countersunk) t = 31,7 mm
