SB Acoustics SATORI MR16PNW-8

€204.29 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1382475
SB-Acoustics 6 1/2'' SATORI MR16PNW-8 Vented aerodynamic cast aluminium chassis for optimum... more
Product information "SB Acoustics SATORI MR16PNW-8"

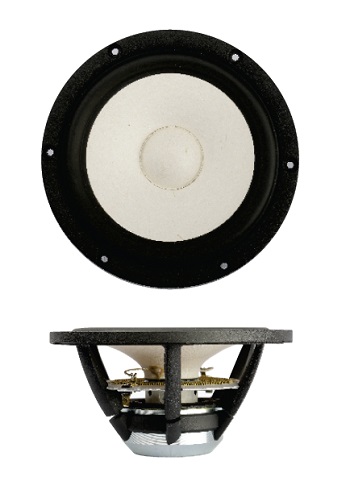

SB-Acoustics 6 1/2'' SATORI MR16PNW-8

  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression.
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house.
  • Soft low damping rubber surround for optimum transient response.
  • Advanced BIMAX spider for improved linearity.
  • Powerful optimized low distortion neodymium motor system.
  • Non-conducting fibre glass voice coil former for minimum damping.
  • Extended copper sleeve on pole piece for low inductance and reduced distortion.
  • CCAW voice coil for reduced moving mass.
  • Long life silver lead wires attached 180° apart for improved stability.
  • Vented pole piece and coil former for reduced compression.
  • High piston to chassis diameter ratio.
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.
  • Mode balanced cone for reduced break-up.

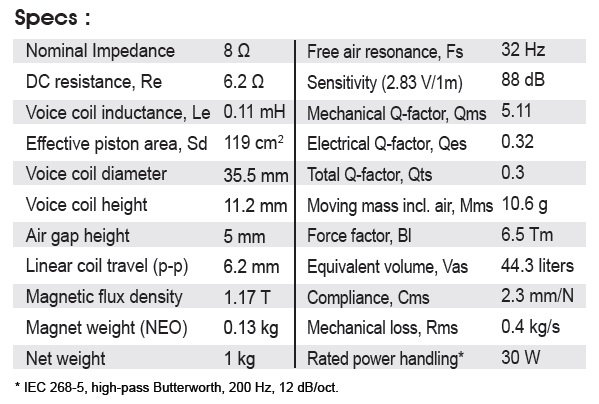

Specifications

  • power handling (continuous/programme) = 30 W
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6.2 Ohm
  • force factor BL = 6.5 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 10.6 g
  • equivalent volume of compliance Vas = 44.3 l
  • total Q factor Qts = 0,30 (Qms=5.11, Qes=0,32)
  • voice coil diameter = 36 mm

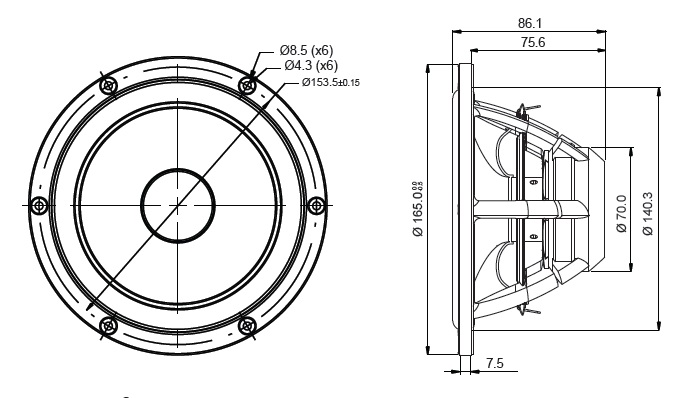

  • mounting diameter d = 136 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 75,57 mm
