- Order number: hivi-tn25
High-end natural fiber dome membrane. Flat frequency response, could reach 25 KHz in high... more

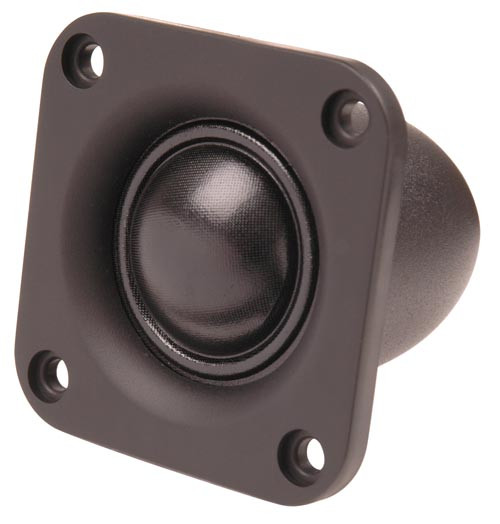

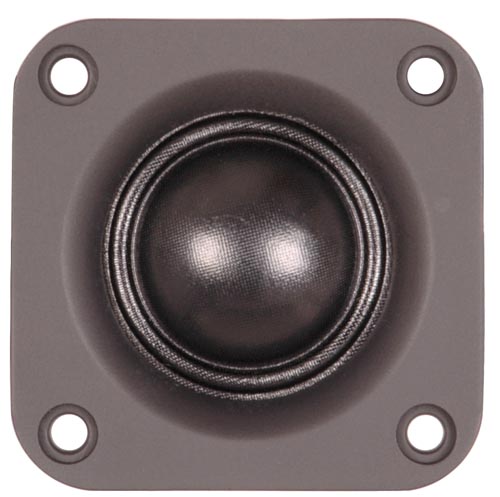

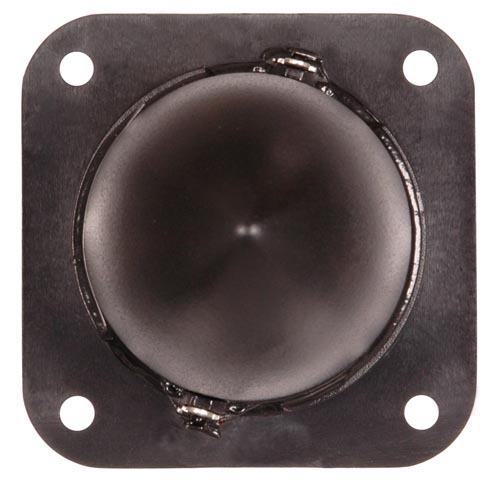

Product information "HiVi TN25"
High-end natural fiber dome membrane.

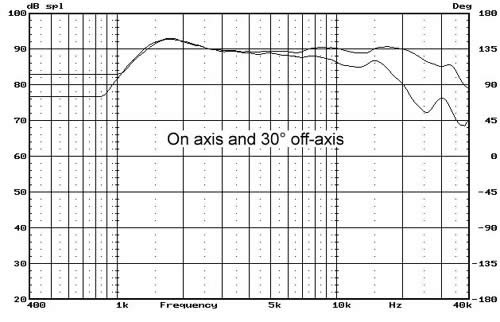

Flat frequency response, could reach 25 KHz in high frequency range.
High-performance, shielded Neodymium magnets; sandwich antimagnetic structure, effectively suppresses the leakage magnetic field, forming a small linear uniform magnetic field.
Heat-resistant, high power handling ferro fluid cooled voice coil with aluminum alloy former and aluminum voice coil wire coated with copper.
Sound absorption rear acoustic chamber design decreases the non-linear distortion near the resonance frequency;
TN25 can be used as a tweeter of center channel speaker or surround speaker in a home theater system.
Specifications

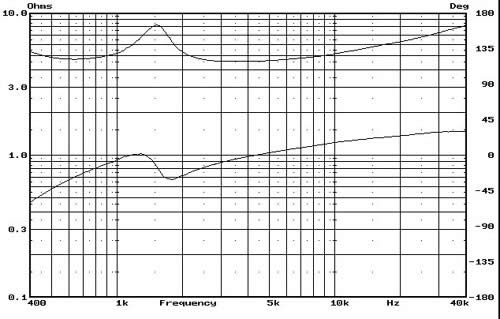

| Nominal Impedance (Z)(Ω) : | 5 | |
| Resonance Frequency (Fs)(Hz) : | 1500 | |
| Nominal Power Handling (Pnom)(W) : | 15 | |
| Sensitivity (2.83v/1m)(dB) : | 90 | |
| Weight (M)(Kg) : | 0.09 | |
| VC Diameter (mm) : | 25 | |
| DC (Re)(Ω) : | 4.6 | |
| VC Layers : | 2 | |
| VC Former : | CCAW | |
| VC Frame : | ALuminum | |
| Magnet System : | Shielded | |
| Magnet Former : | Neodymium | |
| Recommended Crossover Frequency(Hz) : | >2000 | |
