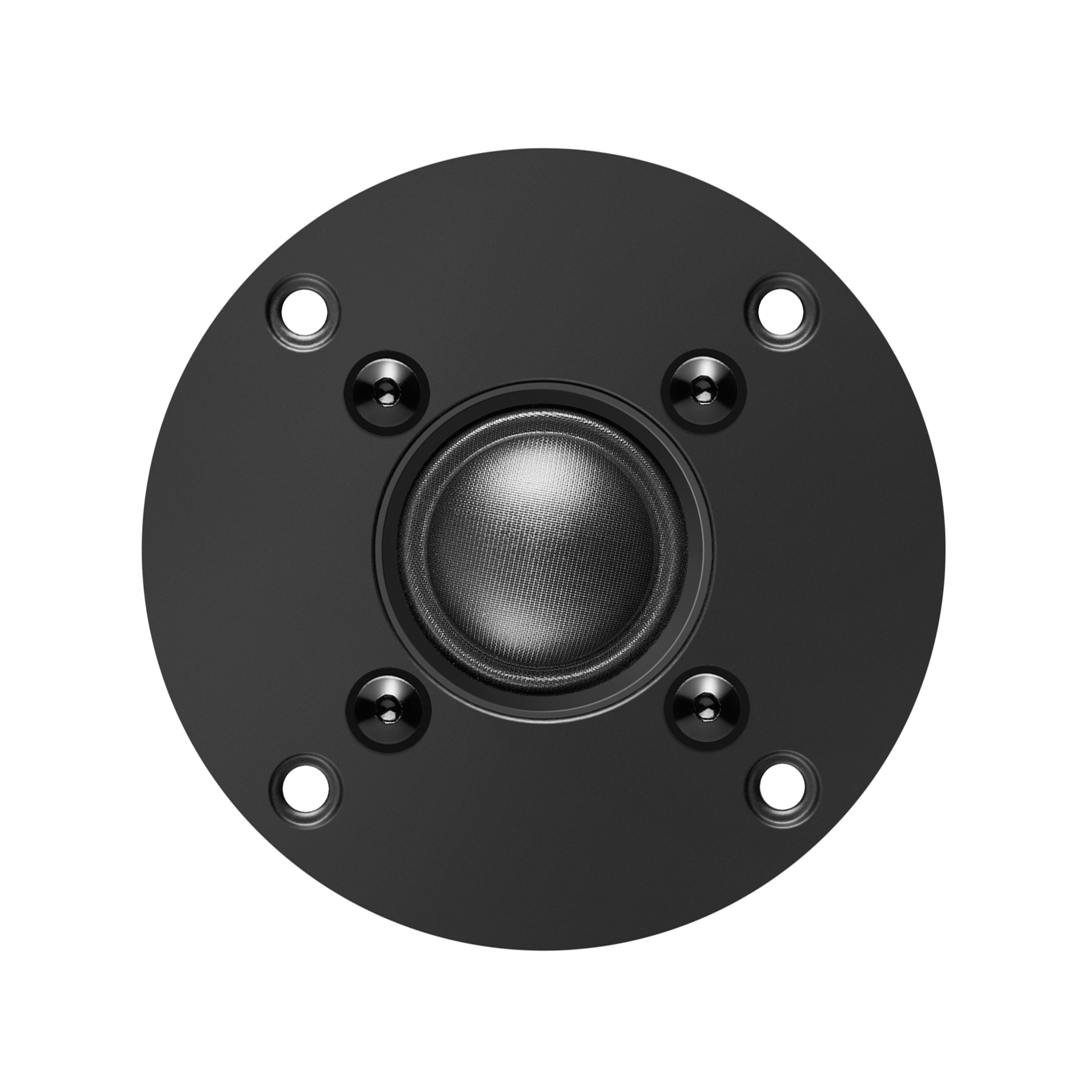

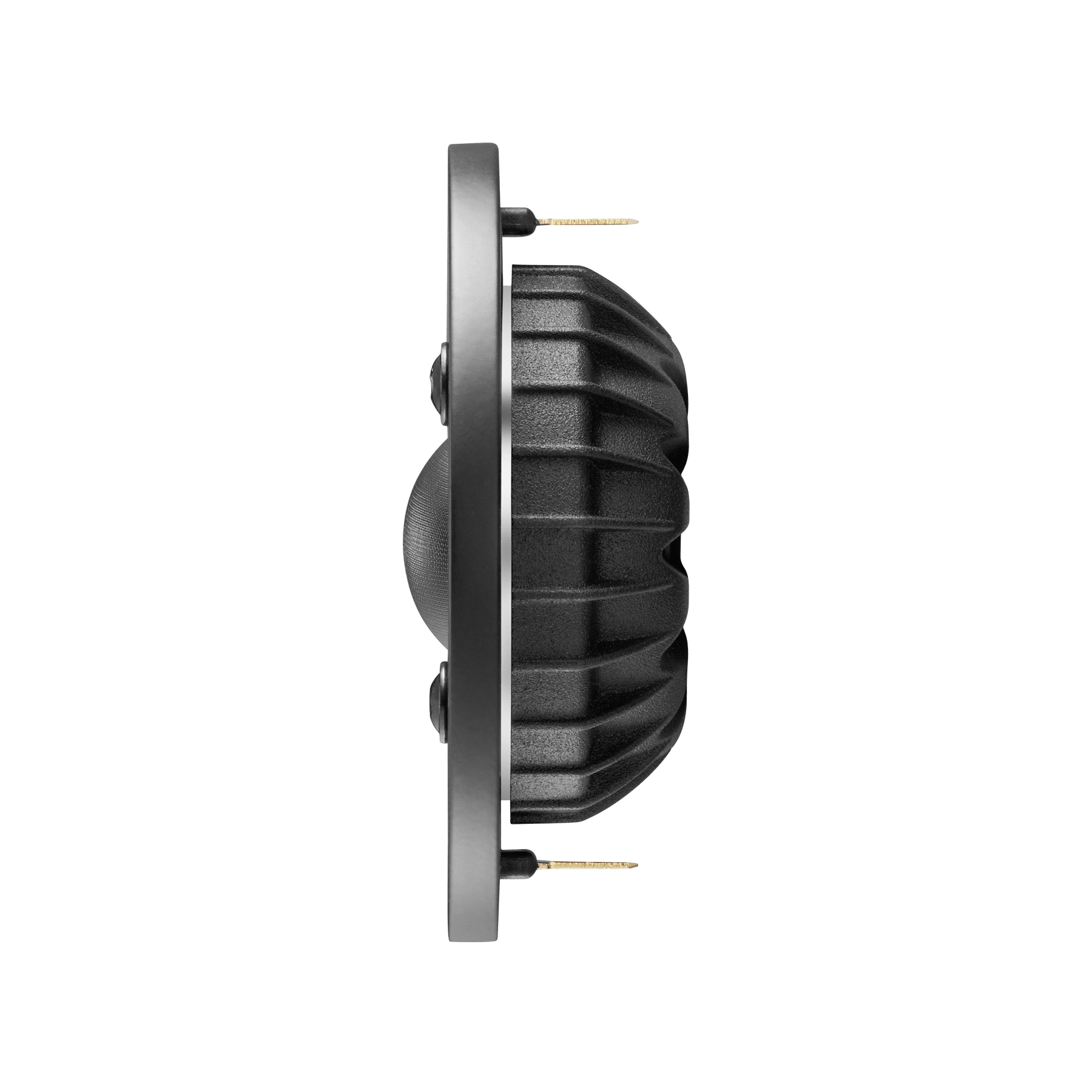

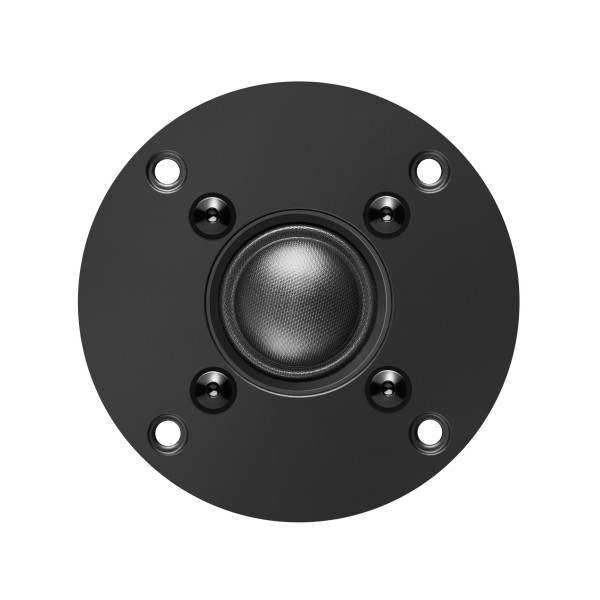

Eton 25 SD 4

Specifications

Nominal impedance Zn 8 Ω

DC resistance Re 6.8 Ω

Resonance frequency 1W fr 670 Hz

Resonance frequency TSP fr - Hz

Suspension compliance CMS - mm/N

Mechanical Q Qms -

Electrical Q Qes -

Total Q Qts -

Mechanical resistance RMS - kg/s

Total moving mass (incl. air mass) MMD 0.22 g

Effective piston area SD 6.8 cm2

Voice coil inductance Le 0.02 mH

Force factor BLxl 3.7 Tm

Xmax electrical +/- 0.4 mm

Xmax mechanical +/- 1.2 mm

Equivalent volume VAS - dm3

Characteristic SPL 1W/1m 92 dB SPL

Rated power 100* W
