Vifa NE25-VTS-04

€43.47 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 7235121
Vifa NE25VTS-04 19mm Fabric tweeter The 25 mm 4 ohm member of the NE family has leading-edge... more
Product information "Vifa NE25-VTS-04"

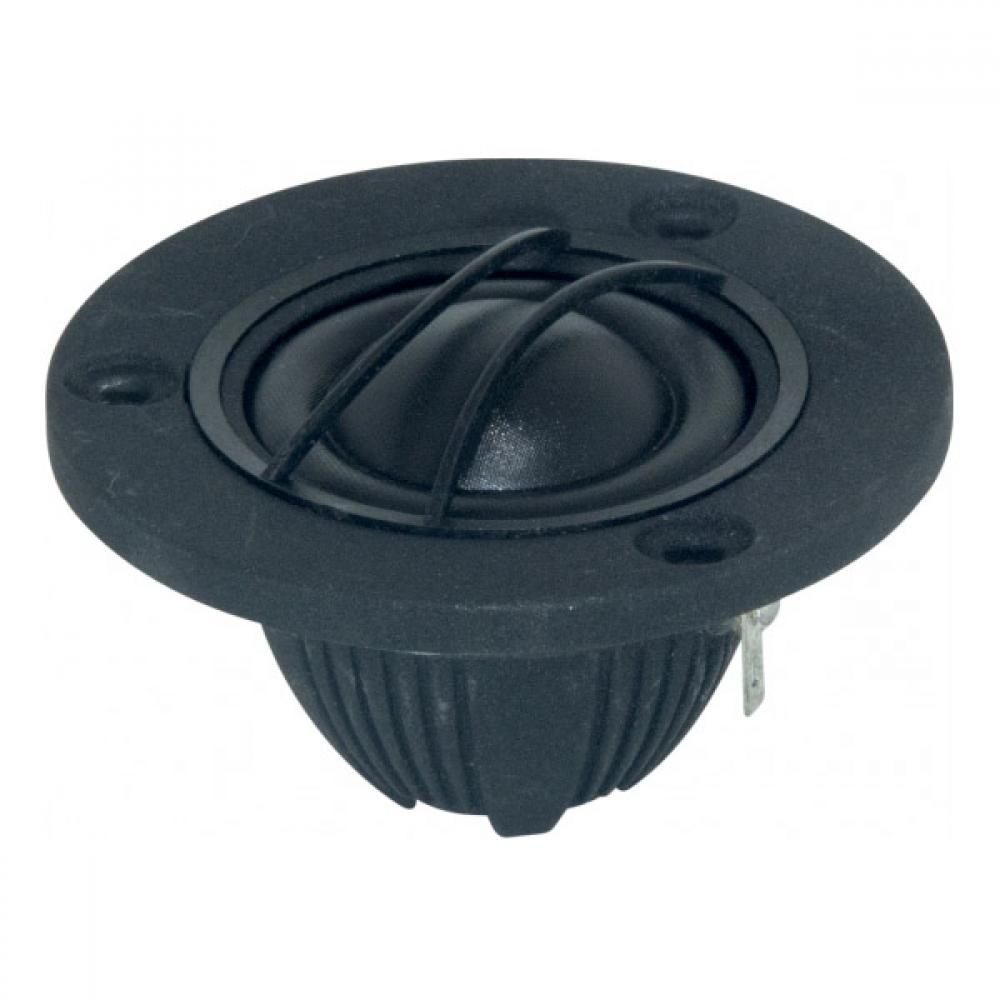

Vifa NE25VTS-04 19mm Fabric tweeter

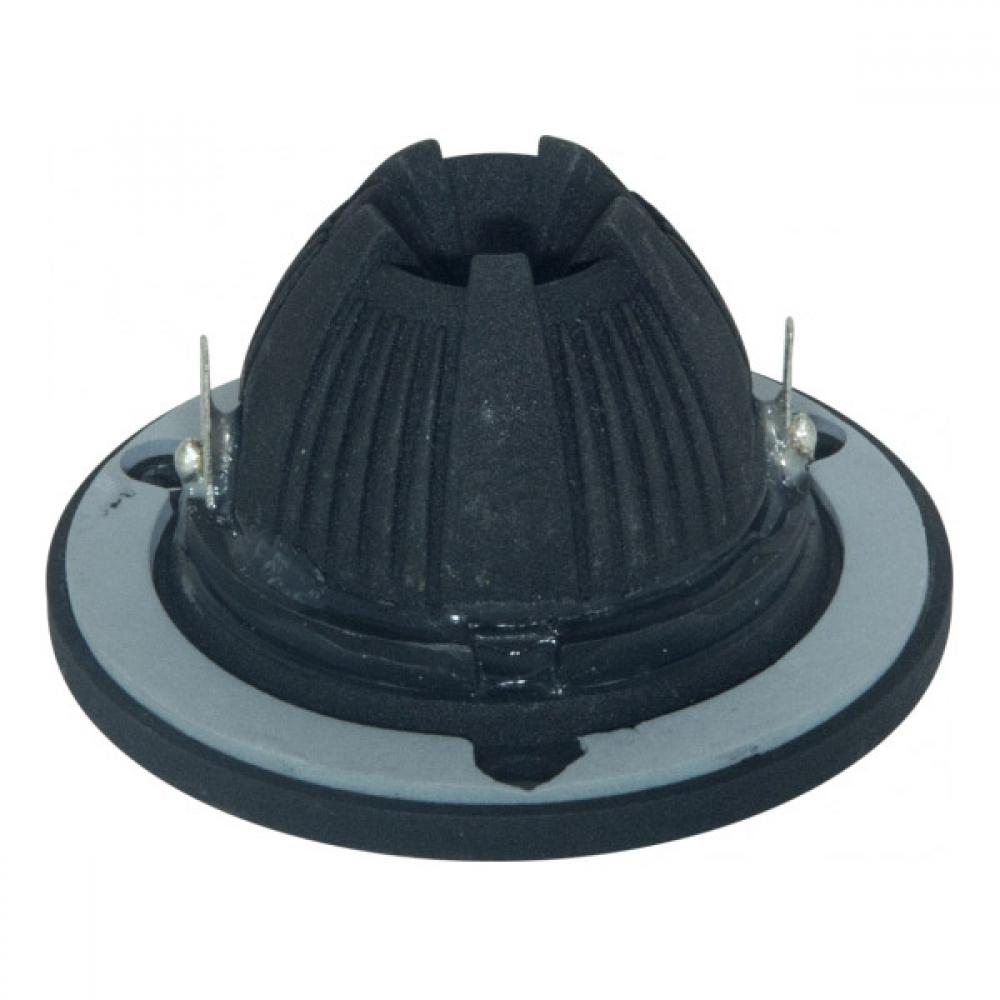

The 25 mm 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The tweeters in this family feature finite element analysis designed Neodymium-Iron-Boron magnet (NdFeB) motors, with copper caps for extended frequency response and reduced distortion. The aluminium rear chambers offer extended low frequency performance, while doubling as heat sinking. The butterfly supporting the tweeter diaphragm is made of a high temperature plastic, consistent with the products high temperature performance rating, and features supporting terminals. The dome material in this design is silk, and the design has been optimized for sound quality and clarity. Rounding out the design is an aluminium face plate and plastic grille, which offers protection for the tweeter diaphragm.

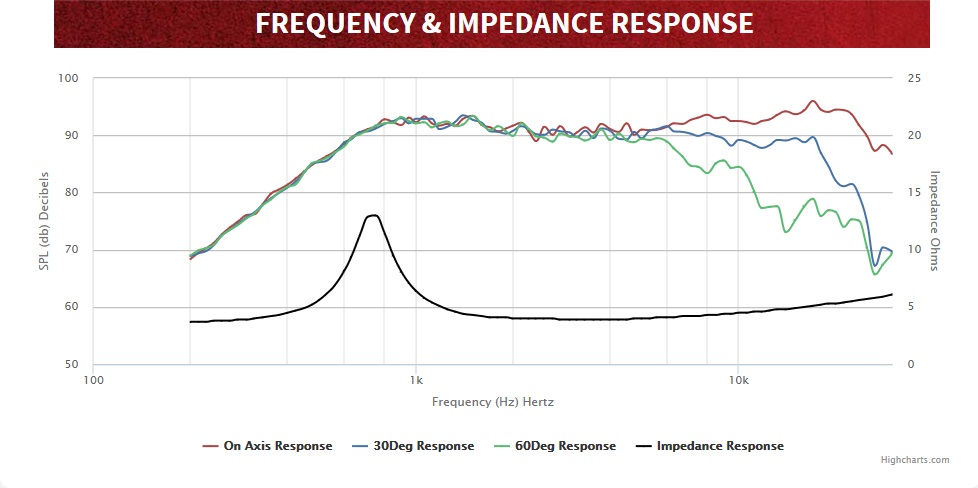

Specifications

Transducer Size     25 mm
DC Resistance     3.15 Ω ±5.0%
Resonant Frequency     732.86 Hz 15%
Half Space Sensitivity @ 2.83V     91.26 dB ±1.01
Sensitivity @ 1W/1m     88.1 dB ±1.01
Rated Noise Power (IEC 268-5 18.1)     80 W
Effective Piston Area     8 cm2
Moving Mass     0.4 g
Motor Force Factor     2.17 T•m
Voice Coil Inner Diameter     25.76 mm
Gap Height     2 mm
Maximum Linear Excursion     0.1 mm
Ferrofluid Type
Minimum Impedance     3.9 Ω ±7.5%
Voice Coil Inductance     0.01 mH
Mechanical Q Factor     4.41
Electrical Q Factor     1.12
Total Q Factor     0.89
Ratio     822.52 fs/Qts
Test Spectrum Bandwidth (1300-20000 Hz)     2kHz - 20kHz 12 dB/Oct
Energy Bandwidth Product ((1/Qes)•fs)
Suspension Compliance     130 um/N
Effective Cone Diameter     3.2 cm
Motor Efficiency Factor     1.5 (T•m2)/Ω
Voice Coil Former Material     ASV GSV
Transducer Mass     0.1 Kg
Equivalent Volume     0.01 L
