Vifa BC25TG-15/04

€20.64 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 7235213
Vifa BC25TG15-04 1" tweeters features a damped fabric dome for smooth frequency response... more
Product information "Vifa BC25TG-15/04"

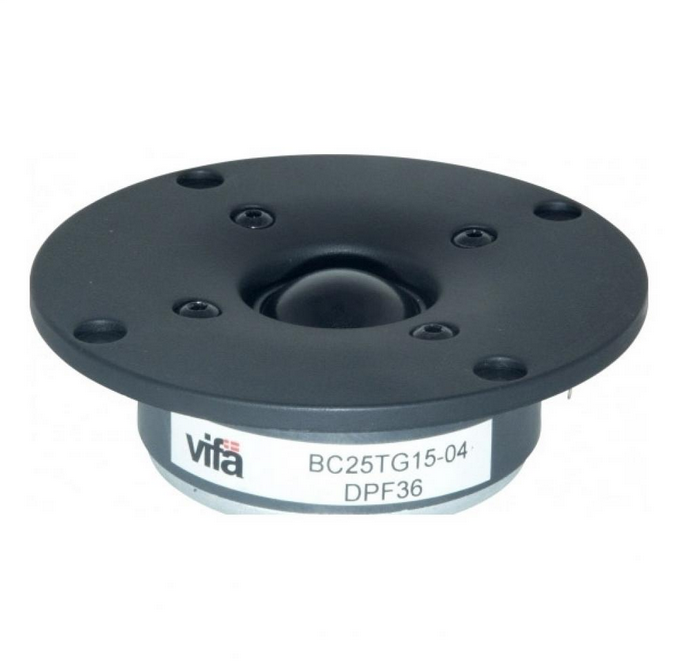

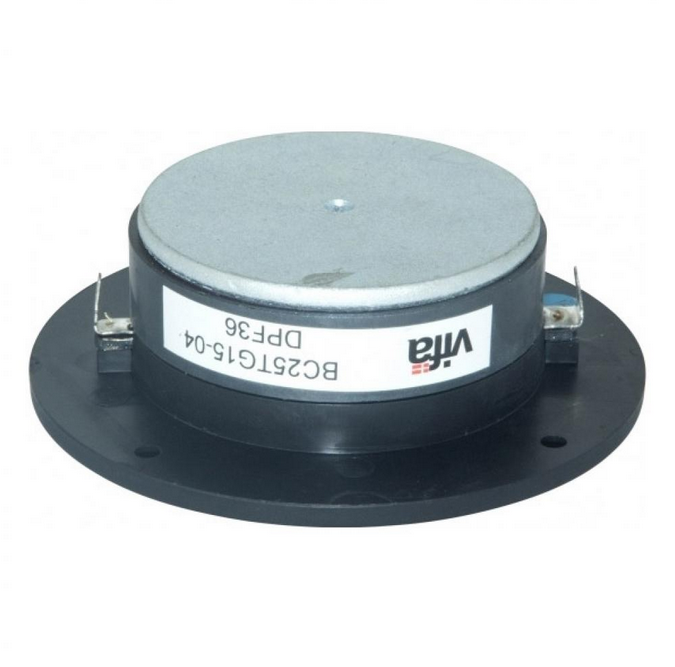

Vifa BC25TG15-04 1" tweeters features a damped fabric dome for smooth frequency response performance and ferrofluid in the gap of the ferrite magnet motor,providing enhanced cooling of the voice coil. BC tweeters come with a compact faceplate with recessed mounting holes,complete with sealing gasket which helps reduce vibration between baffle and driver.



Specifications

  • power handling (continuous/programme) = 50 W

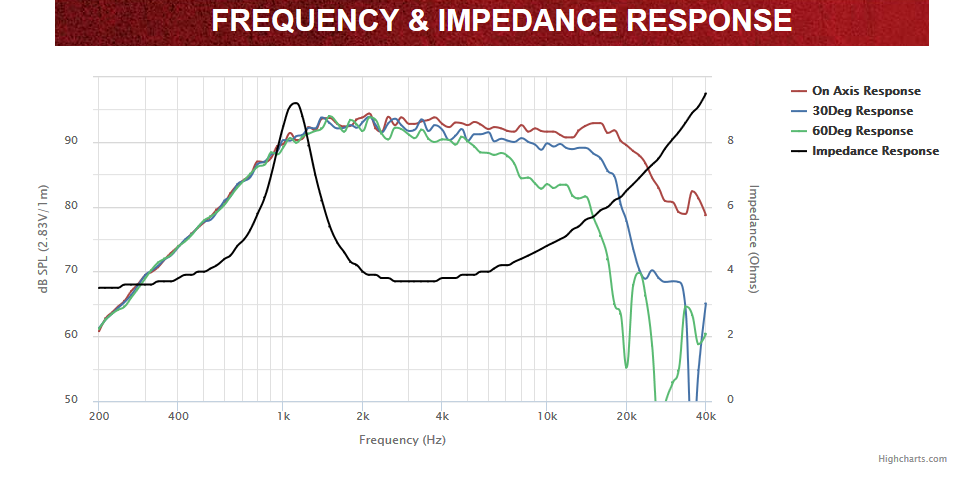

  • frequency range = 2000-22000 Hz
  • resonance frequency fs = 1128 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93,2 dB (2,83V; 1m)
  • DC resistance Re = 2,99 Ohm
  • force factor BL = 2,28 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 0,84 (Qms=2,54, Qes=1,26)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,6 mm

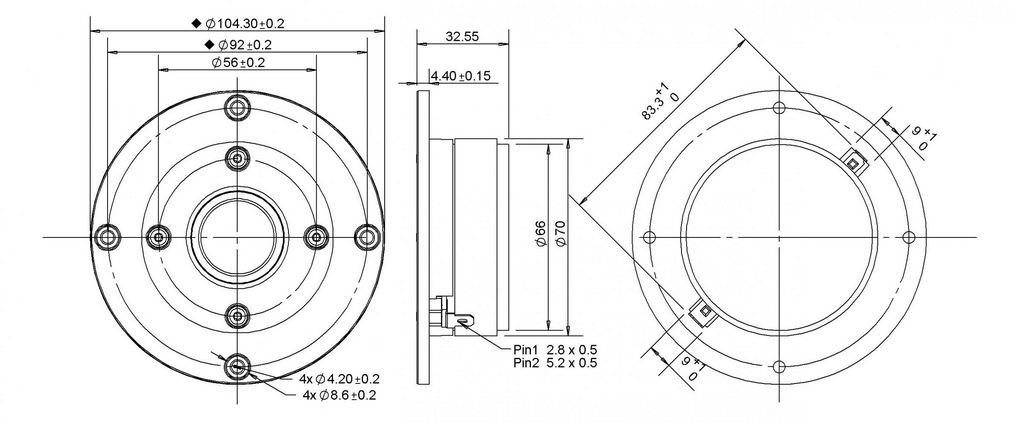

  • mounting diameter d = 70 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 32,55 mm
