Scan-Speak 26W/4534G00

€178.90 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7264534
Scanspeak 26W/4534G 10" Aluminum Cone Woofer 4 ohm The Discovery series offer traditional... more
Product information "Scan-Speak 26W/4534G00"

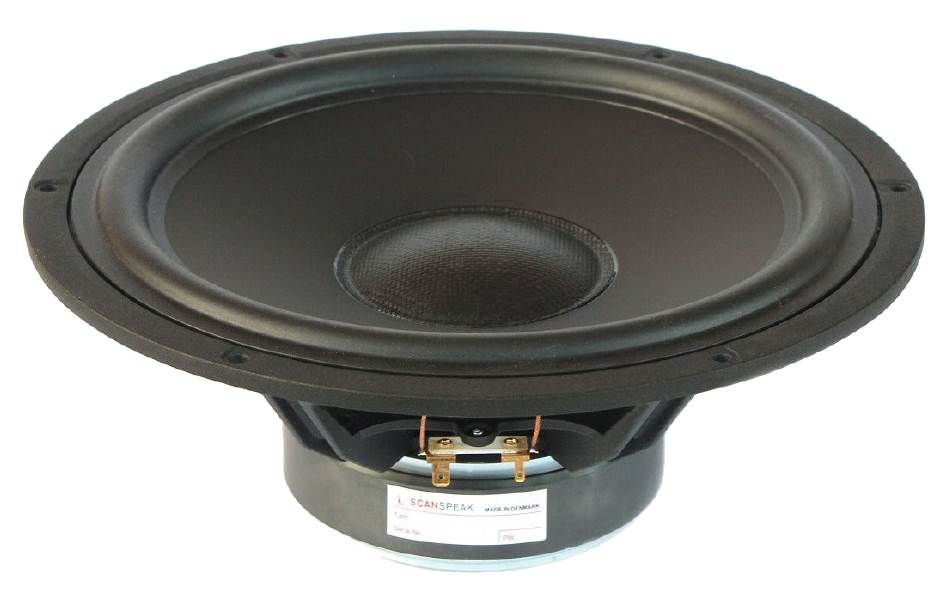

Scanspeak 26W/4534G 10" Aluminum Cone Woofer 4 ohm

The Discovery series offer traditional design, superior sound, a solid contruction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solutiuon with very good performance at a reasonable low price point!



Features

  • Black Anodized Alu Cone
  • Magnet System with Alu Ring
  • Low Resonance Freq. 23Hz
  • Coated Fibre Glass Dust Cap
  • Die Cast Alu Chassis vented below spider



Specifications

  • power handling (continuous/programme) = 90/175 W
  • frequency range = 20-1000 Hz
  • resonance frequency fs = 23 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,5 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • force factor BL = 8,8 N/A
  • voice coil inductance L = 0,7 mH
  • effective piston radiating area Sd = 350 cm2
  • effective mechanical mass incl. air load mms = 52 g
  • equivalent volume of compliance Vas = 156 l
  • total Q factor Qts = 0,36 (Qms=9,57, Qes=0,37)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm

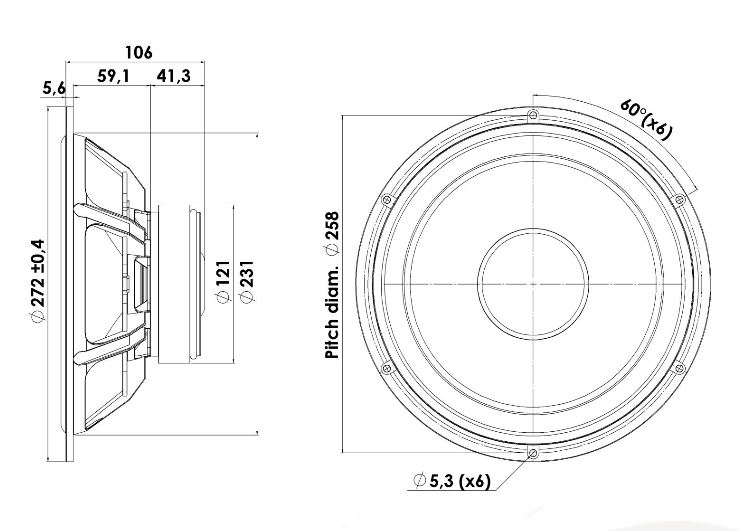

  • mounting diameter d = 231 mm
  • overall diameter d = 272 mm
  • mounting depth (not countersunk) t = 106 mm
