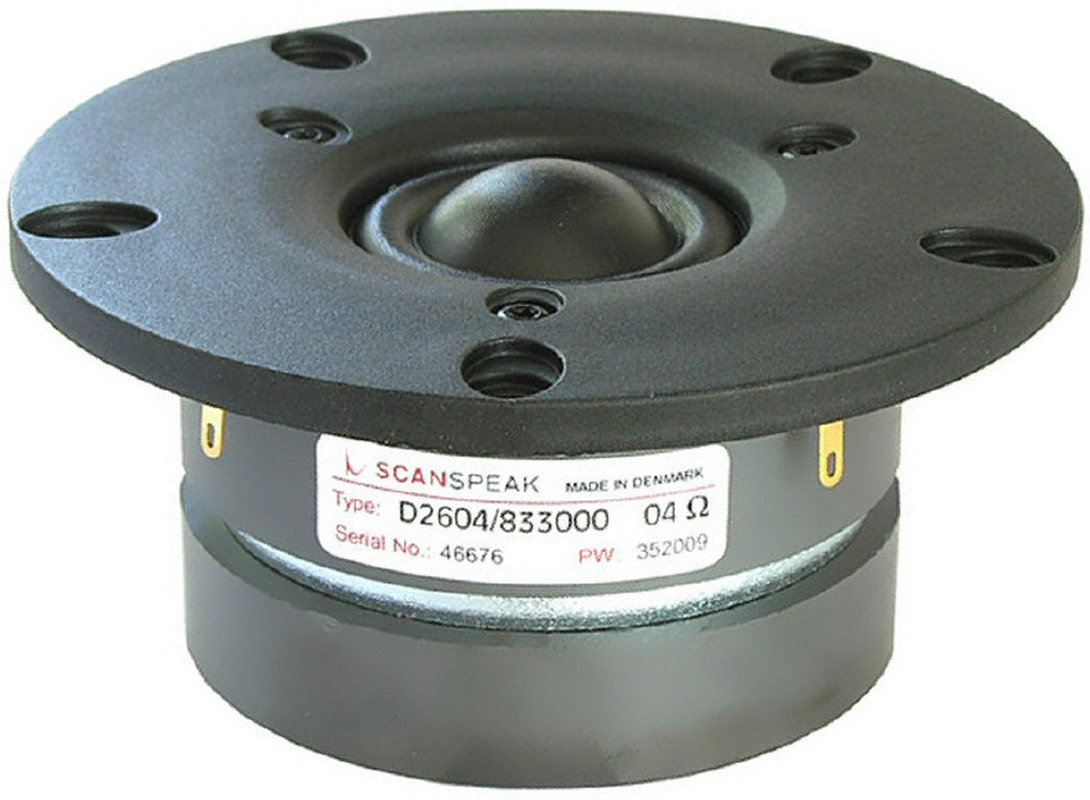

Scan-Speak D2604/8330.00

€44.97 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 7258330
The Scan-Speak D2604/833000 Discovery series offer traditional design, superior sound, a solid... more
Product information "Scan-Speak D2604/8330.00"

The Scan-Speak D2604/833000 Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!



  • Size (inches): 1
  • Fs (Hz): 475
  • Re (ohms): 2.8
  • Sensitivity (dB): 93
  • Qt: 0.55
  • VAS (ltr.): 0.02
  • Xmax ± (mm): 0.3



Specifications

  • power handling (continuous/programme) = 100 W

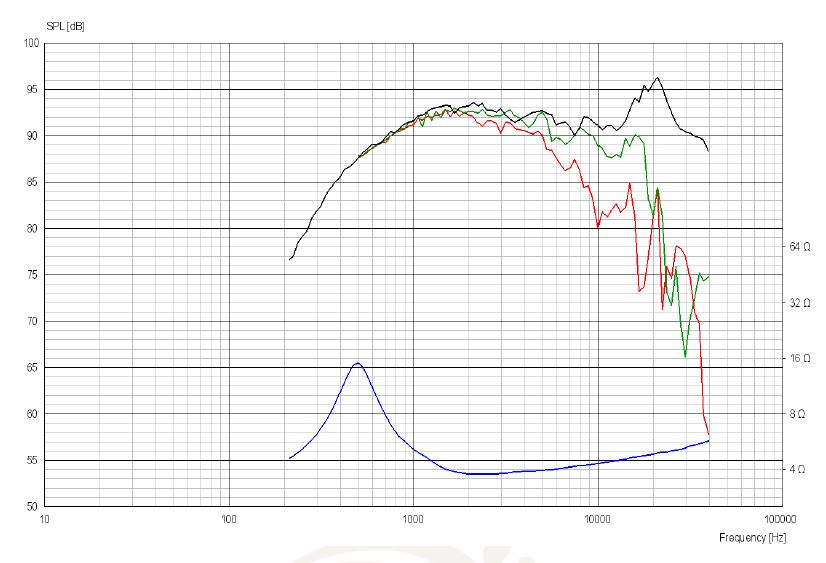

  • frequency range = 1000-30000 Hz
  • resonance frequency fs = 475 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 2,8 Ohm
  • force factor BL = 2,2 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 8 cm2
  • effective mechanical mass incl. air load mms = 0,42 g
  • equivalent volume of compliance Vas = 0,02 l
  • total Q factor Qts = 0,56 (Qms=2,55, Qes=0,71)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 0,3 mm

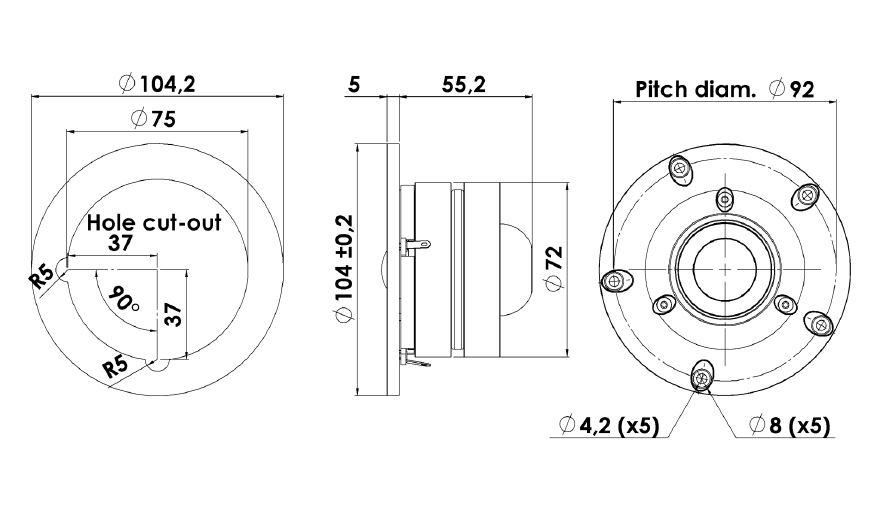

  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 60,2 mm
