HiVi RT1II

€112.80 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • hivi-rt1ii
film membranes, shielded Neodymium magnet systems and aluminum faceplates. Distinguishing... more
Product information "HiVi RT1II"

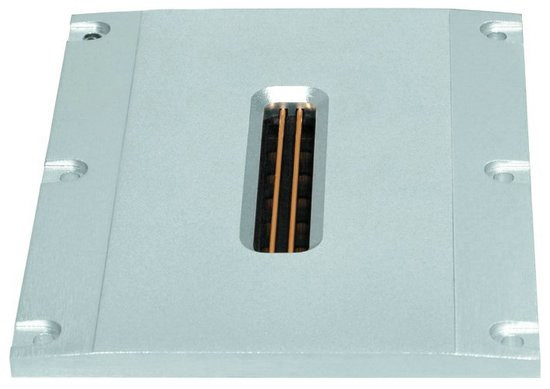

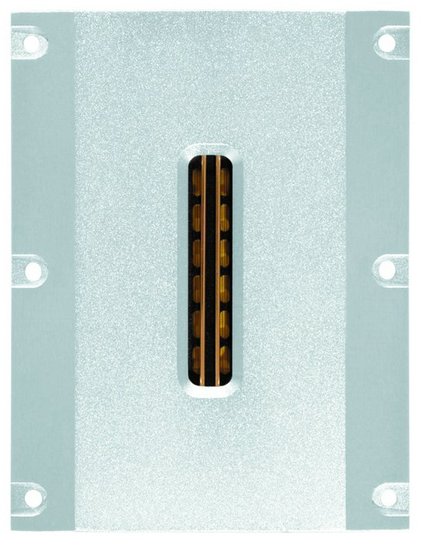

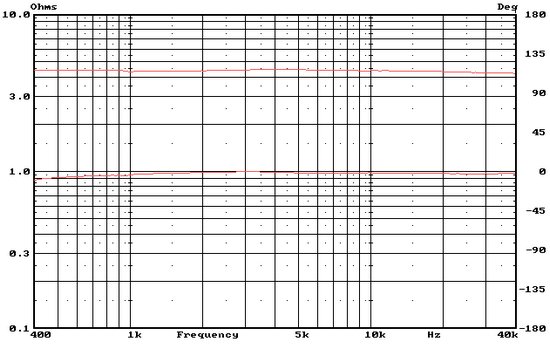

film membranes, shielded Neodymium magnet systems and aluminum faceplates. Distinguishing features are almost perfectly flat impedance with fantastic speed, resolution, and transient response.

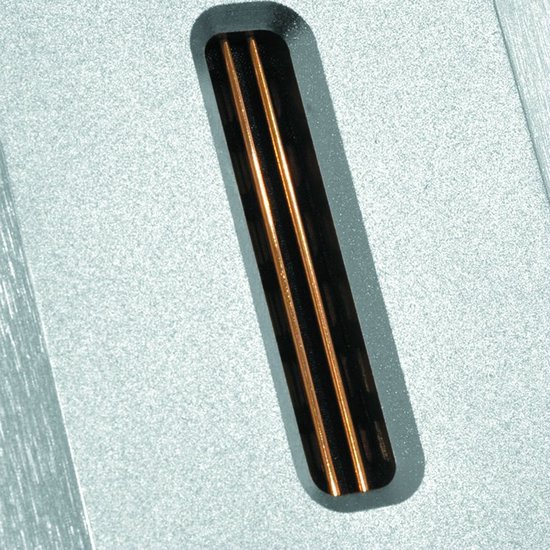

The conductors cover about 90% of the whole vibrating area. The membrane assembly is precisely placed between two rows of Neodymium bar magnets. It is also well suited for 3-way applications This tweeter is magnetically shielded and is an extremely flat driver. A larger membrane and radiating area, providing higher power handling and a substantially lower cut off frequency.

The large membrane is thermally attached to the cast aluminum faceplate providing cooling and dramatically increasing dynamic range. Harmonic distortion is only 0.7% (94dB SPL) and has 106dB the output of continuing sound pressure and 110 dB SPL minute peak response. The RT1ii is available with different faceplates. OEM Customer design for faceplate are welcome. RT1ii possesses unsurpassed clarity, transparency, and the ability to deliver every tiniest musical detail. Since RT8ii has exceptional ability to reveal the dynamics of instruments and sonic resolution, it is recommended to match it with drivers having similar properties in order to maximize the overall integrity of a speaker system.



Specifications

General Data
Nominal Power Handling (Pnom)(W) 15
Max Power Handling (Pmax)(W) 30
Sensitivity (2.83v/1m)(dB) 93
Weight (M)(Kg) 0.3
Electrical Data
Nominal Impedance (Z)(Ω) 5
DC (Re)(Ω) 4.3-5.8
Voice Coil and Magnet Parameters
Magnet Former Neodymium
