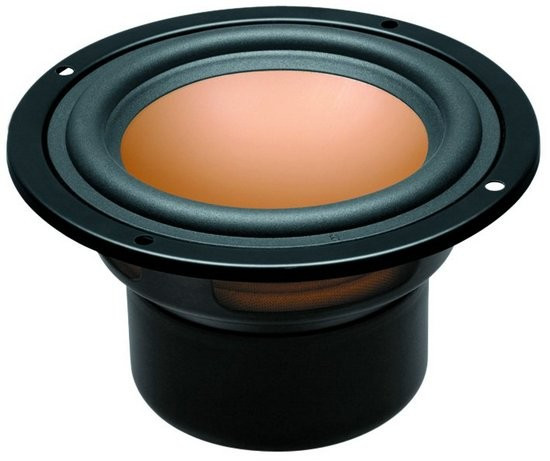

HiVi M4N

€31.45 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • hivi-m4n
-Advanced alloy (magnesium and aluminum) cone, coated with special damping material -Optimum... more
Product information "HiVi M4N"

-Advanced alloy (magnesium and aluminum) cone, coated with special damping material
-Optimum recovery CONEX supporting system, having very good stiffness and dynamic stability, improving the acoustic features of the speakers.
-High power handling, heat-resistant Kapton? Voice coil former and heat-resistant CCAW voice coil wire
-Finite Element Analysis for shielded magnetic system with long-throw linear excursion design, dynamic and low distortion.
-Finite Element Analysis for high rigid SPCC frame, prevents the parasitic structural resonances
-Using leading technology of Small/Thiele parameters
-Suitable for midrange, surround speakers in a home theatre system, and also suitable for computer multimedia speakers



Specifications

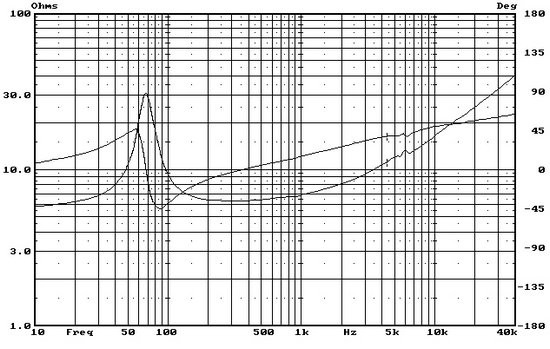

Nominal Impedance (Z)(Ω) : 8
Resonance Frequency (Fs)(Hz) : 69
Nominal Power Handling (Pnom)(W) : 15
Max Power Handing (Pmax)(W) : 30

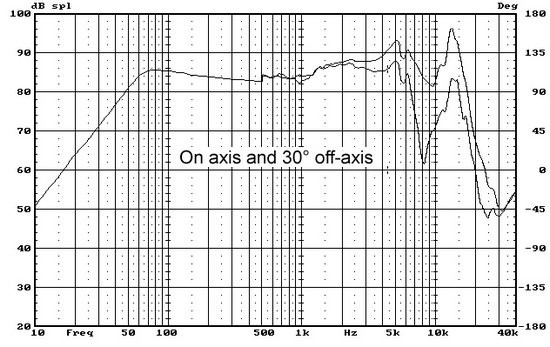

Sensitivity (2.83v/1m)(dB) : 82
Weight (M)(Kg) : 0.60
VC Diameter (mm) : 20
DC (Re)(Ω) : 6.5
VC Length (H)(mm) : 9.0
VC Former : CCAV
VC Frame : Kapton
Magnet System : Shielded
Magnet Former : Ferrite
Force Factor (BL)(N/A) : 3.1
Gap Height (He)(mm) : 3.0
Linear Excursion (Xmax)(mm) : 3.0
Suspension Compliance (Cms)(uM/N) : 1080
Mechanical Q (Qms) : 5.39
Electrical Q (Qes) : 1.35
Total Q (Qts) : 1.08
Moving Mass (Mms)(g) : 4.8
Effective Piston Area (Sd)(m2) : 0.0053
Equivalent Air Volume (Vas)(L) : 4.3
Cabinet Type : Sealed
Recommended Box Volume(Vb)(L) : 4
-3dB Cut-Off Frequency(F3)(Hz) : 70
