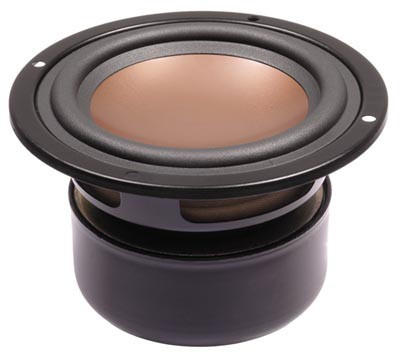

- Order number: hivi-b4n
-Advanced alloy (magnesium/aluminum) cone, coated with special damping material, and anodized, which can restrain the ring of the metal effectively, sound is natural and smooth.
-Optimum recovery CONEX supporting system, having very good stiffness and dynamic stability, improving the sonic features of the speakers.
-High power handling, heat-resistant Kapton? Voice coil former and heat-resistant SV voice coil wire
-Finite Element Analysis for shielded magnetic system with long-throw linear excursion design, enlarging dynamic range, achieving low distortion degree
-Finite Element Analysis for extremely rigid SPCC frame, prevents the parasitic structural resonances
-Using leading technology of Small/Thiele parameters
-Suitable for midrange, surround speaker in a home theatre system, and also suitable for computer multimedia speakers
Specifications
| Nominal Impedance (Z)(Ω) : | 8 | |
| Resonance Frequency (Fs)(Hz) : | 56 | |
| Nominal Power Handling (Pnom)(W) : | 25 | |
| Sensitivity (2.83v/1m)(dB) : | 85 | |
| Weight (M)(Kg) : | 0.9 | |
| VC Diameter (mm) : | 25 SV | |
| DC (Re)(Ω) : | 6.5 | |
| VC Length (H)(mm) : | 10.4 | |
| VC Former : | Kapton | |
| VC Layers : | 2 | |
| Magnet System : | Shielded Ferrite | |
| Force Factor (BL)(N/A) : | 5.1 | |
| Gap Height (He)(mm) : | 4.0 | |
| Linear Excursion (Xmax)(mm) : | 3.2 | |
| Suspension Compliance (Cms)(uM/N) : | 1114.1 | |
| Mechanical Q (Qms) : | 3.91 | |
| Electrical Q (Qes) : | 0.63 | |
| Total Q (Qts) : | 0.52 | |
| Moving Mass (Mms)(g) : | 6.8 | |
| Effective Piston Area (Sd)(m2) : | 0.0053 | |
| Equivalent Air Volume (Vas)(L) : | 4.5 | |
| Cabinet Type : | Vented | |
| Recommended Box Volume(Vb)(L) : | 5 | |
| Tuning Frequency(Fb)(Hz) : | 50 | |
| -3dB Cut-Off Frequency(F3)(Hz) : | 50 | |
