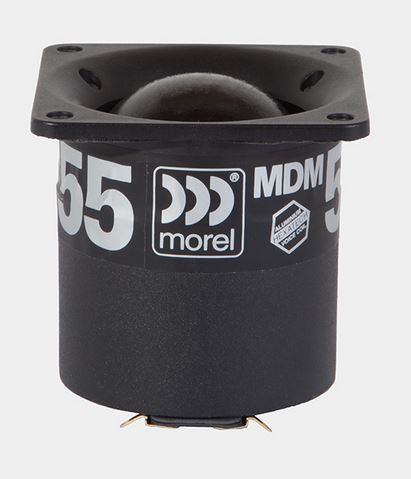

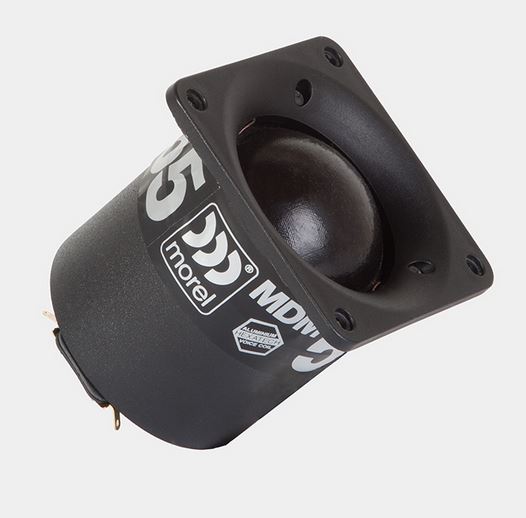

Morel MDM 55

€98.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1381506
No compromise 55mm treated soft dome midrange designed for high end multiple speaker systems. It... more
Product information "Morel MDM 55"

No compromise 55mm treated soft dome midrange designed for high end multiple speaker systems. It employs a powerful neodymium magnet enabling this unit to be both compact and ultra lightweight. Features Hexatech aluminum voice coil technology, rear chamber loading, gold plated terminals. This fine midrange retains the natural "warmth" and "body" of sounds.



Features

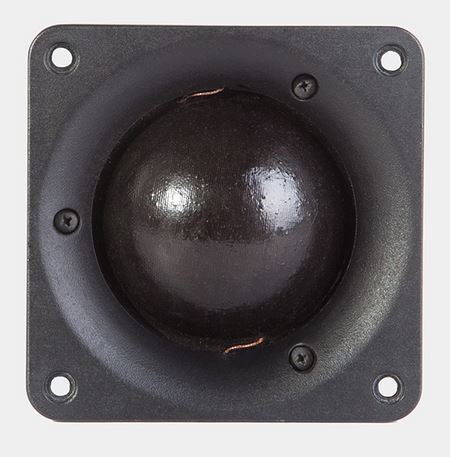

  • 2.1″ Acuflex™ hand coated soft dome
  • 2.1″ Large Hexatech™ Aluminum voice coil
  • Internally damped, Aluminum rear chamber
  • Wide range linear performance
  • Low resonance point
  • High power handling



Specifications

  • power handling (continuous/programme) = 200 W

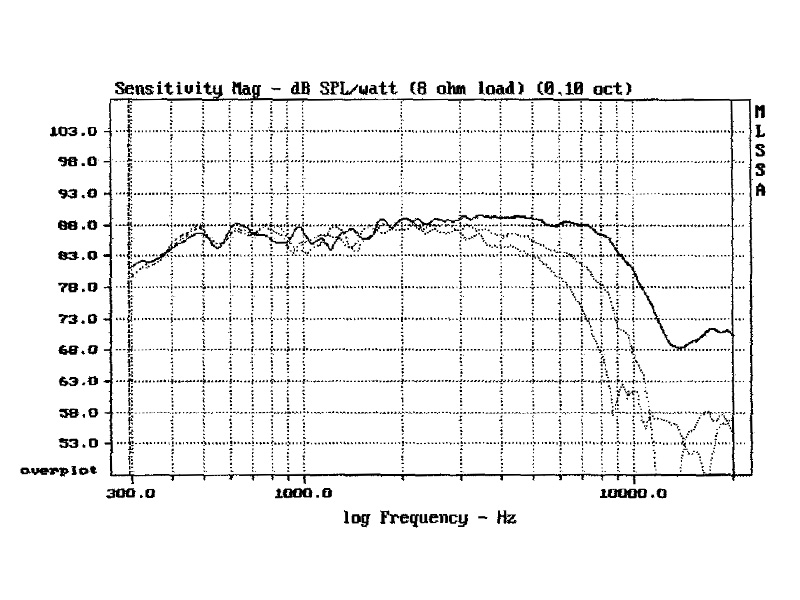

  • frequency range = 500-6000 Hz
  • resonance frequency fs = 380 Hz

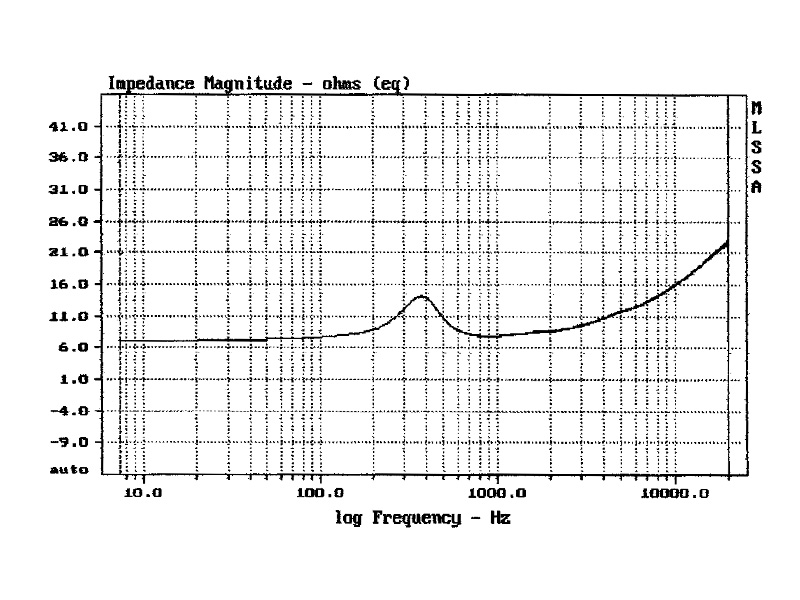

  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 0,19 mH
  • effective piston radiating area Sd = 28 cm2
  • effective mechanical mass incl. air load mms = 2,8 g
  • total Q factor Qts = 0,69 (Qms=1,13, Qes=1,75)
  • voice coil diameter = 54 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm

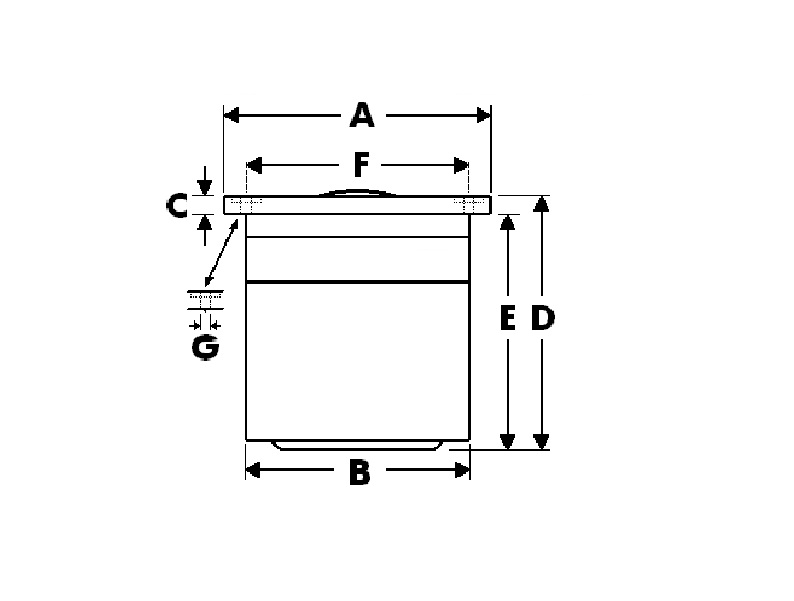

  • mounting diameter d = 75 mm
  • overall diameter d = 87x87 mm
  • mounting depth (not countersunk) t = 84 mm
