Tangband W3-871B

€28.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • tbW3-871B
The Tangband W3-871B fullrange features a black cosmetic stamped steel frame, silver coated... more
Product information "Tangband W3-871B"

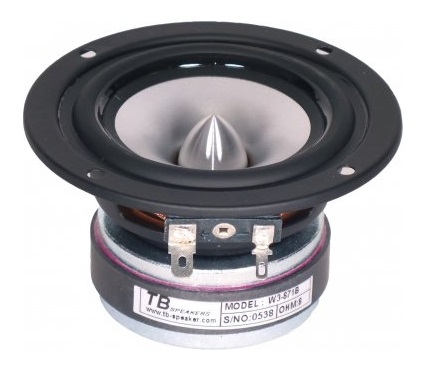

The Tangband W3-871B fullrange features a black cosmetic stamped steel frame, silver coated paper cone, rubber surround, and solid aluminum phase plug. Renowned as one of the smoothest 3" full-range drivers on the market.



Specifications:

  • power handling (continuous/programme) = 15/30 W

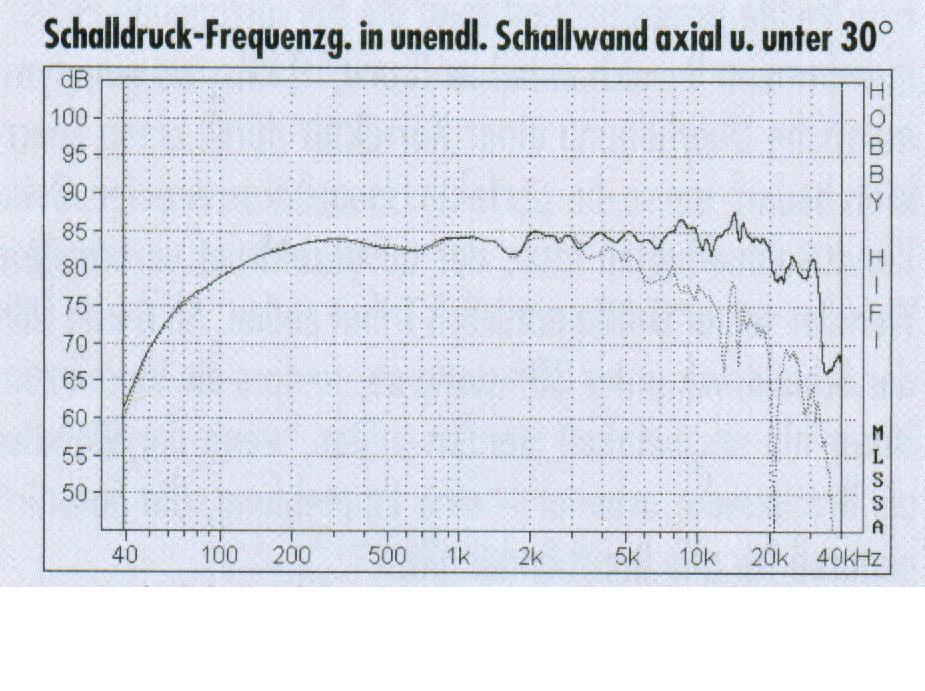

  • frequency range = 110-20000 Hz
  • resonance frequency fs = 110 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 3,53 N/A
  • voice coil inductance L = 0,29 mH
  • effective piston radiating area Sd = 32 cm2
  • effective mechanical mass incl. air load mms = 1,71 g
  • equivalent volume of compliance Vas = 1,66 l
  • total Q factor Qts = 0,59 (Qms=6,57, Qes=0,65)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm

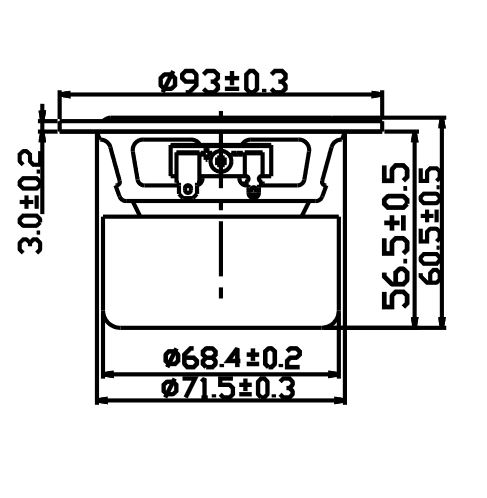

  • mounting diameter d = 72 mm
  • overall diameter d = 93 mm
  • mounting depth (not countersunk) t = 56,5 mm
