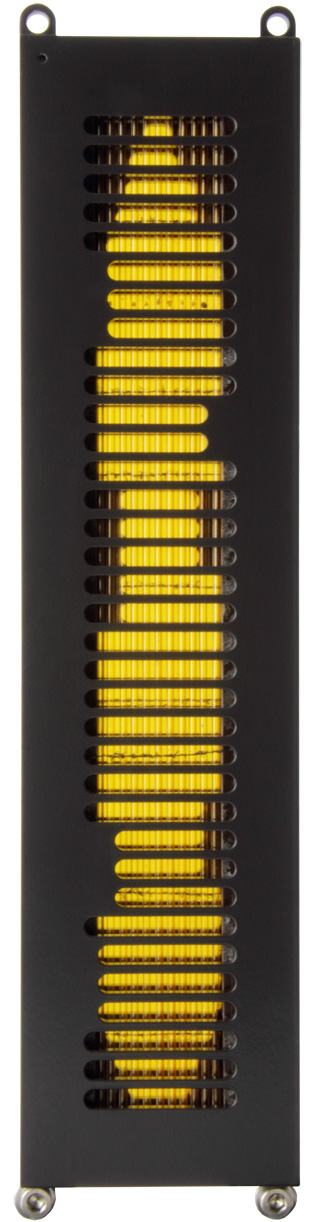

Mundorf AMT27D1.1

Mundorf AMT 27D1.1

Free-standing Dipole. With a resonance linearization network a crossover frequency of 1.8kHz is possible. The parallel connection of three AMT's one above the other allows the construction of a 'living room line array'.

• No baffle required

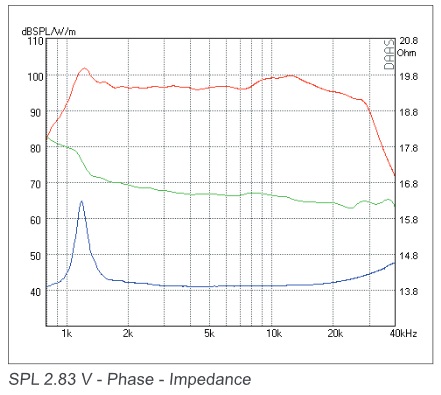

• Very flat frequency response
• 14 Ohm, 97dB
• Swing-out behaviour optimized for dipole use

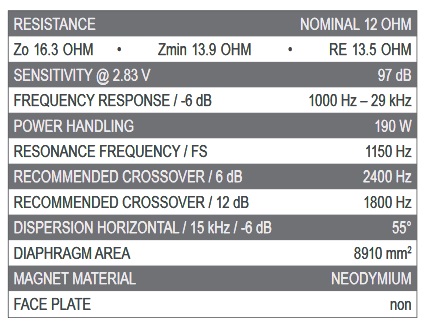

Specifications

• power handling (continuous/programme) = 190 W
• frequency range = 1000-29000 Hz
• resonance frequency fs = 1150 Hz
• impedance R = 12 Ohm
• sound pressure level SPL = 97 dB (2,83V; 1m)
• DC resistance Re = 13,5 Ohm
• effective piston radiating area Sd = 891 cm²

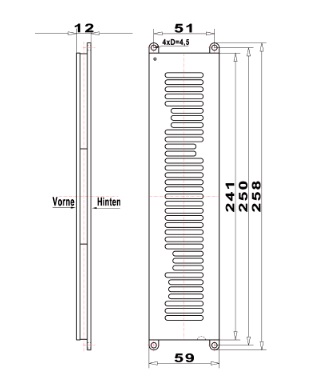

• overall diameter d = 59x258 mm
